Test 9: Fuel Gauge Does Not Work Properly

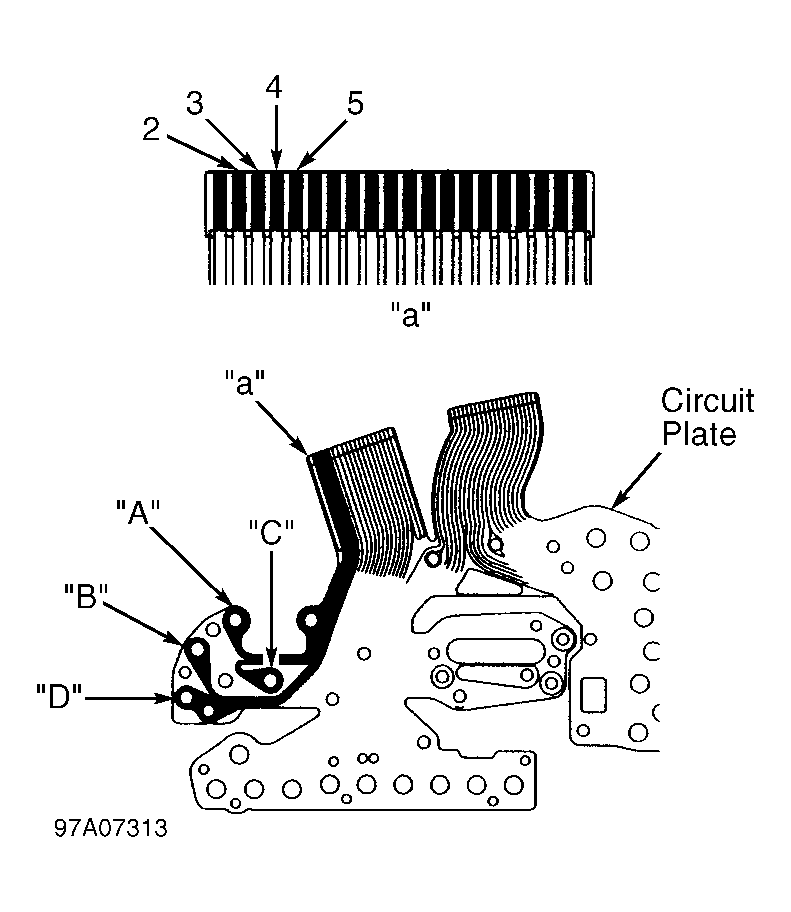

Check sending unit. See FUEL GAUGE under COMPONENT TESTS . Replace as needed. Check gauge. See FUEL GAUGE under COMPONENT TESTS . Replace as needed. Remove power source unit. Check continuity of instrument panel printed circuit. See Fig 1. Continuity should exist between A and a2, B and a4, C and a3, D and a5. If continuity is okay, replace power source unit. If continuity is not as specified, replace instrument panel printed circuit.
