Rear Control Assembly

REMOVAL

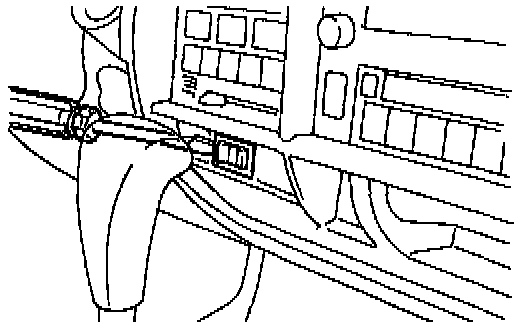

REMOVE REAR HEATER SWITCH
Using a screwdriver, pull out the switch then disconnect the connector.

REMOVAL HINT: Tape the screwdriver tip before use.

INSTALLATION
Installation is in the reverse order of removal
