Description & Operation

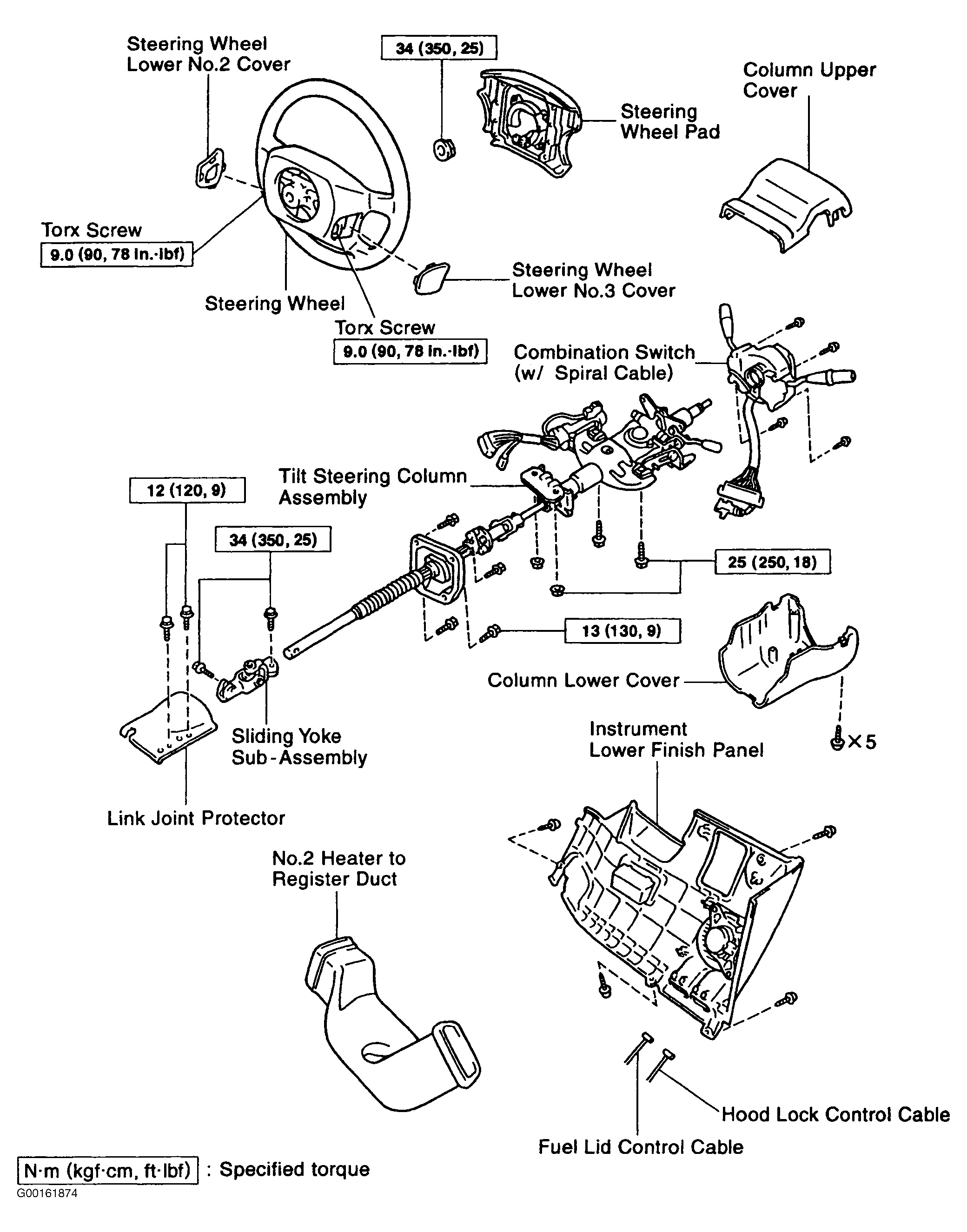

Fig 1: Exploded View Of Steering Column (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Steering Column (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
