Disassembly and Assembly

COMPONENTS FOR DISASSEMBLY AND ASSEMBLY

DISTRIBUTOR DISASSEMBLY

1. REMOVE HEAT INSULATOR
Remove the 3 screws and heat insulator.
2. REMOVE DISTRIBUTOR CAP
Loosen the 3 bolts and remove the distributor cap and O-ring.

ASSEMBLY HINT: Use a new O-ring.





3. REMOVE ROTOR
Remove the 2 screws and rotor.

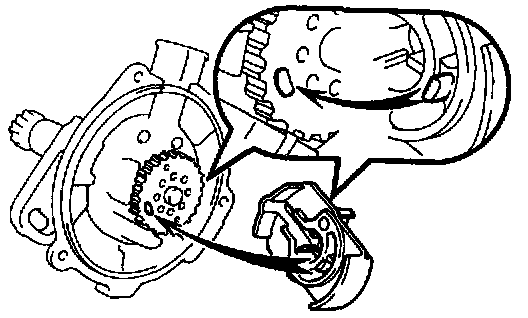

ASSEMBLY HINT: Align the hollow of the signal rotor with the protrusion of the rotor.

DISTRIBUTOR ASSEMBLY

ASSEMBLY HINT: Assembly is in the reverse order of disassembly.
