Memory Positioning Switch: Testing and Inspection

Seat Memory Switch

CIRCUIT DESCRIPTION
Seat memory switch send memory and return signals to the seat position control ECU.





WIRING DIAGRAM

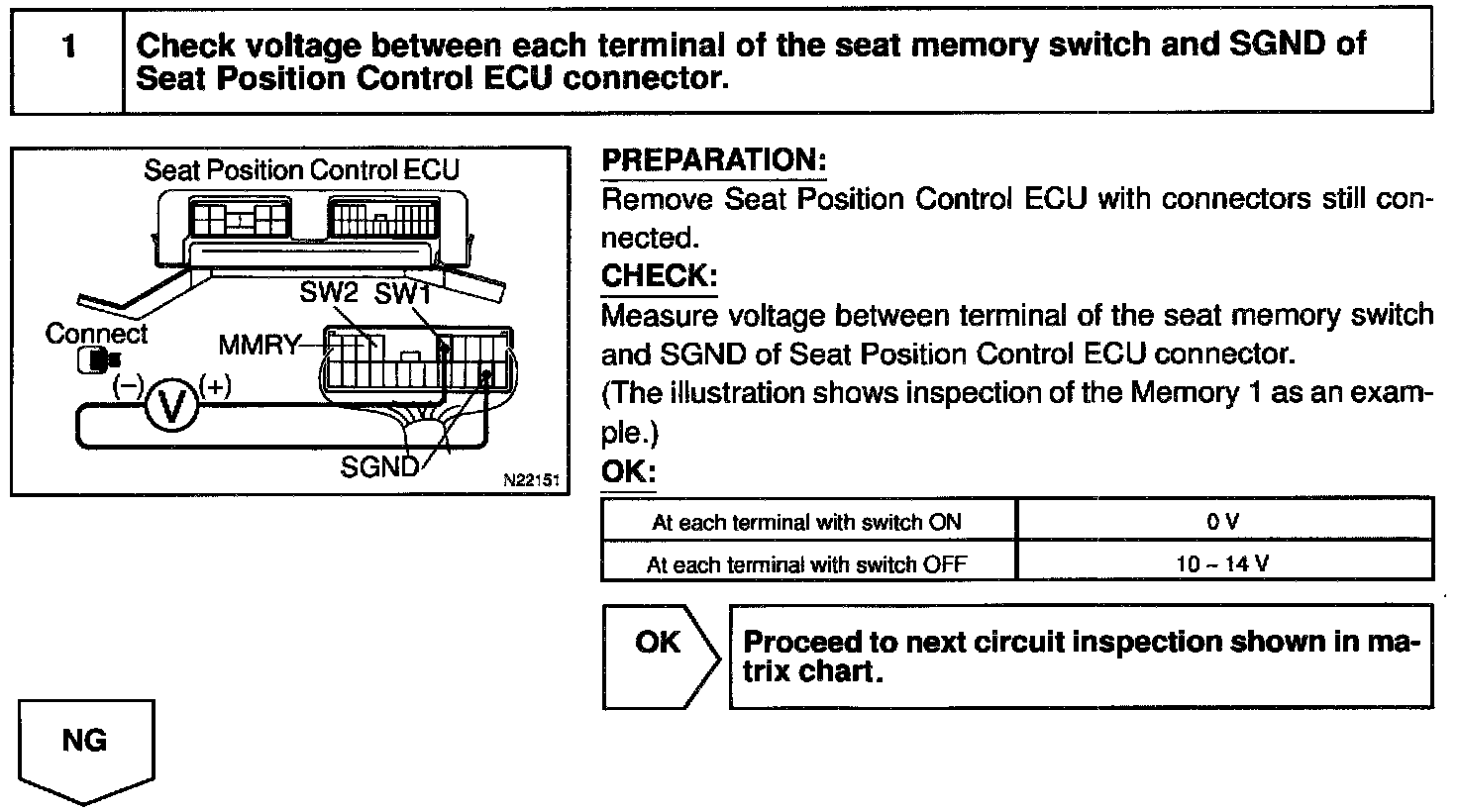

Step 1:

Step 2:

Step 3:

INSPECTION PROCEDURE
