Power Seat Control Module: Testing and Inspection

ECU Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power for ECU operation and is also the power source for the sensor.

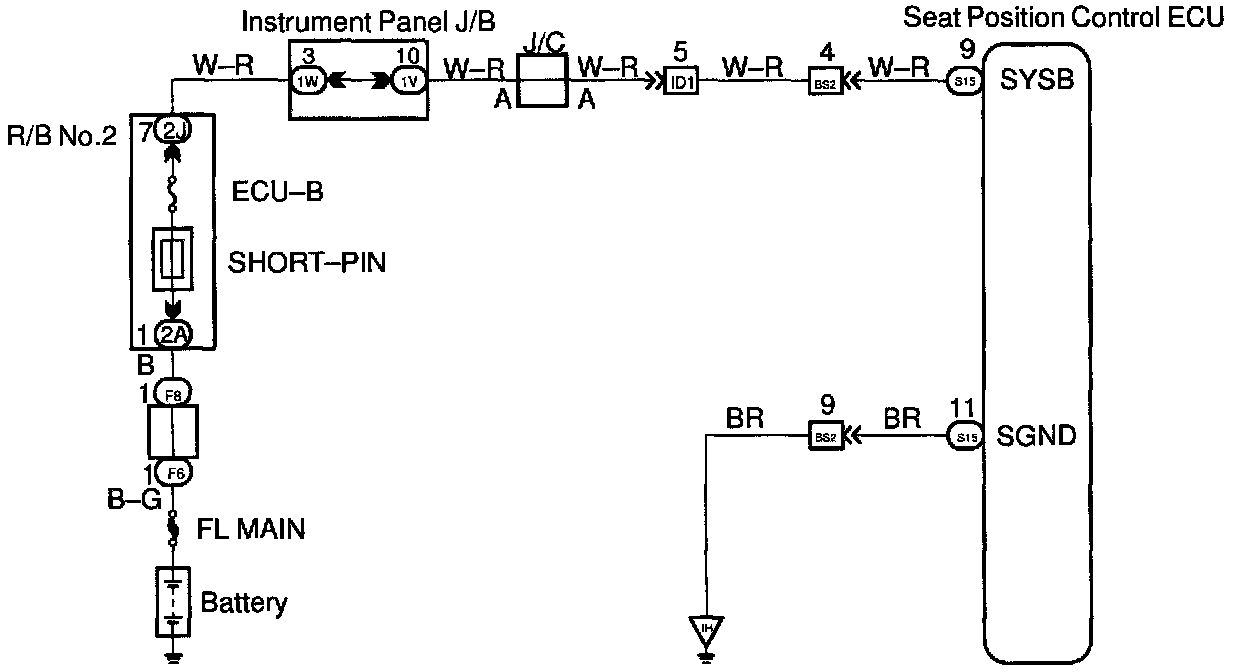

WIRING DIAGRAM

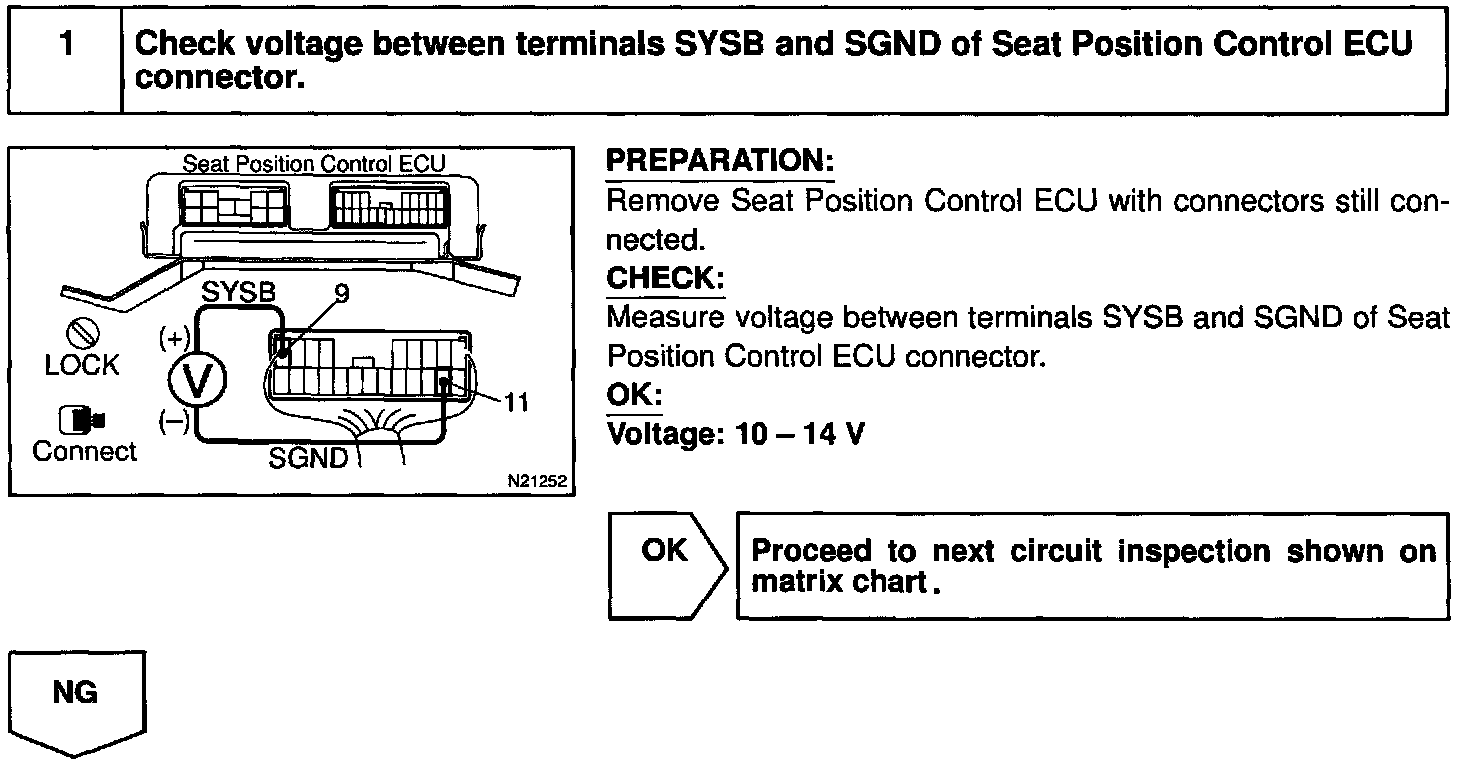

Step 1:

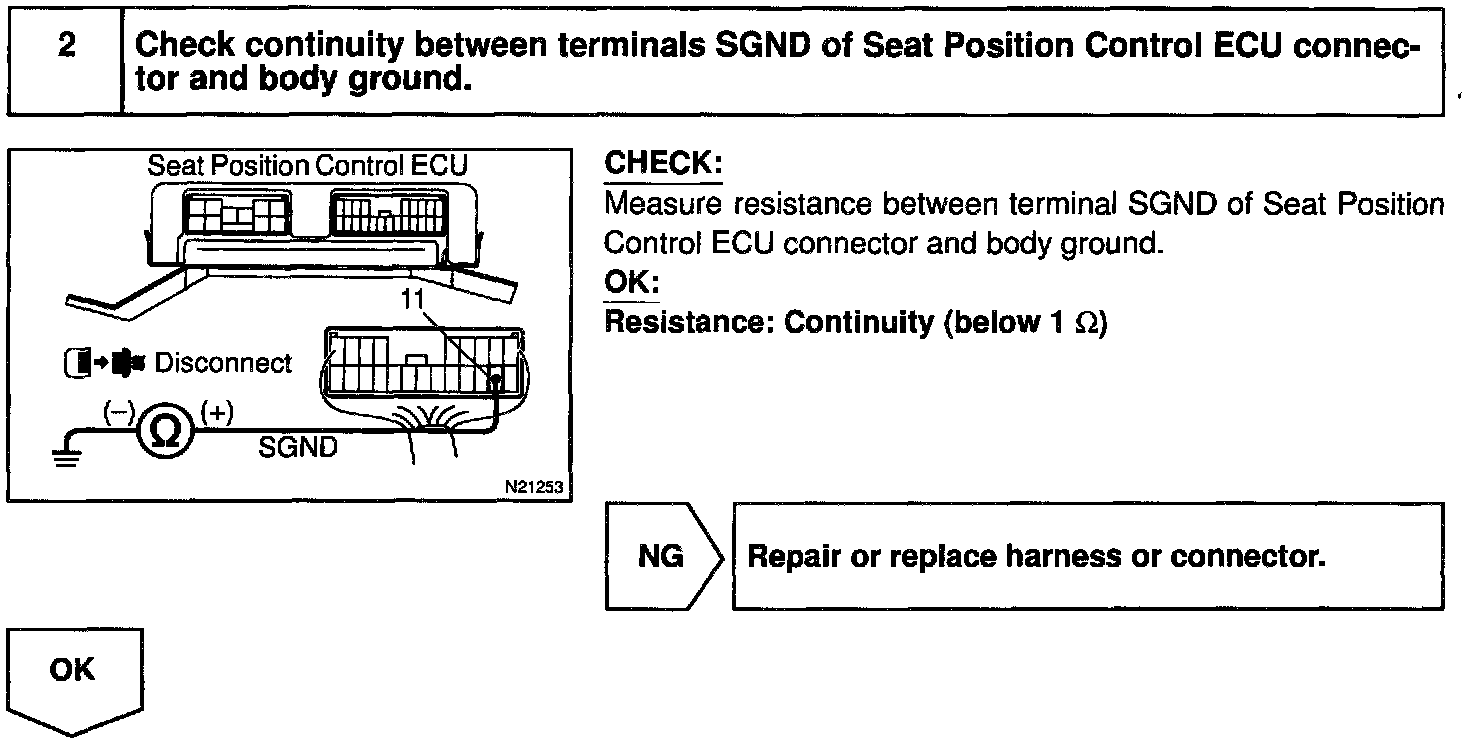

Step 2:

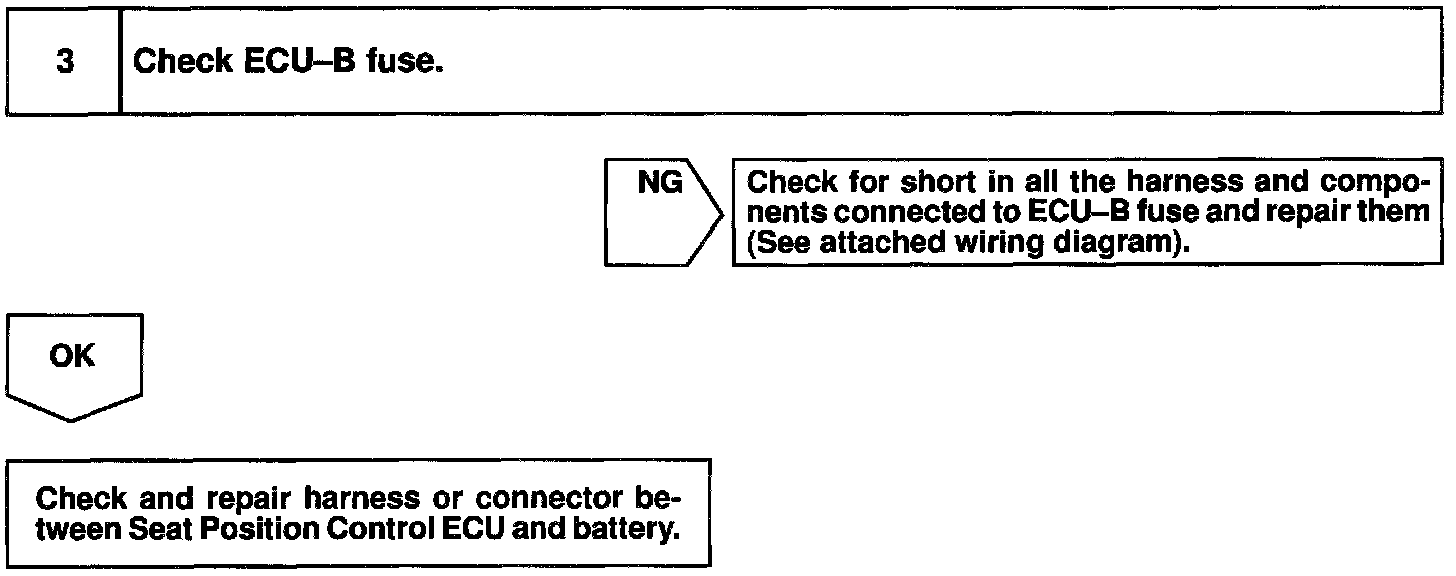

Step 3:

INSPECTION PROCEDURE
