Control Switch Circuit (Cruise Control Switch)

DTC 32 Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION
This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.





DETECTING CONDITION





WIRING DIAGRAM

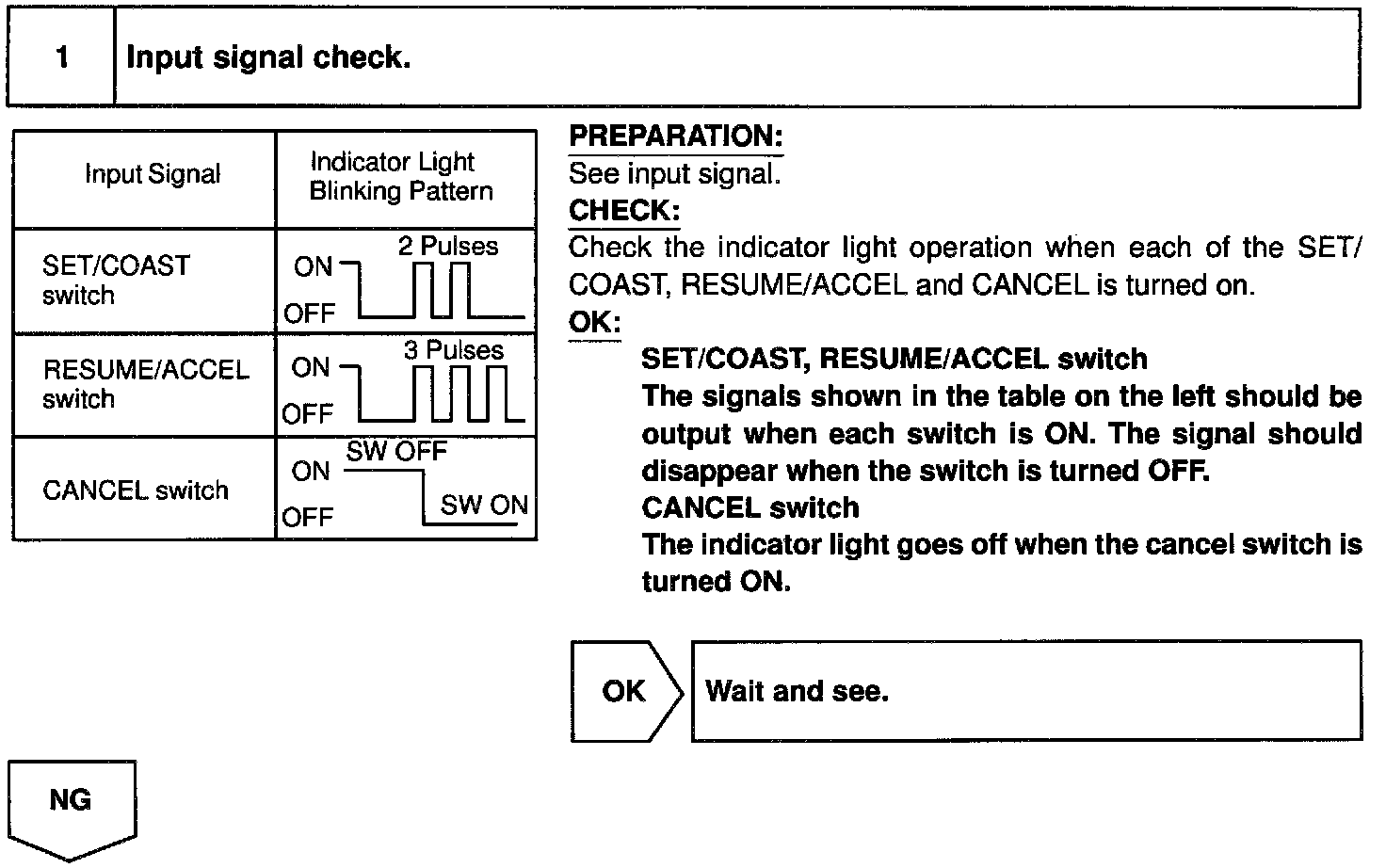

Step 1:

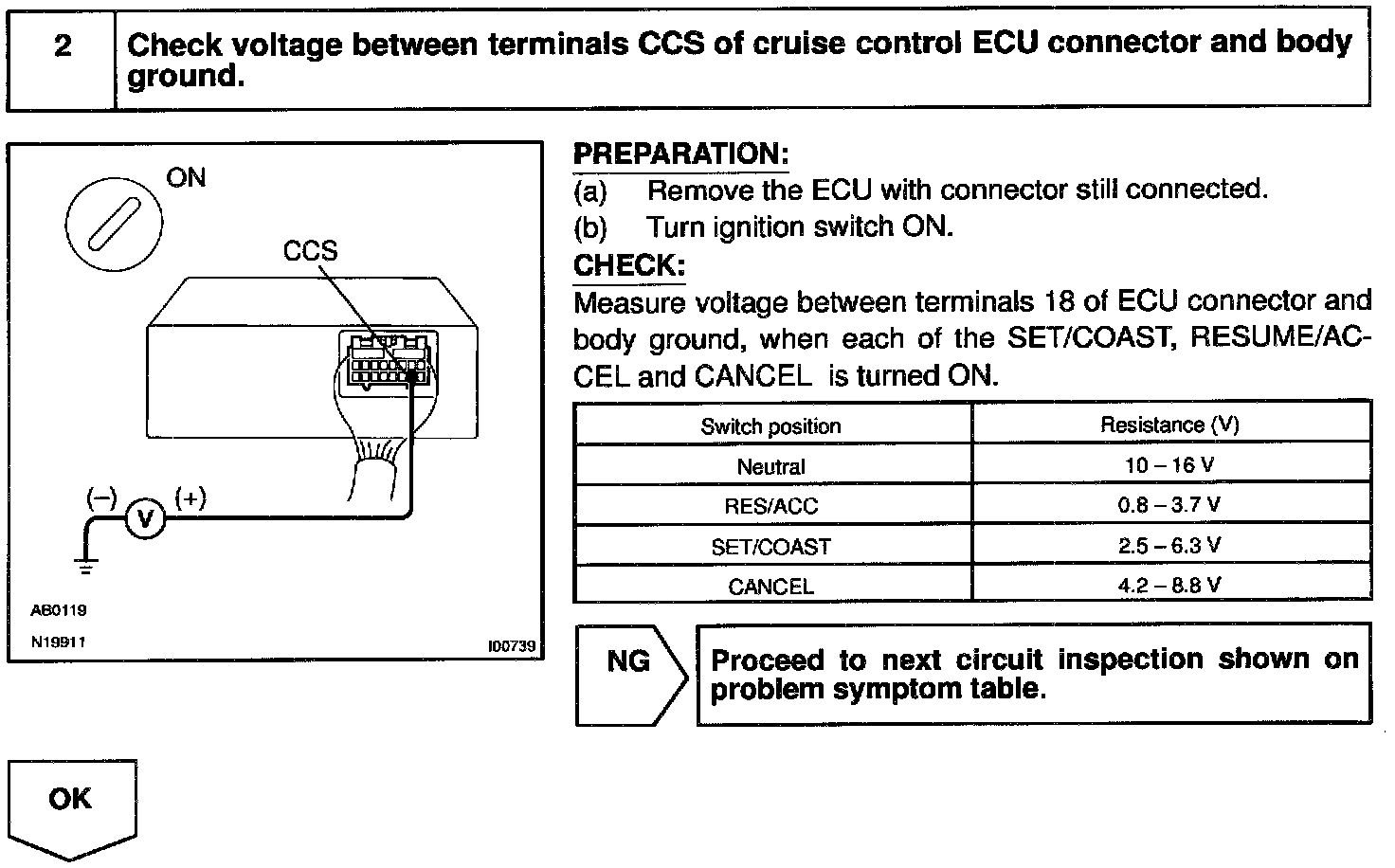

Step 2:

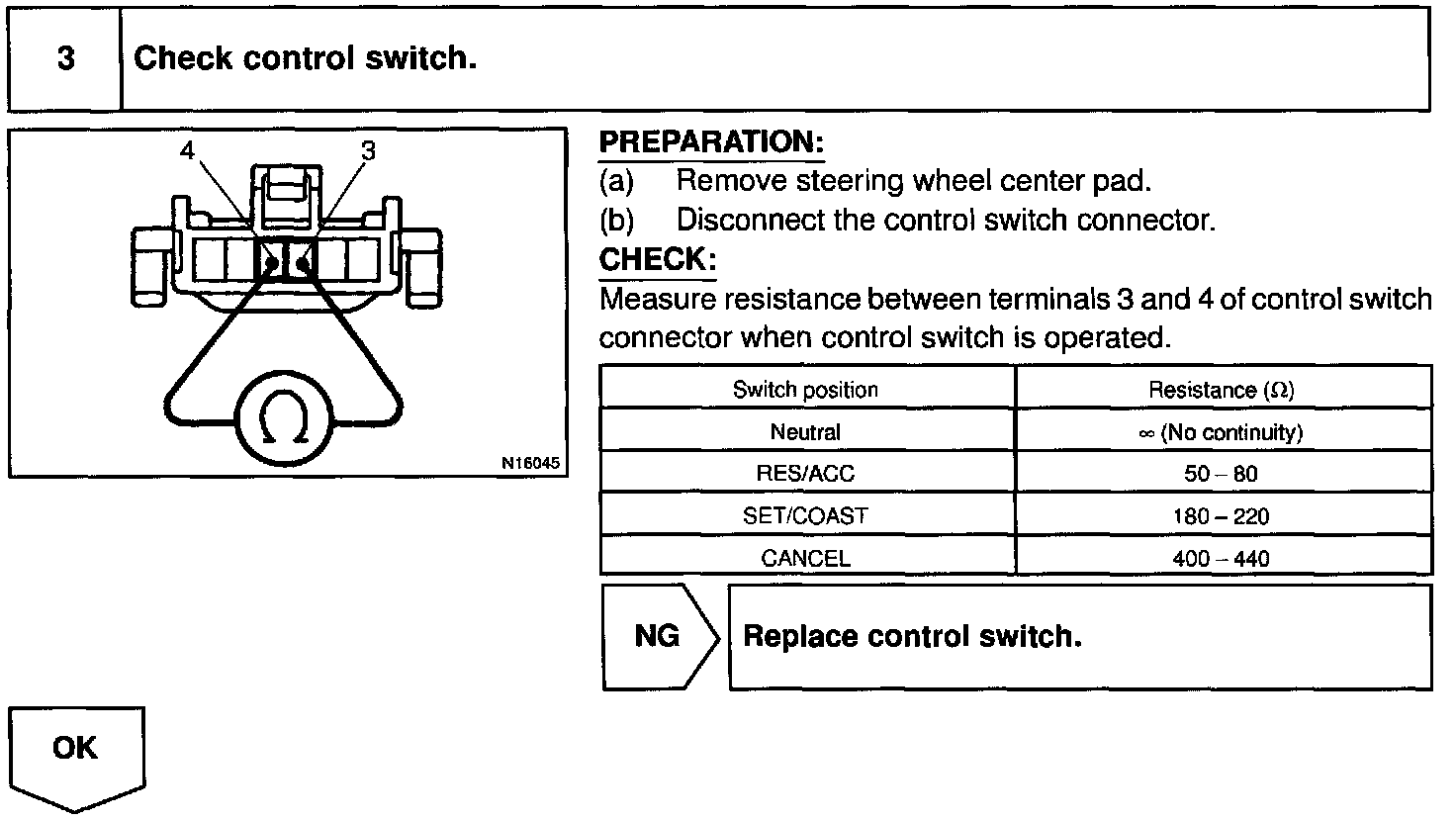

Step 3:

Step 4:

Step 5:

INSPECTION PROCEDURE
