Oil Pump, Engine

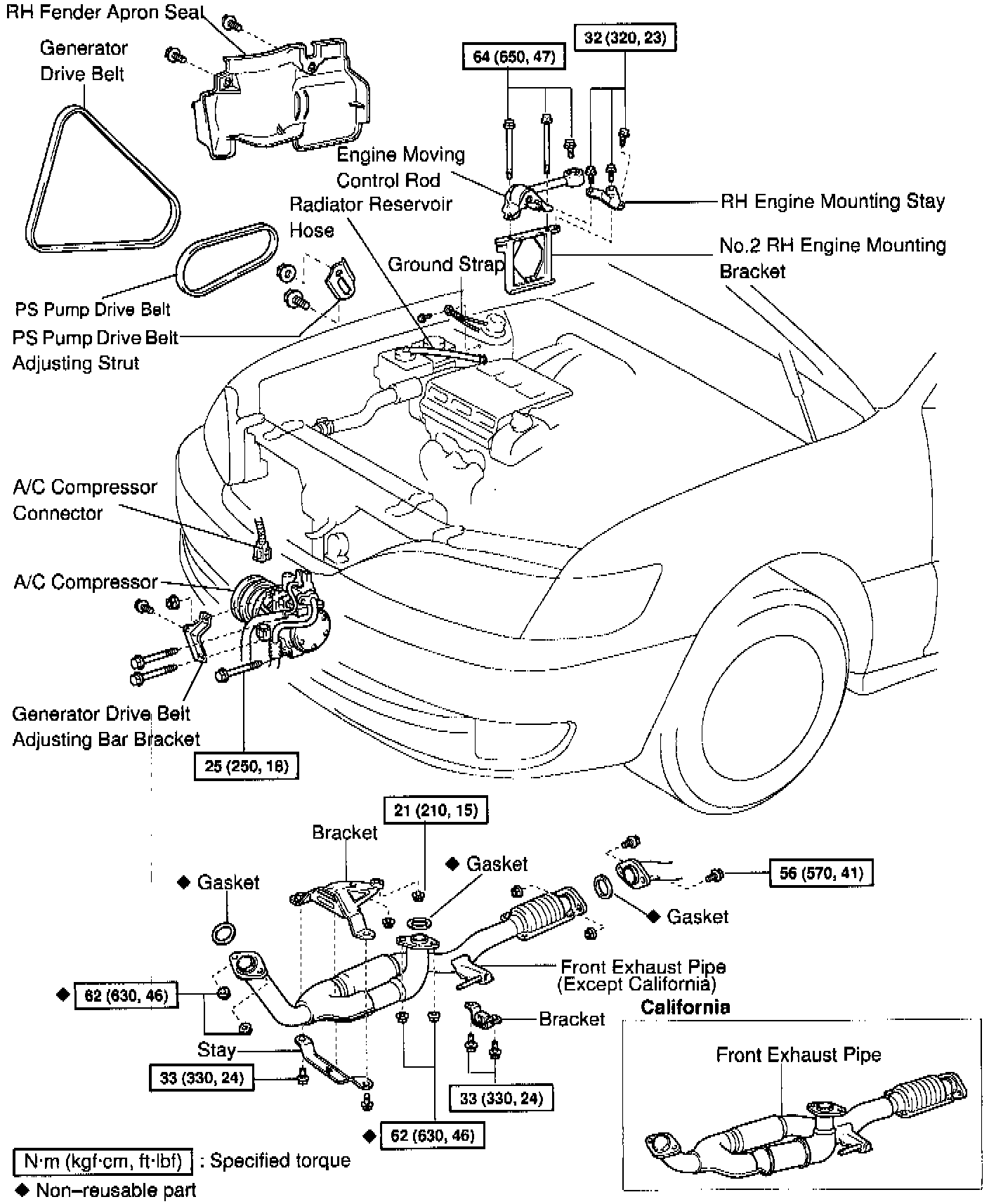

UNDERHOOD VIEW

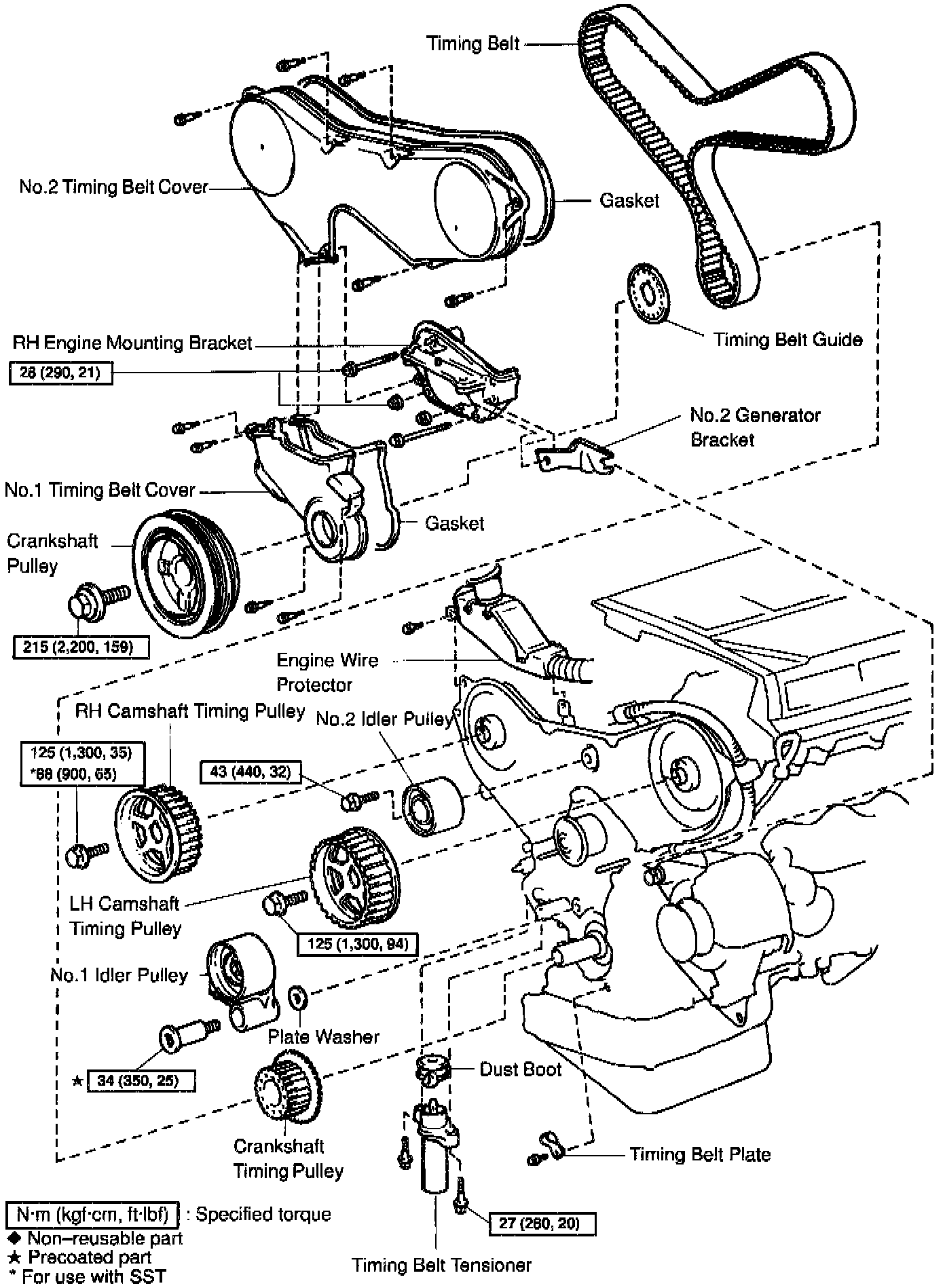

TIMING BELT
COMPONENTS

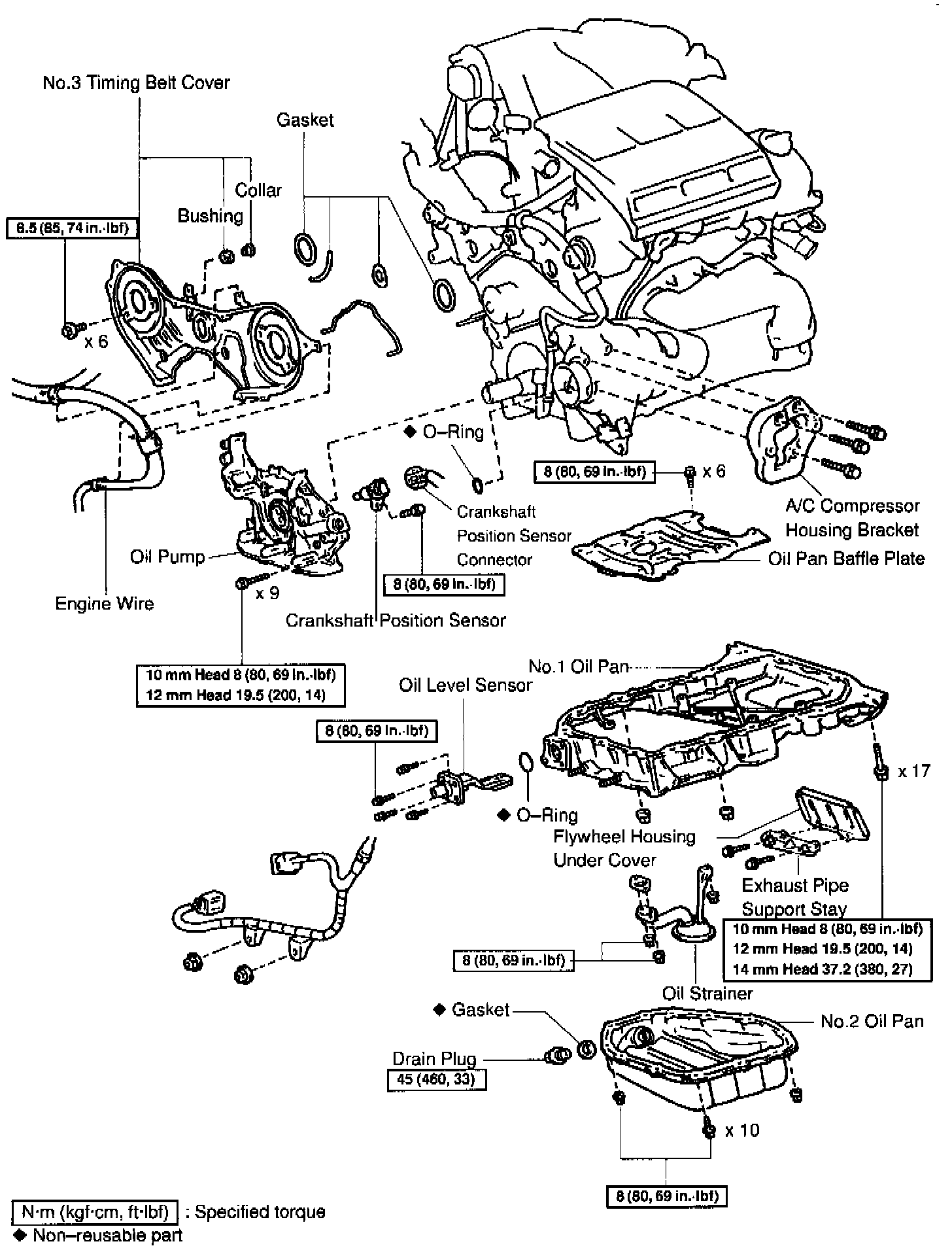

NO.1 AND NO.2
OIL PAN
AND RELATED COMPONENTS
OIL PUMP
