Crankshaft Position Sensor: Testing and Inspection


INSPECTION

INSPECT CRANKSHAFT POSITION SENSOR
(a) Disconnect the crankshaft position sensor connection
(b) Remove the bolt holding the connector bracket to the water pump.

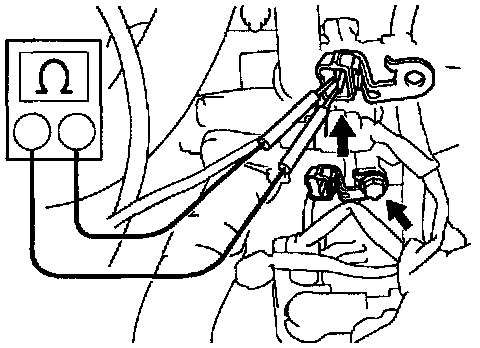

(c) Using an ohmmeter, measure the resistance between terminals.





Resistance:

If the resistance is not as specified, replace the sensor.
(d) Reinstall the bolt holding the connector bracket to the water pump.
(e) Reconnect the crankshaft position sensor connector.
