Connector Views

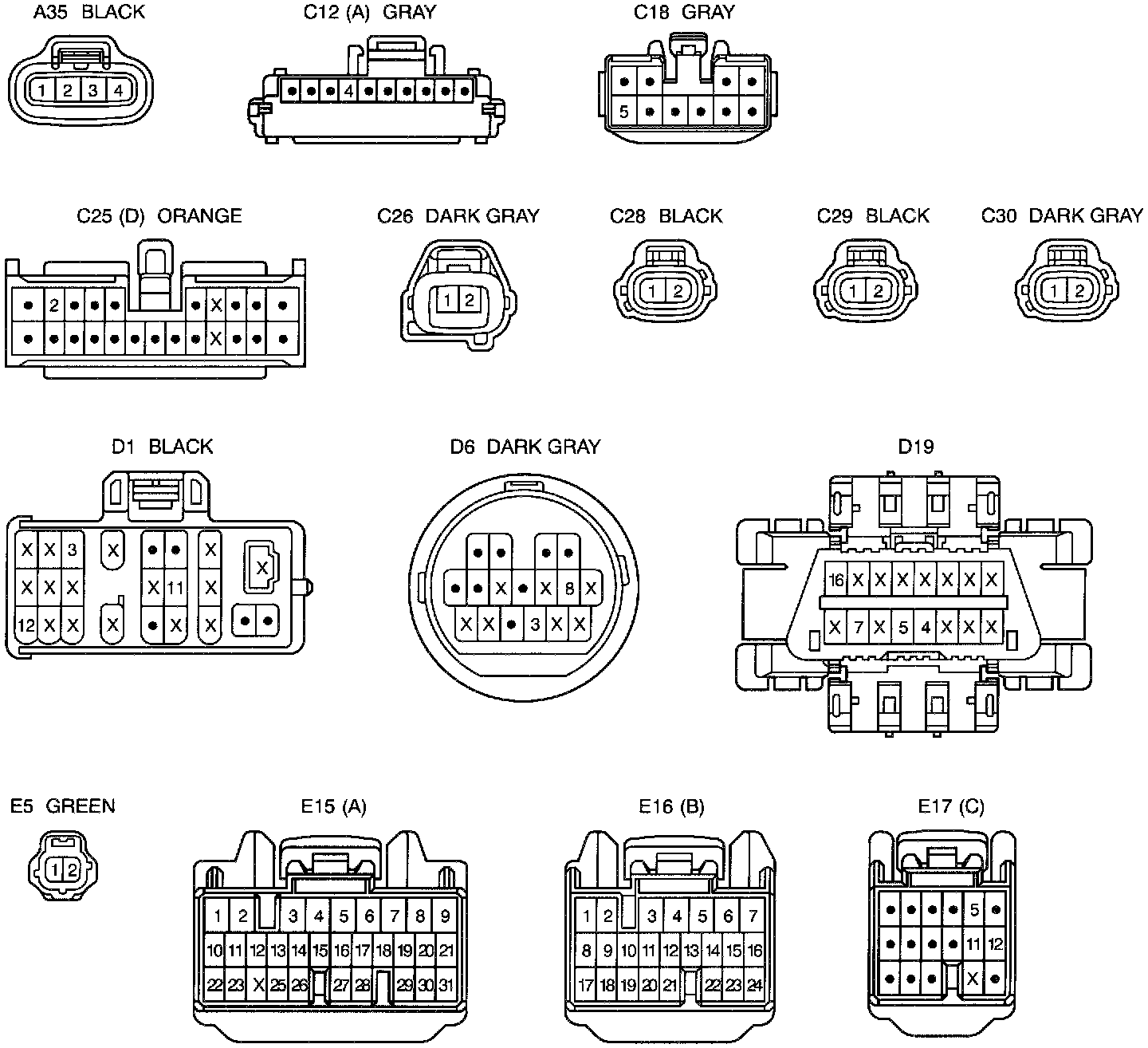

Engine Control And Engine Immobiliser System-Connectors:

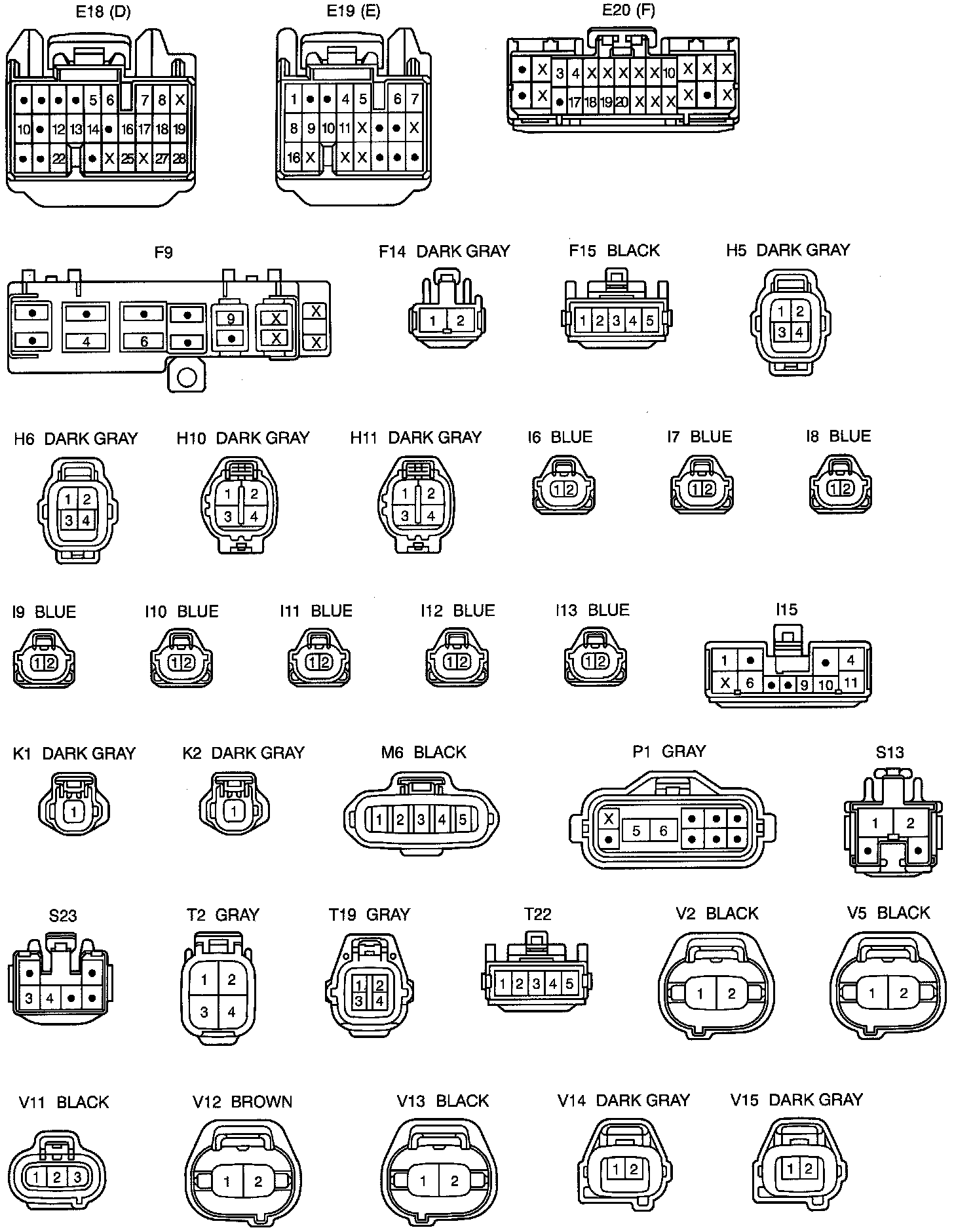

Engine Control And Engine Immobiliser System-Connectors:
