Sensor Power Source Circuit

CIRCUIT DESCRIPTION

Power to the position sensors, manual switch and auto set switch is output from the ECU.

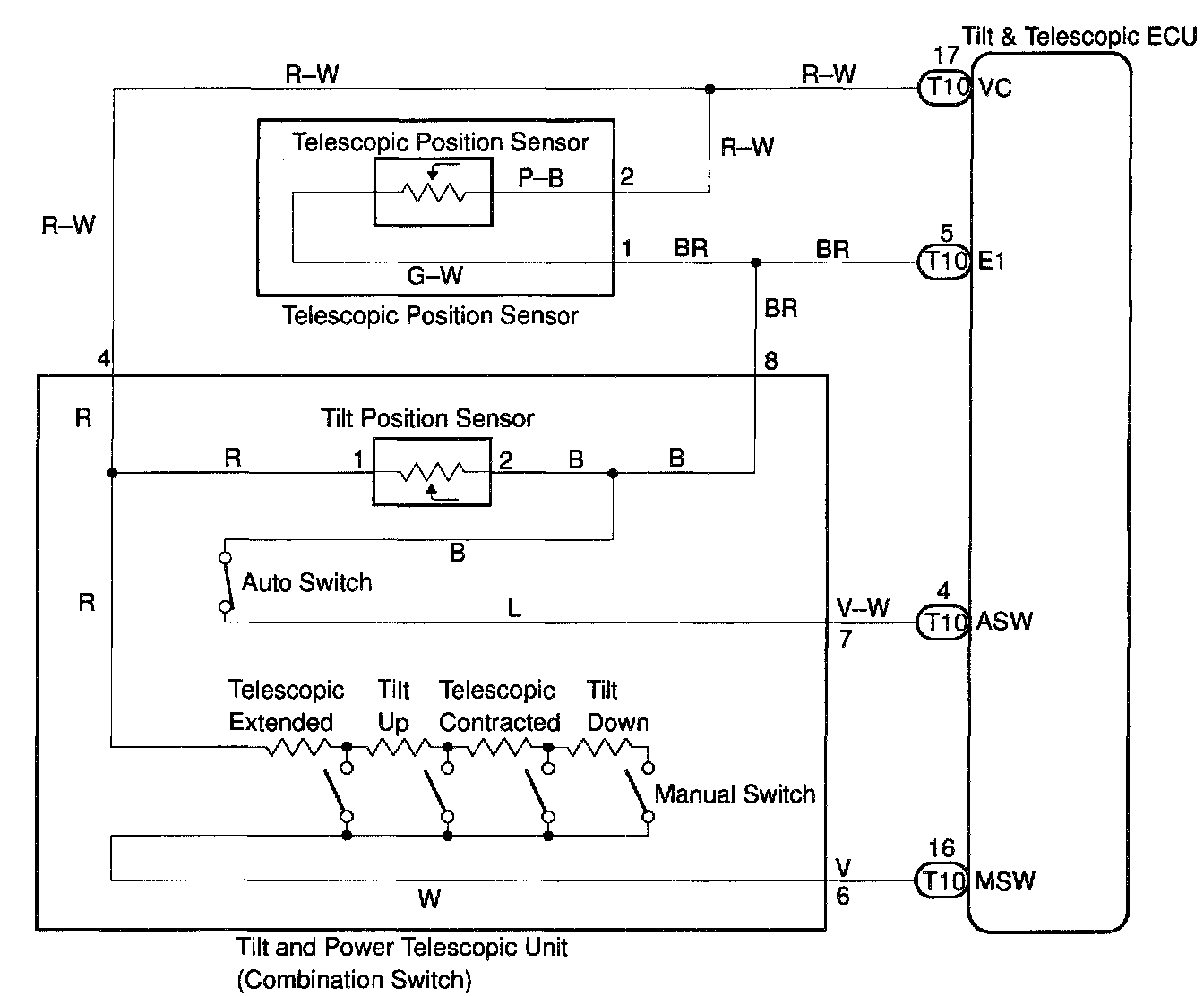

WIRING DIAGRAM

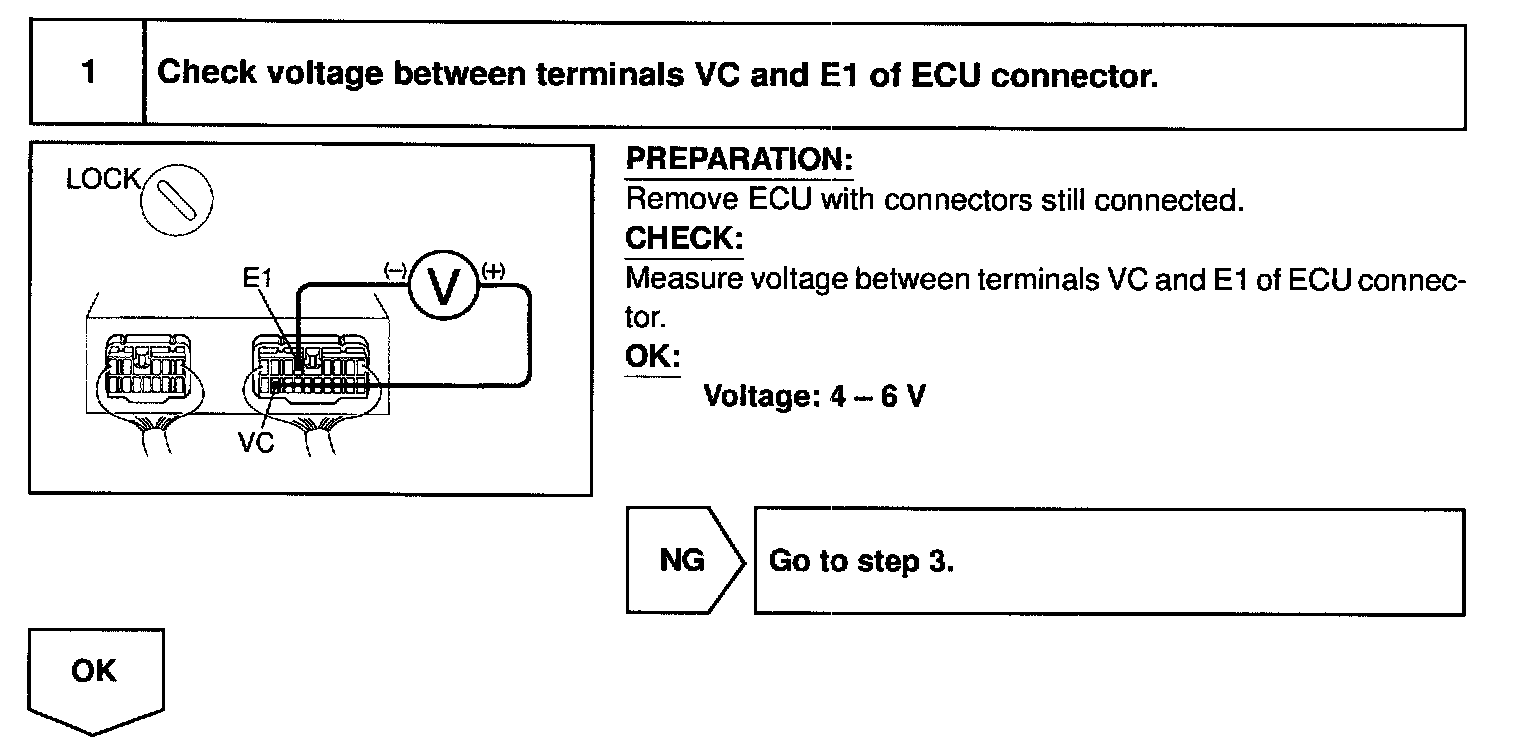

Step 1:

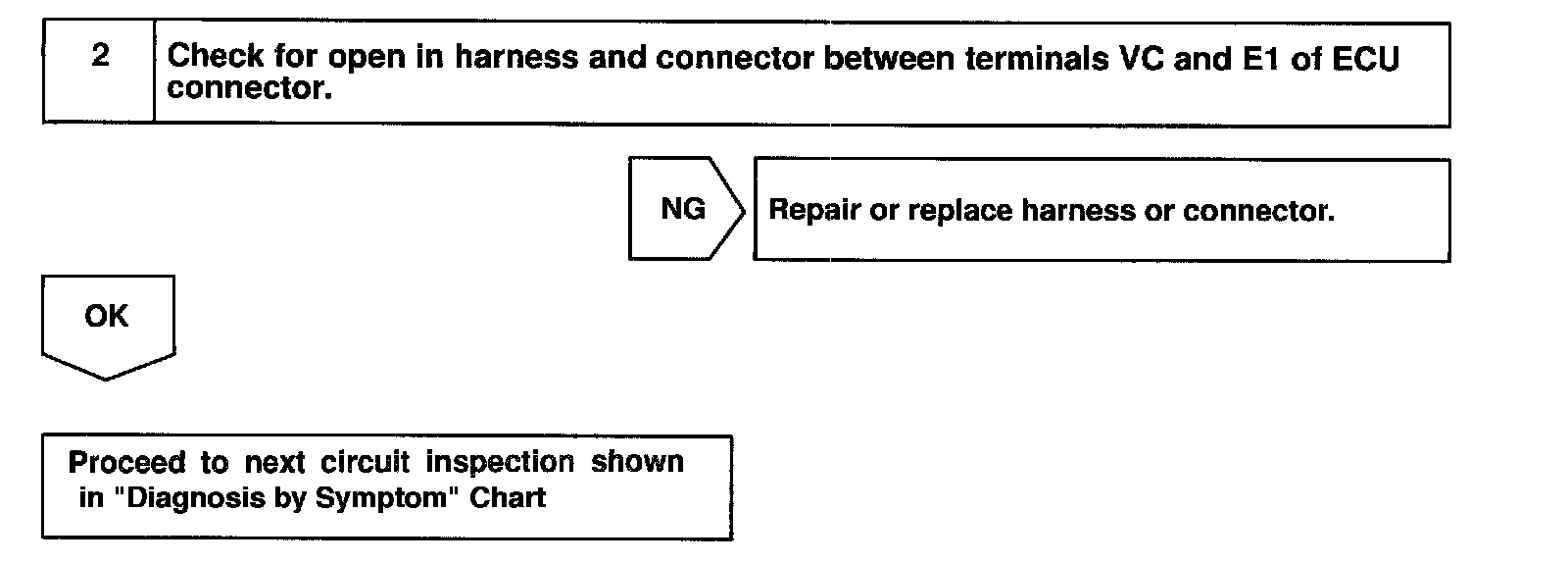

Step 2:

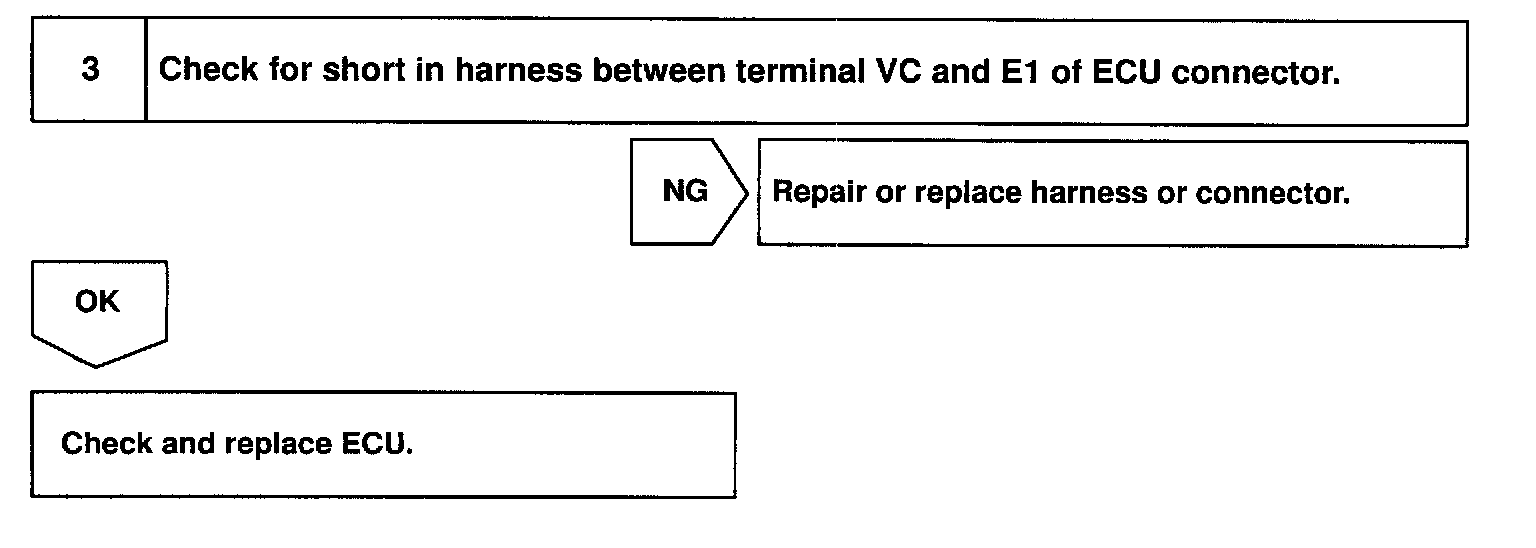

Step 3:

INSPECTION PROCEDURE
