Camshaft Position Sensor: Testing and Inspection

INSPECT CAMSHAFT POSITION SENSORS
a. Remove the V-bank cover.
b. Remove the air cleaner hose w/ resonator.
c. Disconnect the sensor connectors.

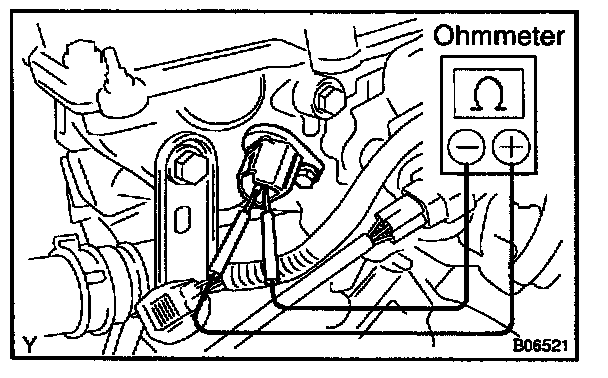

d. Using an ohmmeter, measure the resistance between terminals.

Resistance:
Cold 835 - 1,400 Ohms
Hot 1,060 - 1,645 Ohms
If the resistance is not as specified, replace the sensor.

e. Reconnect the sensor connectors.
f. Reinstall the air cleaner hose w/ resonator.
g. Reinstall the V-bank cover.
