Cruise Control Systems: Description

Cruise control system uses an electric actuator to hold throttle open, maintaining desired vehicle speed. System is controlled by cruise control Electronic Control Unit (ECU). Cruise control system is equipped with self-diagnostics. See Fig 1 and Fig 2 .

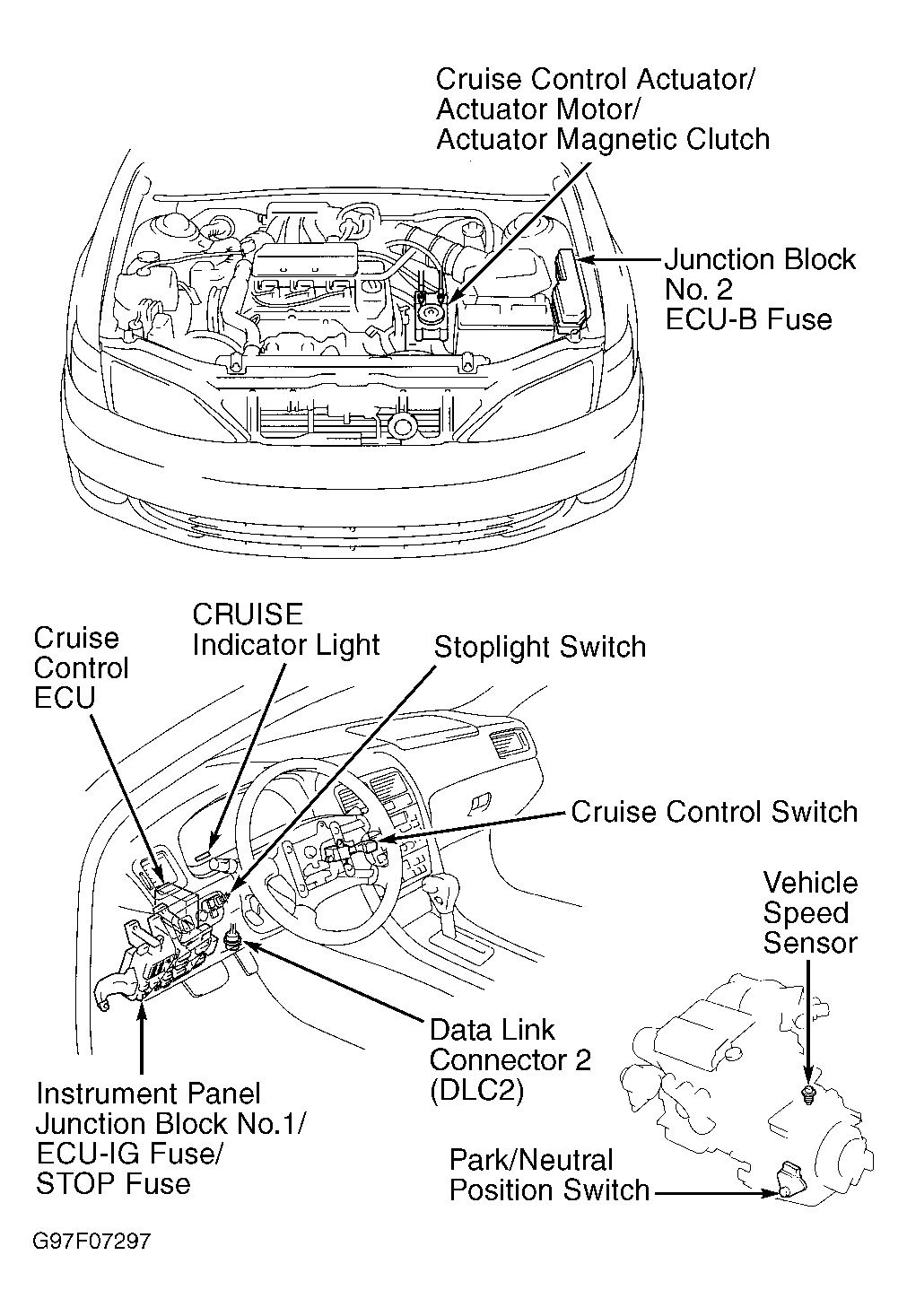

Fig 1: Cruise Control Component Locations (ES300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

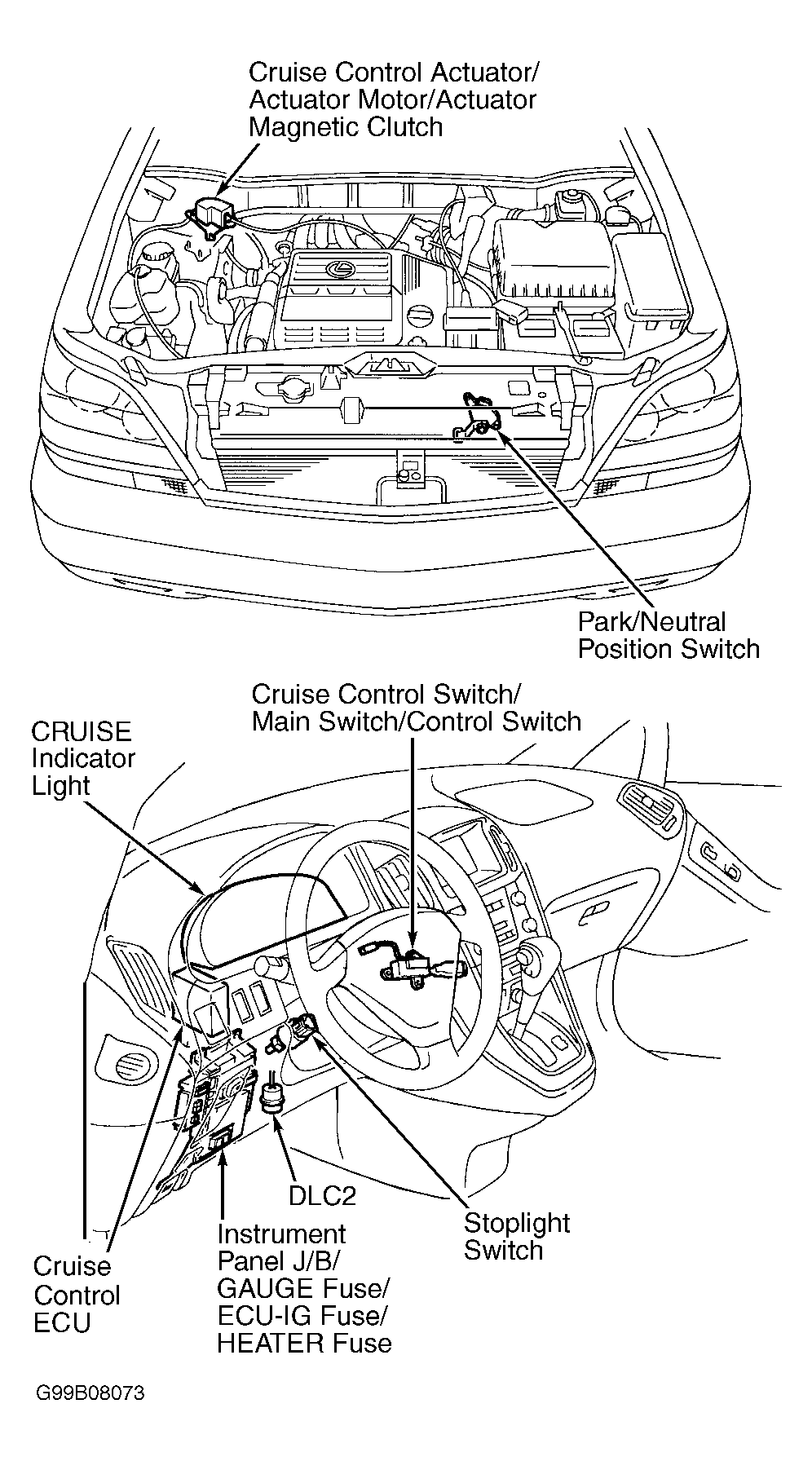

Fig 2: Cruise Control Component Locations (RX300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
