Relay Box: Testing and Inspection

RELAY CIRCUIT

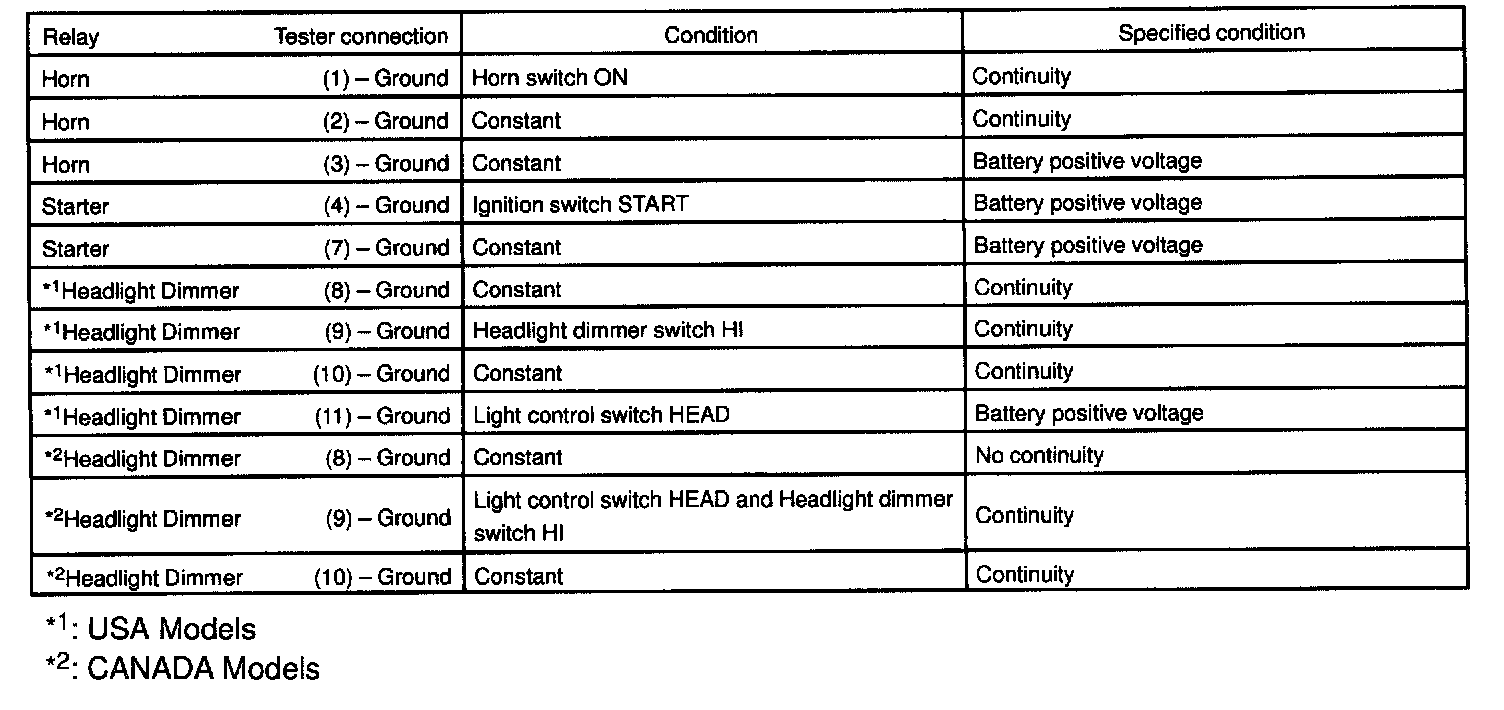

Remove the relay from the junction block and inspect the connector on junction block side.
Connect numbers are shown in the illustration.
If the circuit is not as specified, inspect the circuits connected to other parts.

Part 1 Of 2:

Part 2 Of 2:

RELAY CIRCUIT

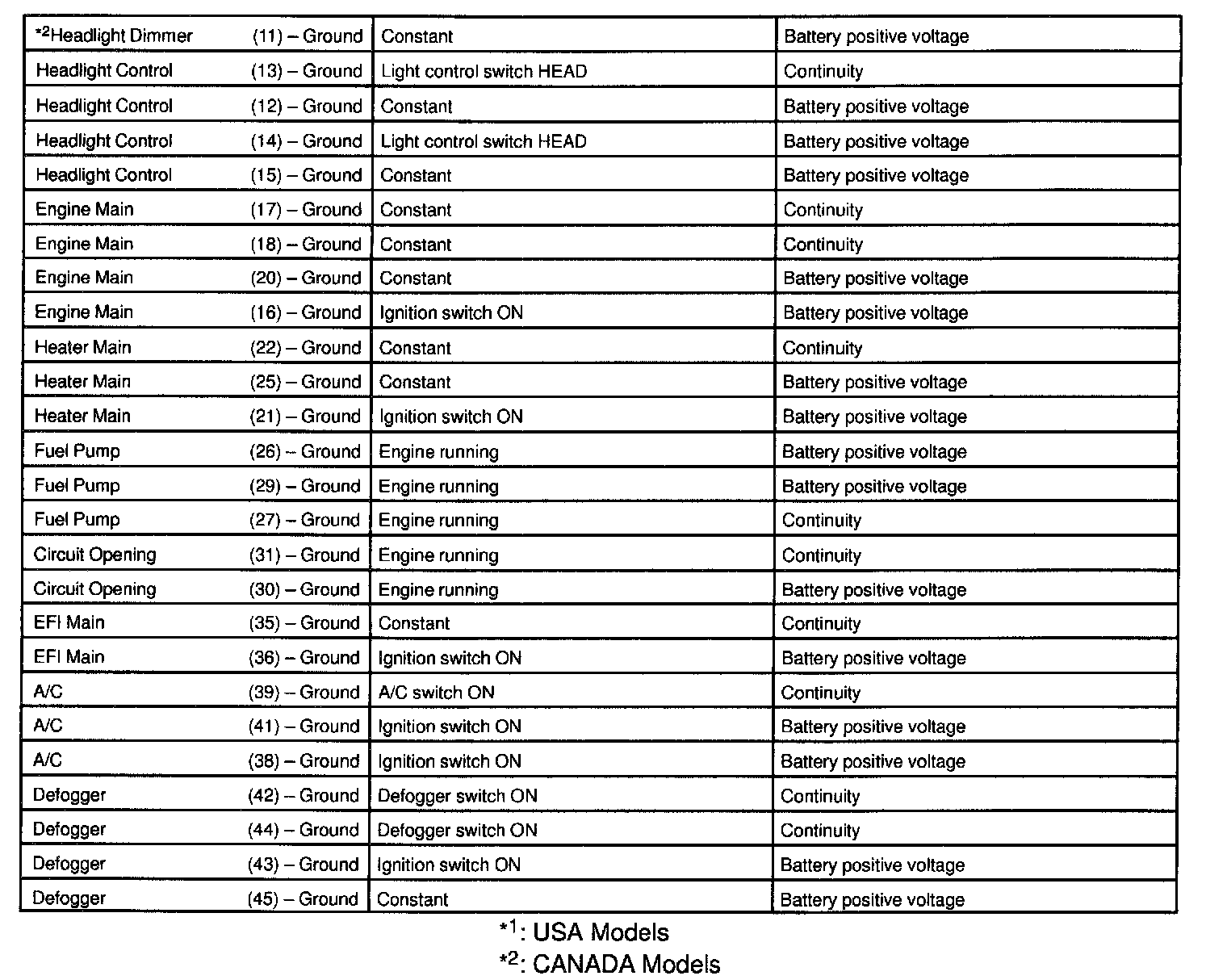

Remove the relay from the relay block and inspect the connector on relay block side.
Connect numbers are shown in the illustration.
If the circuit is not as specified, inspect the circuits connected to other parts.




INSPECT ENGINE ROOM NO.1 RELAY BLOCK




RELAY CIRCUIT

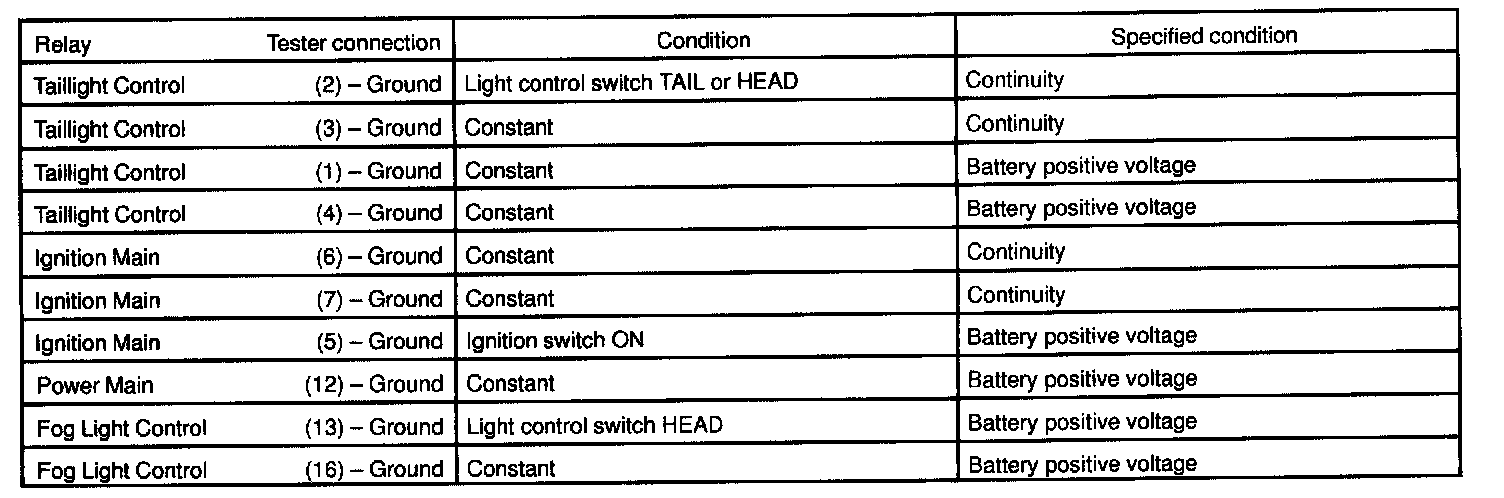

Remove the relay from the relay block and inspect the connector on relay block side.
Connect numbers are shown in the illustration.
If the circuit is not as specified, inspect the circuits connected to other parts.




INSPECT ENGINE ROOM RELAY BLOCK NO.2




RELAY CIRCUIT
Remove the relay from the relay block and inspect the connector on relay block side.
Connect numbers are shown in the illustration.
If the circuit is not as specified, inspect the circuits connected to other parts.
