Camshaft Position Sensor: Testing and Inspection

a. Remove the V-bank cover.
b. Remove the battery clamp cover.
c. Remove the air cleaner inlet.
d. Disconnect the camshaft position sensor connector.

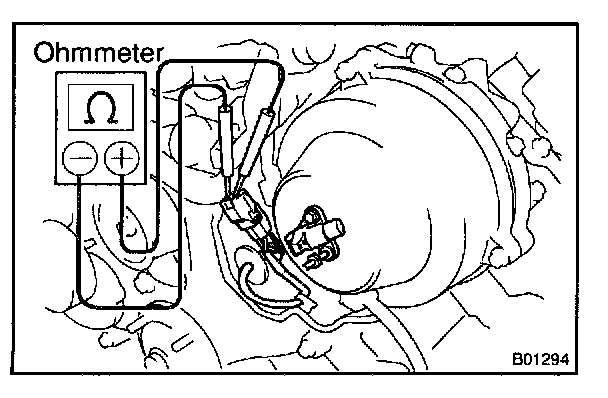

e. Using an ohmmeter, measure the resistance between terminals.

Resistance:
- Cold 835 - 1,400 ohms
- Hot 1,060 - 1,645 ohms

If the resistance is not as specified, replace the camshaft position sensor.

f. Reconnect the camshaft position sensor connector.
g. Reinstall the air cleaner inlet.
h. Reinstall the battery clamp cover.
i. Reinstall the V-bank cover.
