Ignition Coil: Service and Repair

COMPONENTS

REMOVAL

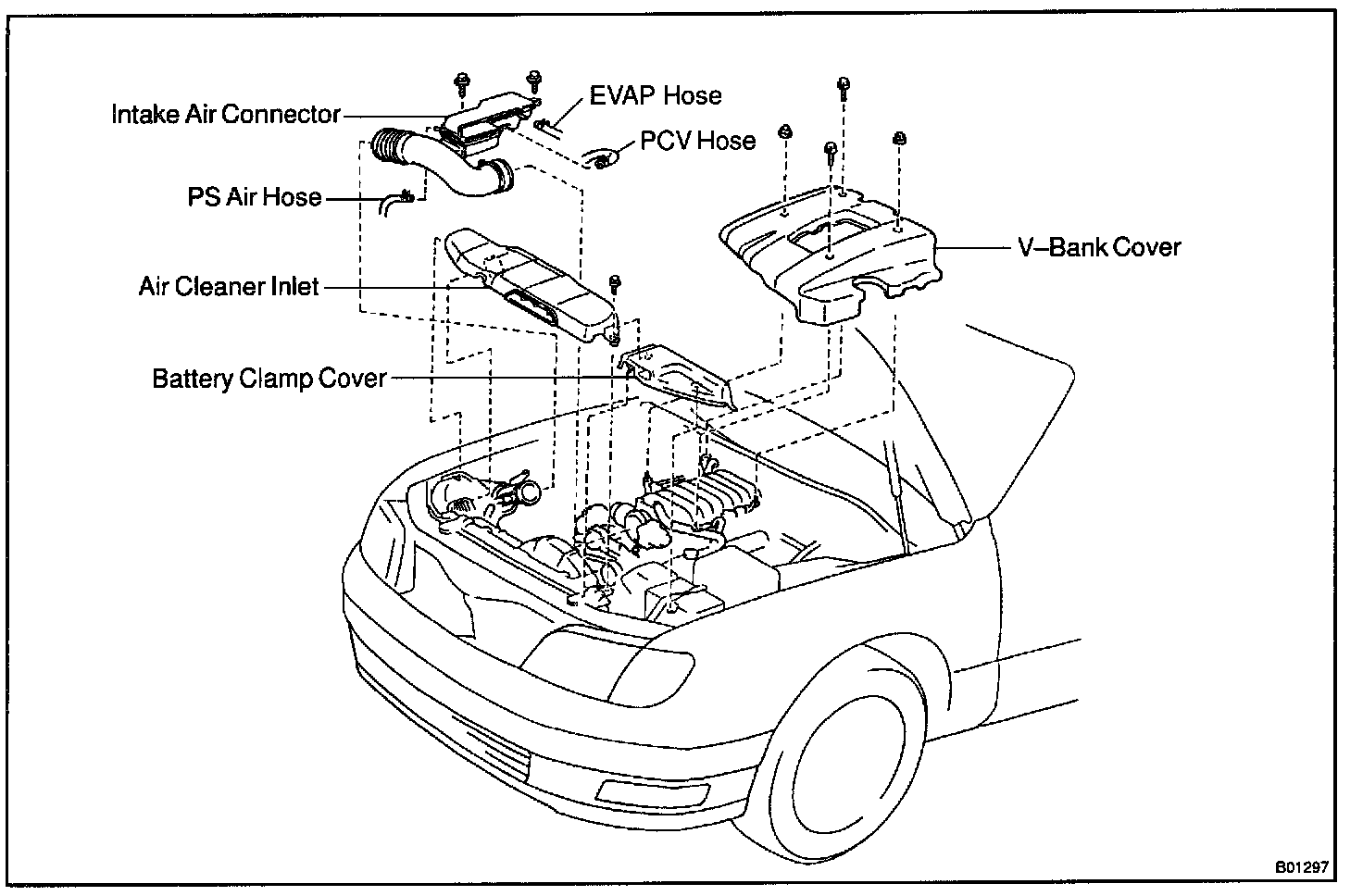

1. REMOVE V-BANK COVER
2. REMOVE BATTERY CLAMP COVER
3. REMOVE AIR CLEANER INLET
4. REMOVE INTAKE AIR CONNECTOR

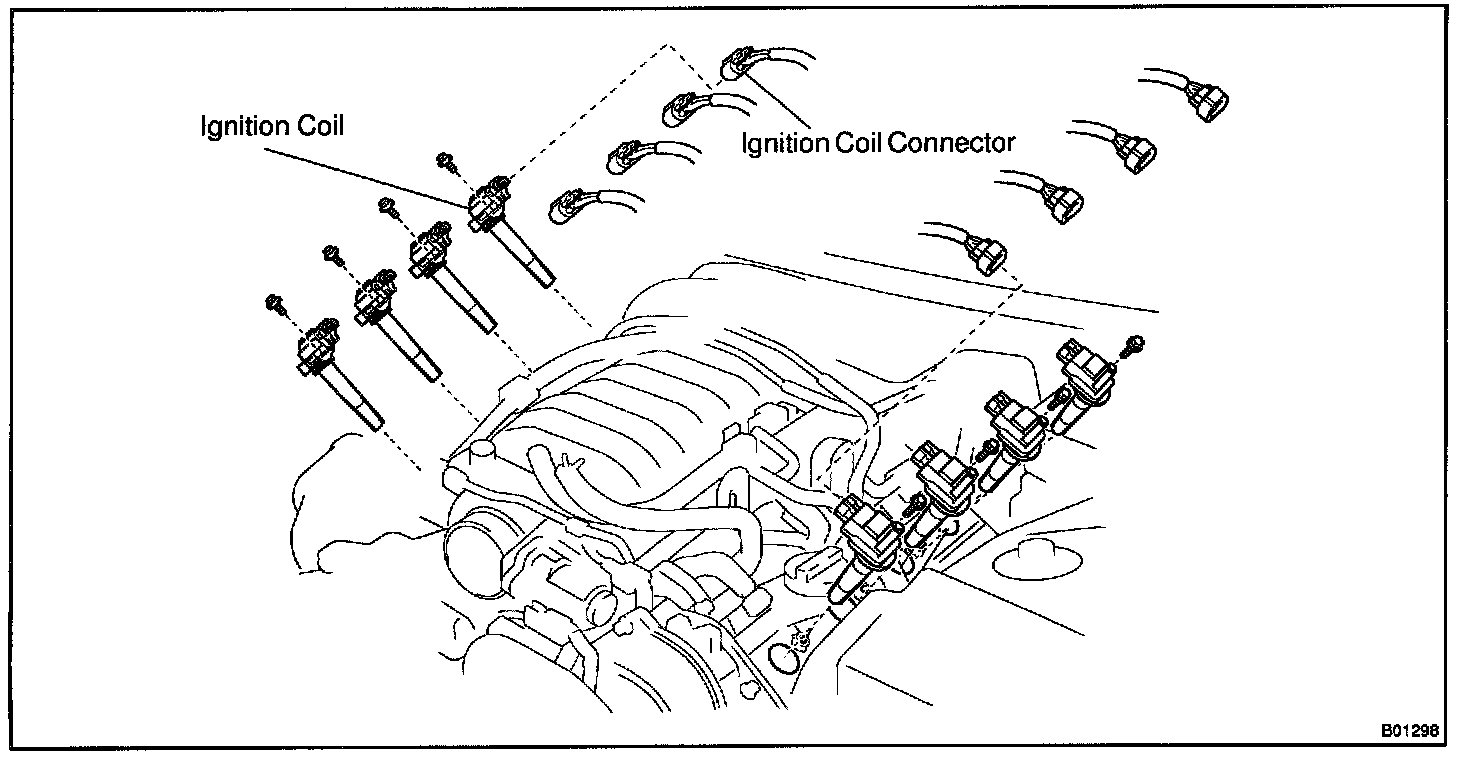

5. DISCONNECT IGNITION COIL CONNECTORS

6. REMOVE IGNITION COILS FROM SPARK PLUGS
Remove the 8 bolt and 8 ignition coils.
Torque: 7.5 Nm (80 kg.cm, 66 in.lb)

INSTALLATION
Installation is in the reverse order of removal.
