Position Sensor Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power to the slide,front vertical and reclining position sensors.

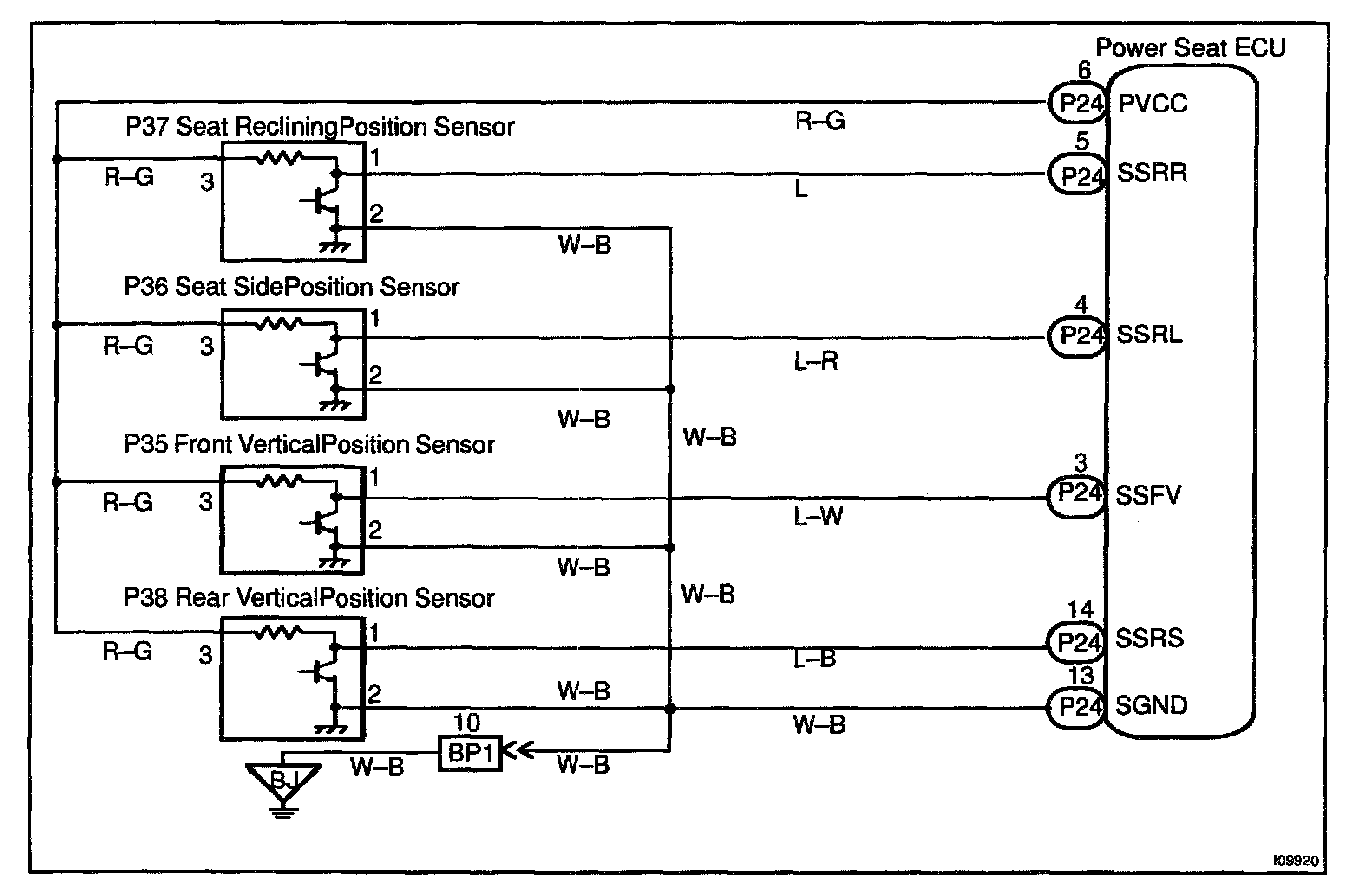

Wiring Diagram:

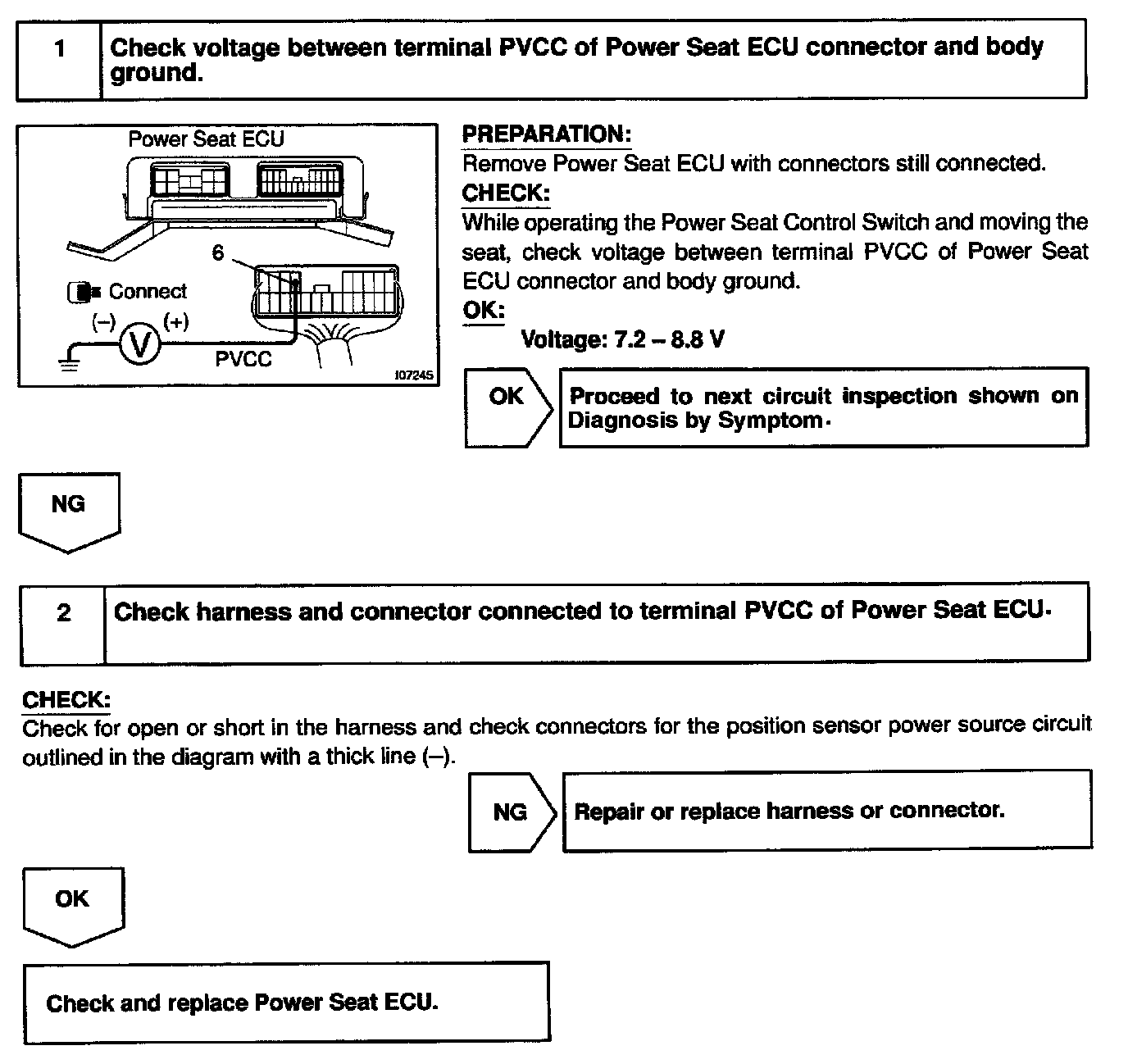

Steps 1 - 2:




INSPECTION PROCEDURE
