Park/Neutral Position Switch Circuit
CAUTION:
If ECM replacement is instructed in following testing, always ensure ECM connectors and ground circuit are okay. If either are suspect, repair and repeat testing to confirm ECM malfunction.
- Access ECM behind glove box. See Figure. Turn ignition on. Backprobing ECM connector, measure voltage between ground and specified terminal at ECM E9 connector. See PARK/NEUTRAL POSITION SWITCH VOLTAGE table. See Figure. If voltage is not as specified, go to next step. If voltage is as specified, no problem is indicated at this time. Fault may be intermittent. If sent here from SYMPTOM DIAGNOSIS, perform next test listed. If voltage is not as specified, go to next step.PARK/NEUTRAL POSITION SWITCH VOLTAGE

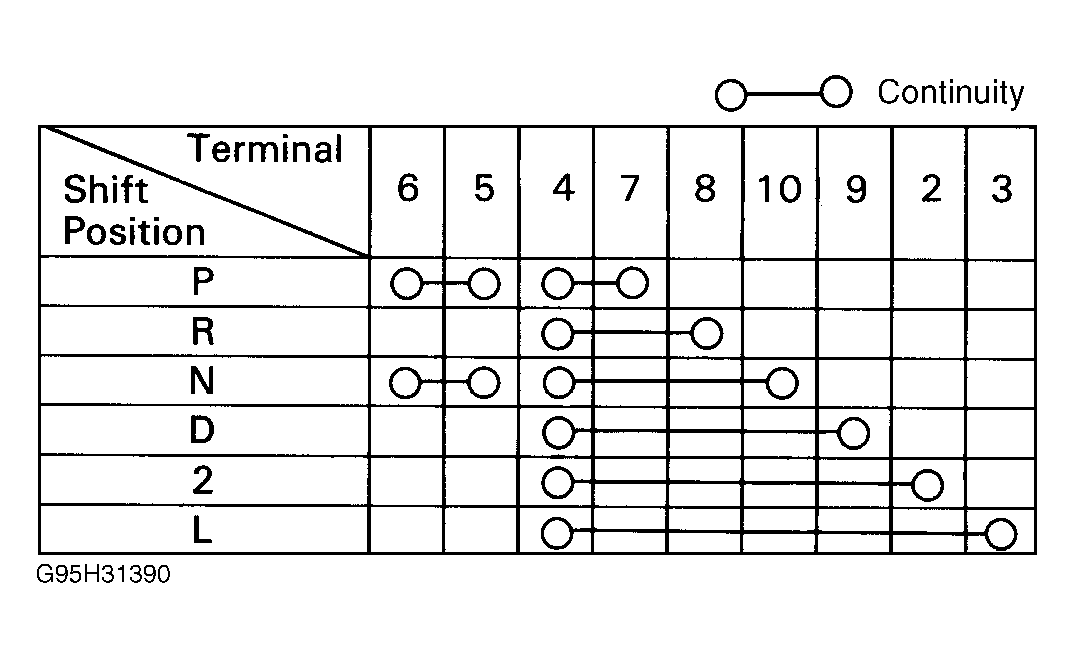

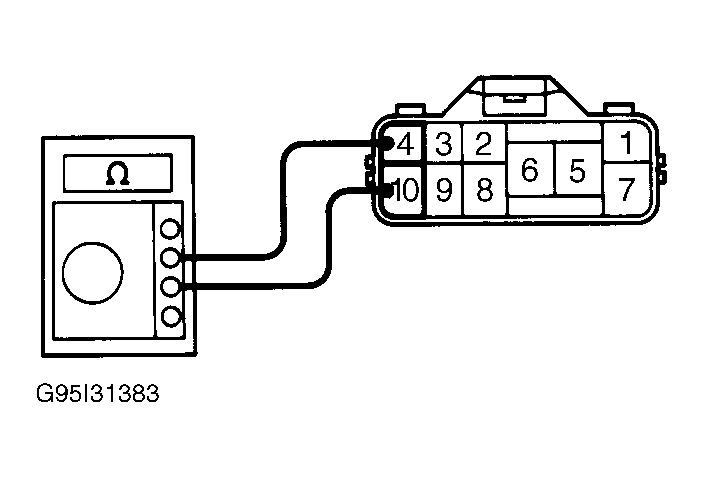

Shifter Position (1) Terminal No. Volts Park & Neutral 2 Zero 3 Zero 9 Zero 19 Zero 20 Zero Reverse 2 (2) 9-14 3 Zero 9 Zero 19 Zero 20 (2) 9-14 Drive 2 Zero 3 Zero 9 Zero 19 9-14 20 9-14 2 2 Zero 3 9-14 9 Zero 19 Zero 20 9-14 Low 2 Zero 3 Zero 9 9-14 19 Zero 20 9-14 (1) Measure voltage between ground and terminal listed at ECM E9 connector. See Figure. (2) Voltage may be slightly less due to lighting of reverse lights. - Disconnect PNP switch connector. Using ohmmeter, check continuity of switch terminals with shift lever in specified positions. See Fig 1 and Fig 2 . Replace PNP switch as necessary. If PNP switch is okay, go to next step.
- Check wiring harness between battery and PNP switch, and between PNP switch and ECM. See WIRING DIAGRAMS . Repair wiring harness as necessary. If wiring harness is okay, replace ECM.
