Front Axle Shafts: Identification

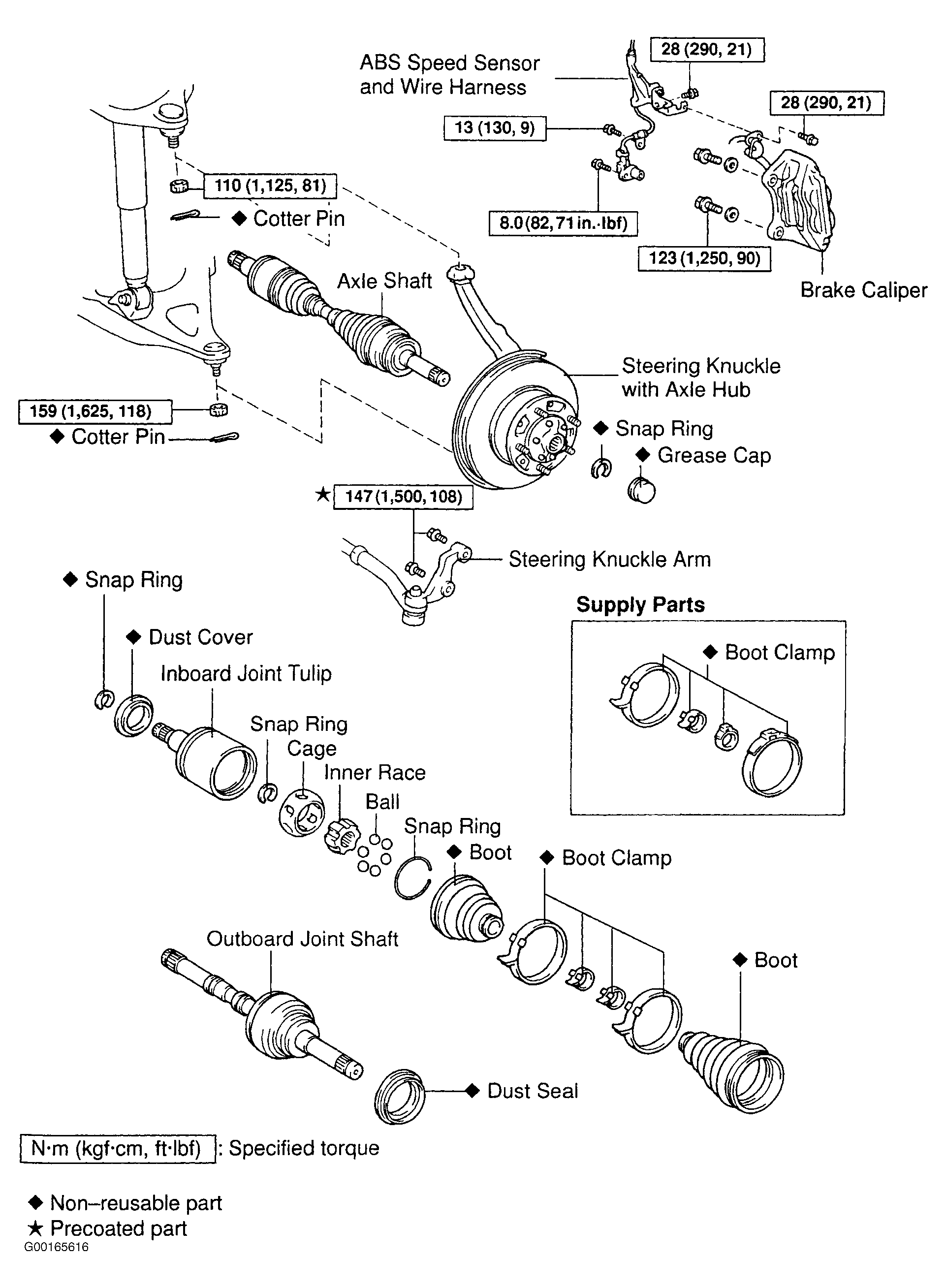

Fig 1: Exploded View Of Front Axle Shaft Assembly

G00165616

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
