Torque Specifications

TORQUE SPECIFICATIONS

Application Ft. Lbs. (N.m)
Flexible Hose-To-Steering Knuckle Bolt 21 (28)
Front Caliper-To-Steering Knuckle Bolts 90 (123)
Front Wheel Speed Sensor Bolts
A (1) 6 (8)
B (1) 9 (13)
C (1) 21 (28)
Steering Knuckle Arm-To-Steering Knuckle Bolts (2) 108 (147)
Steering Knuckle-To-Lower Suspension Arm Nut
Lower 118 (159)
Upper 81 (110)
Wheel Lug Nut 97 (131)

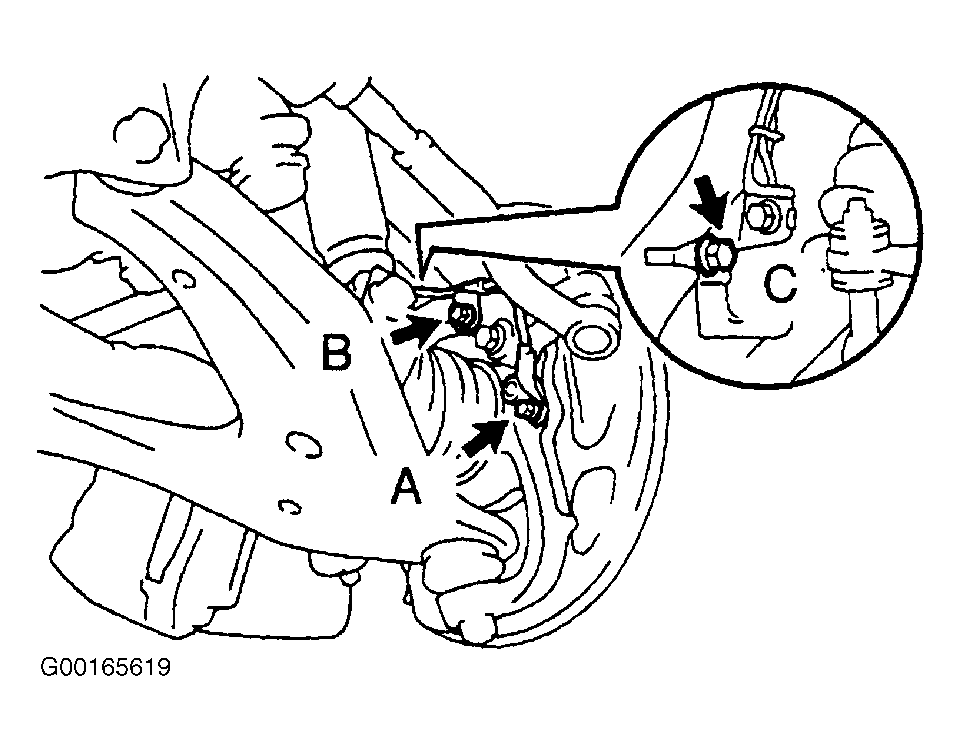

(1) See Figure to identify bolts.
(2) Before reinstalling steering knuckle arm, clean the threads of the 2 bolts and steering knuckle with toluene or trichloroethylene. Then apply sealant to the bolt threads. Use Sealant part No. 08833-00070, Three Bond 1324, or equivalent.
