Component Locations

To locate components, see Fig 1.

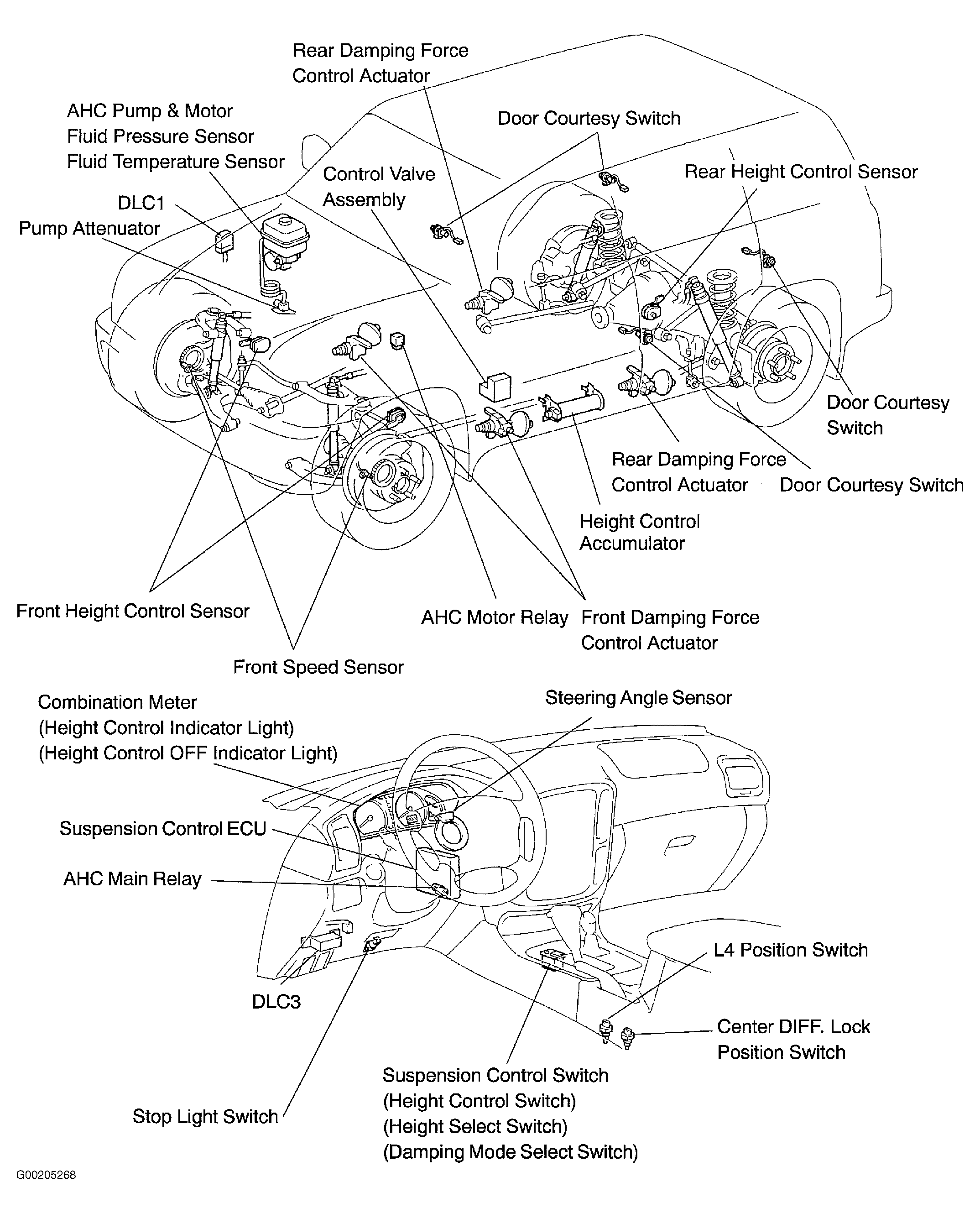

Fig 1: Locating Components
G00205268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
