Power Seat Control Module: Testing and Inspection

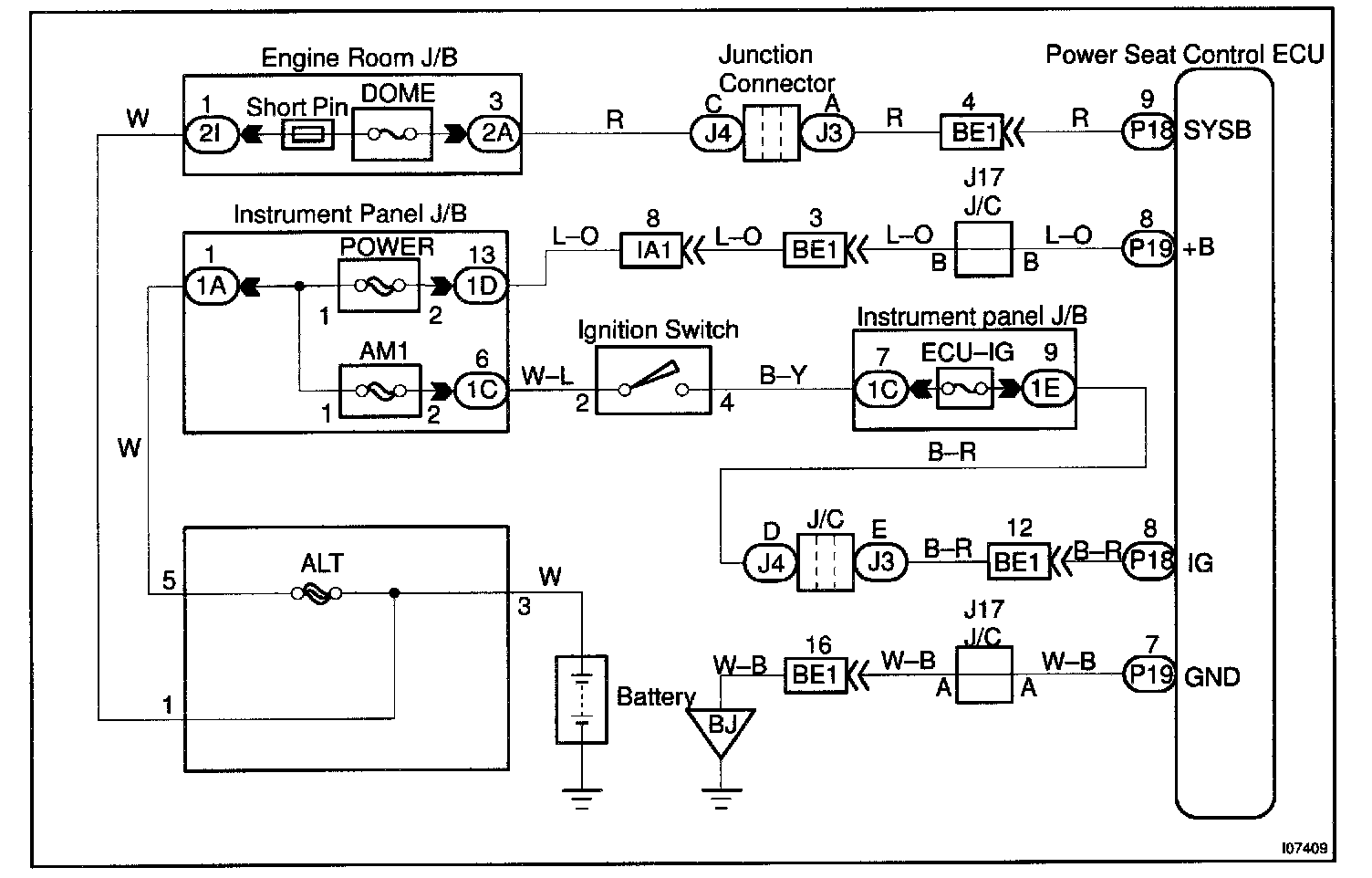

Wiring Diagram:

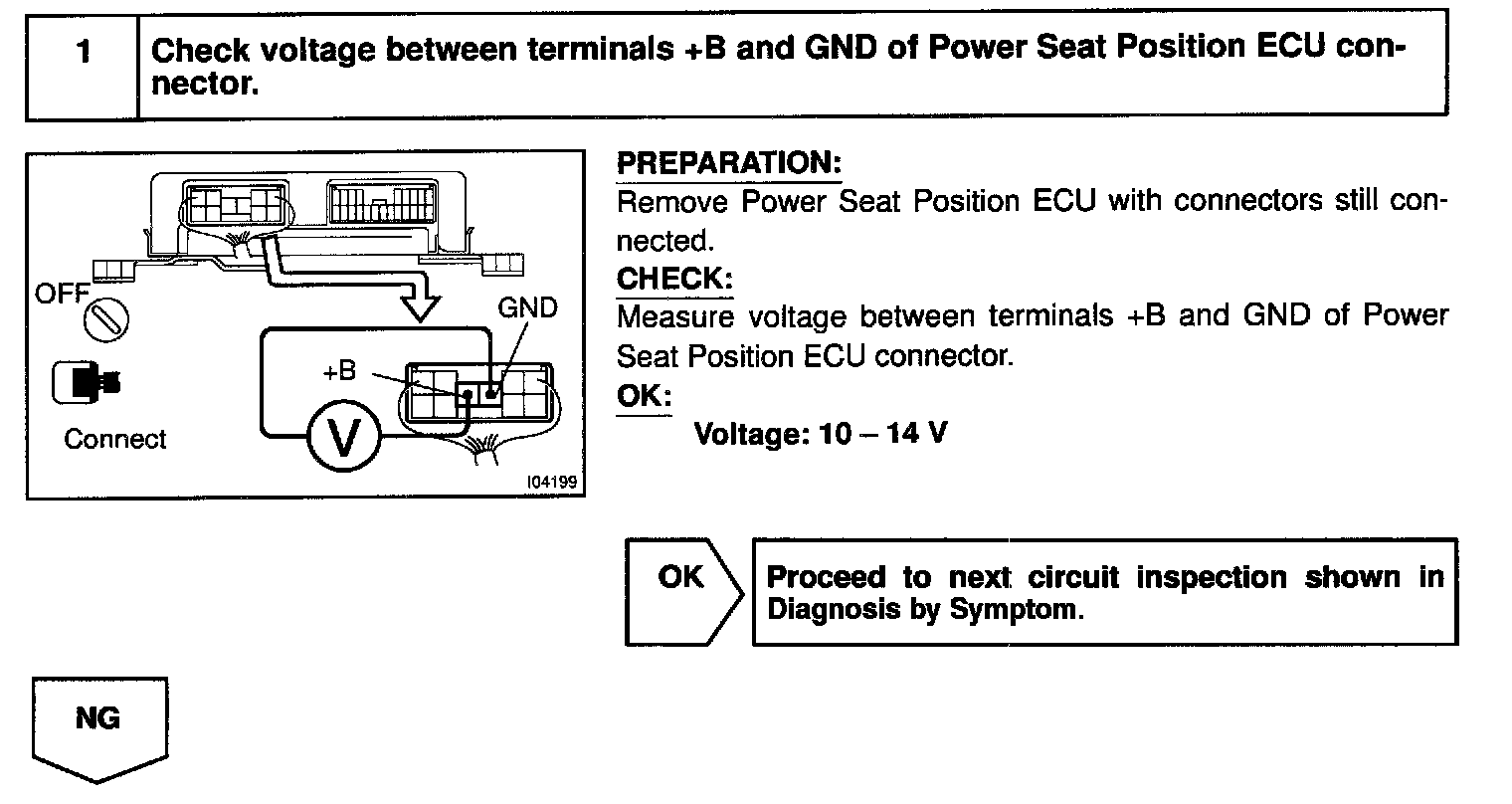

Step 1:

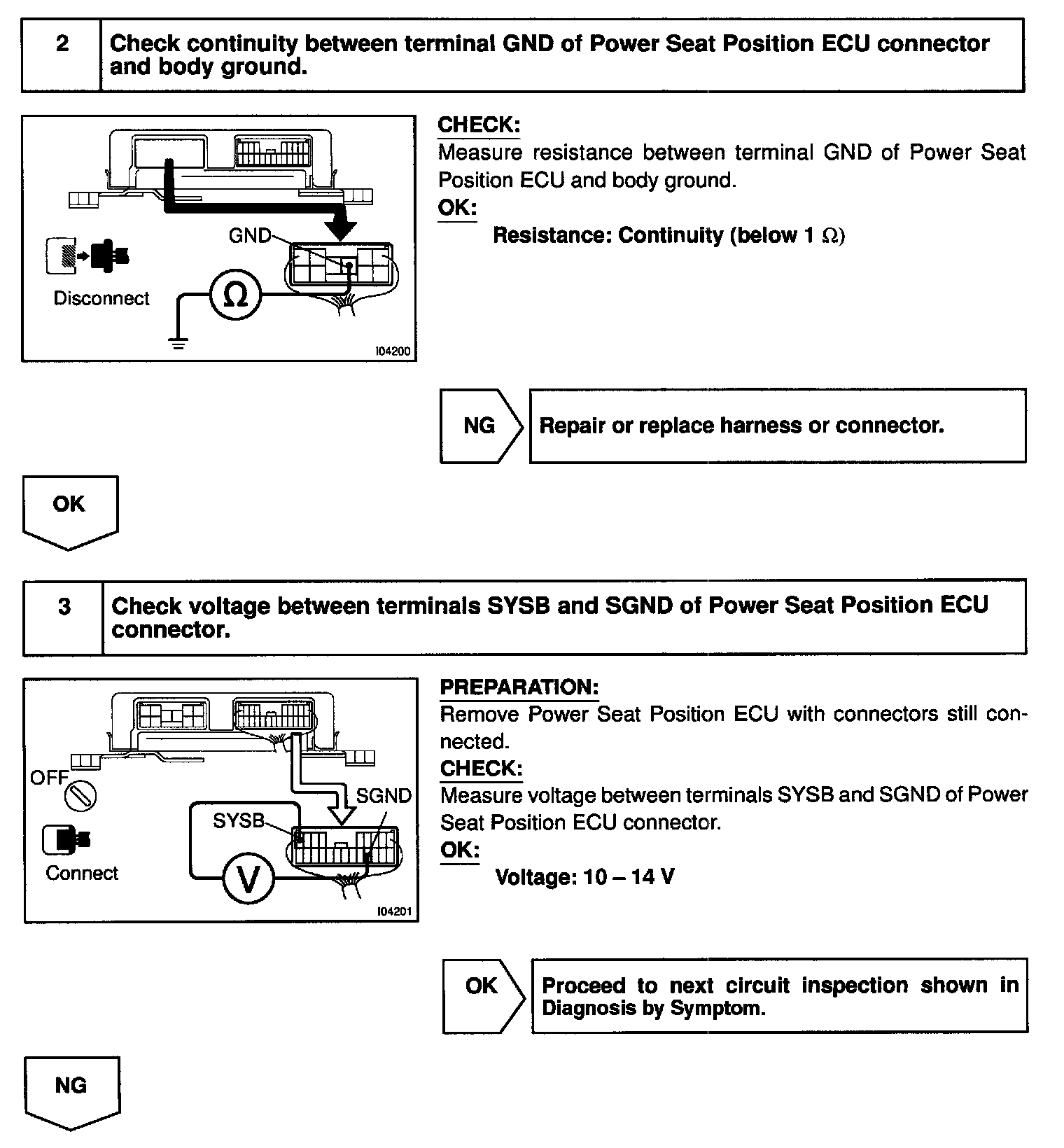

Steps 2 - 3:

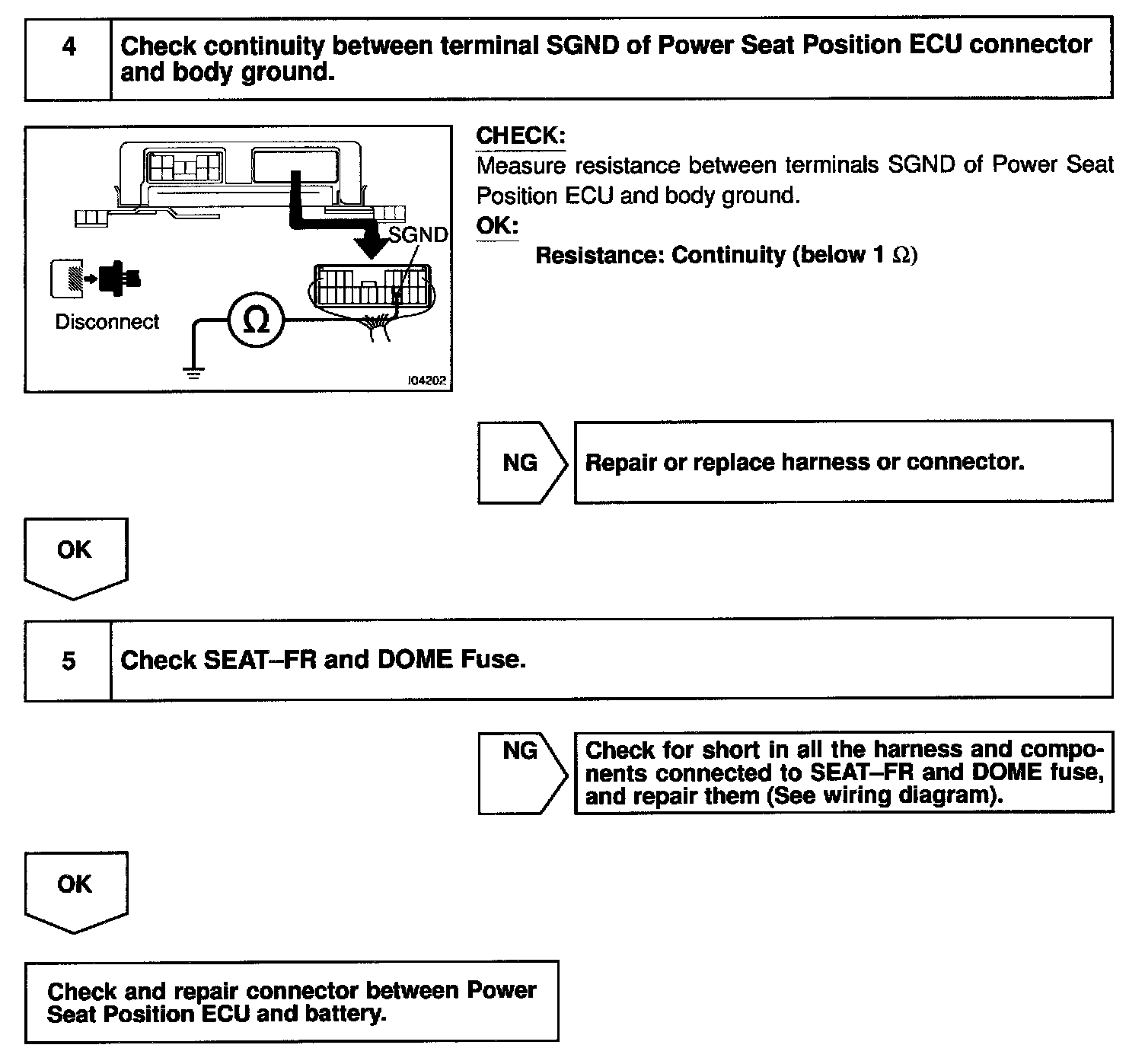

Steps 4 - 5:




INSPECTION PROCEDURE
