Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor:

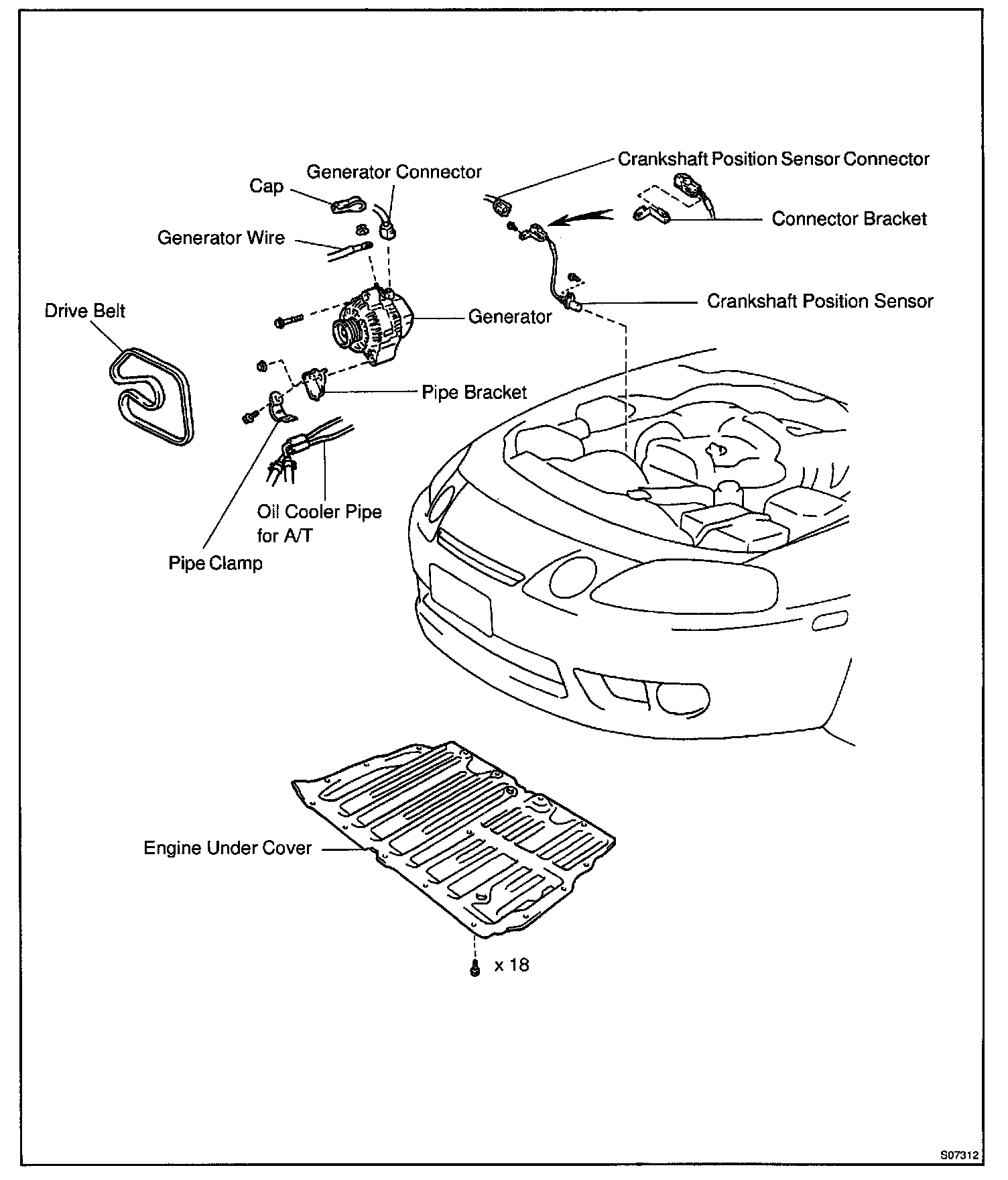

COMPONENTS

REMOVAL

1. REMOVE GENERATOR

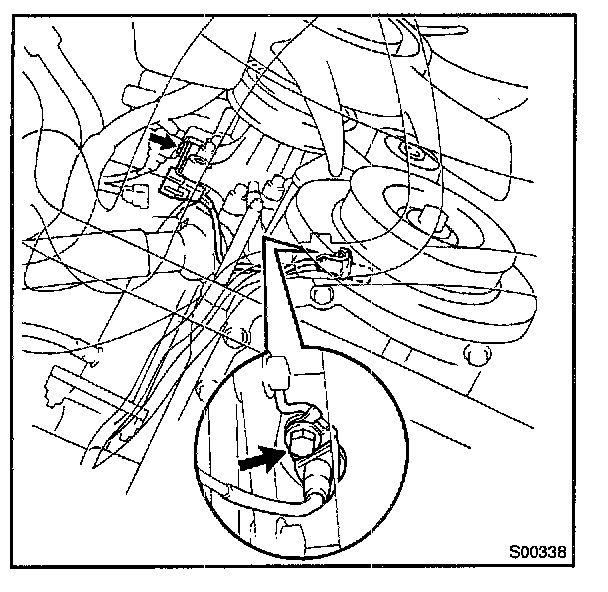

2. DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR
a. Disconnect the sensor connector.




b. Remove the bolt holding the connector bracket to the water pump.

3. REMOVE CRANKSHAFT POSITION SENSOR
a. Remove the bolt and crankshaft position sensor.

Torque: 9.0 Nm (90 kg.cm, 80 in.lb)

b. Remove the connector bracket from the connector.

INSTALLATION
Installation is in the reverse order of removal.
