Combination Switch Circuit: Notes

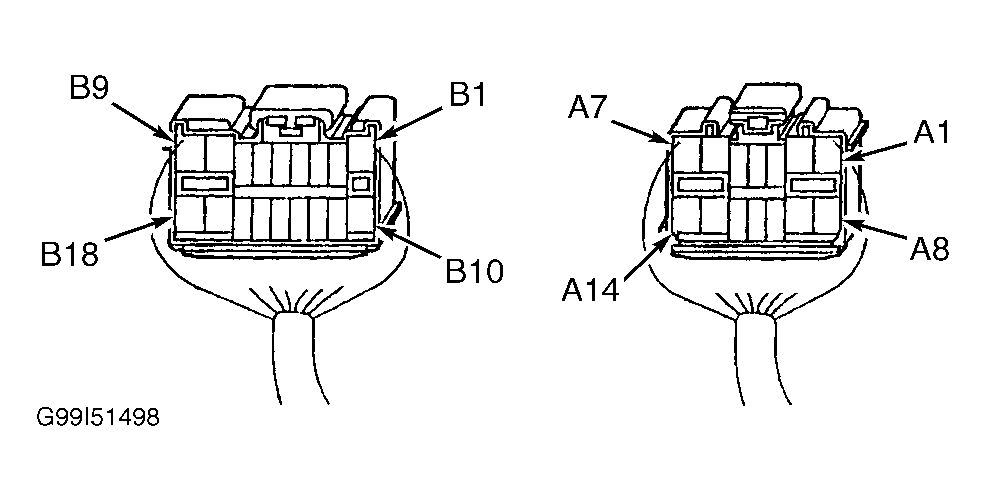

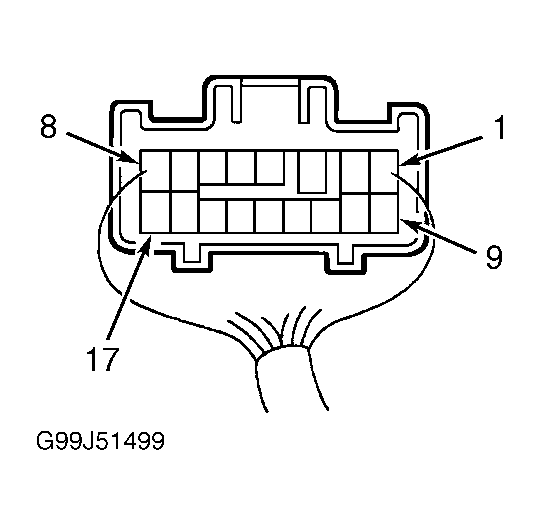

With combination switch connected, check circuit values by backprobing appropriate connector terminal on back side of harness connector. See Figure-Figure . Ensure circuit values are as specified. See appropriate COMBINATION SWITCH CIRCUIT VALUES table. If circuit values are not as specified, repair as necessary. See appropriate wiring diagram in HEADLIGHT SYSTEMS article.
