Overdrive Brake: Disassembly

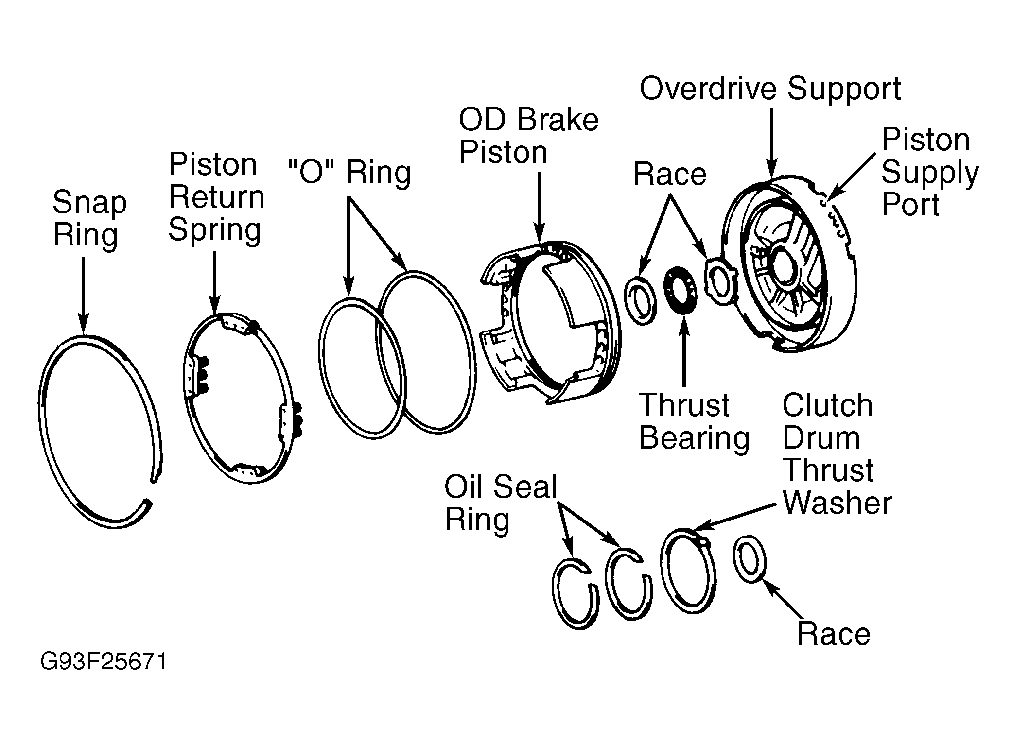

Remove all thrust washers from overdrive support. Using appropriate compressor, compress piston return spring and remove snap ring. Place support on direct clutch assembly. Hold brake piston in a level position. Carefully apply air pressure to piston supply port and remove piston. Remove oil seal rings from rear of support. See Figure.
