Ignition Coil: Service and Repair

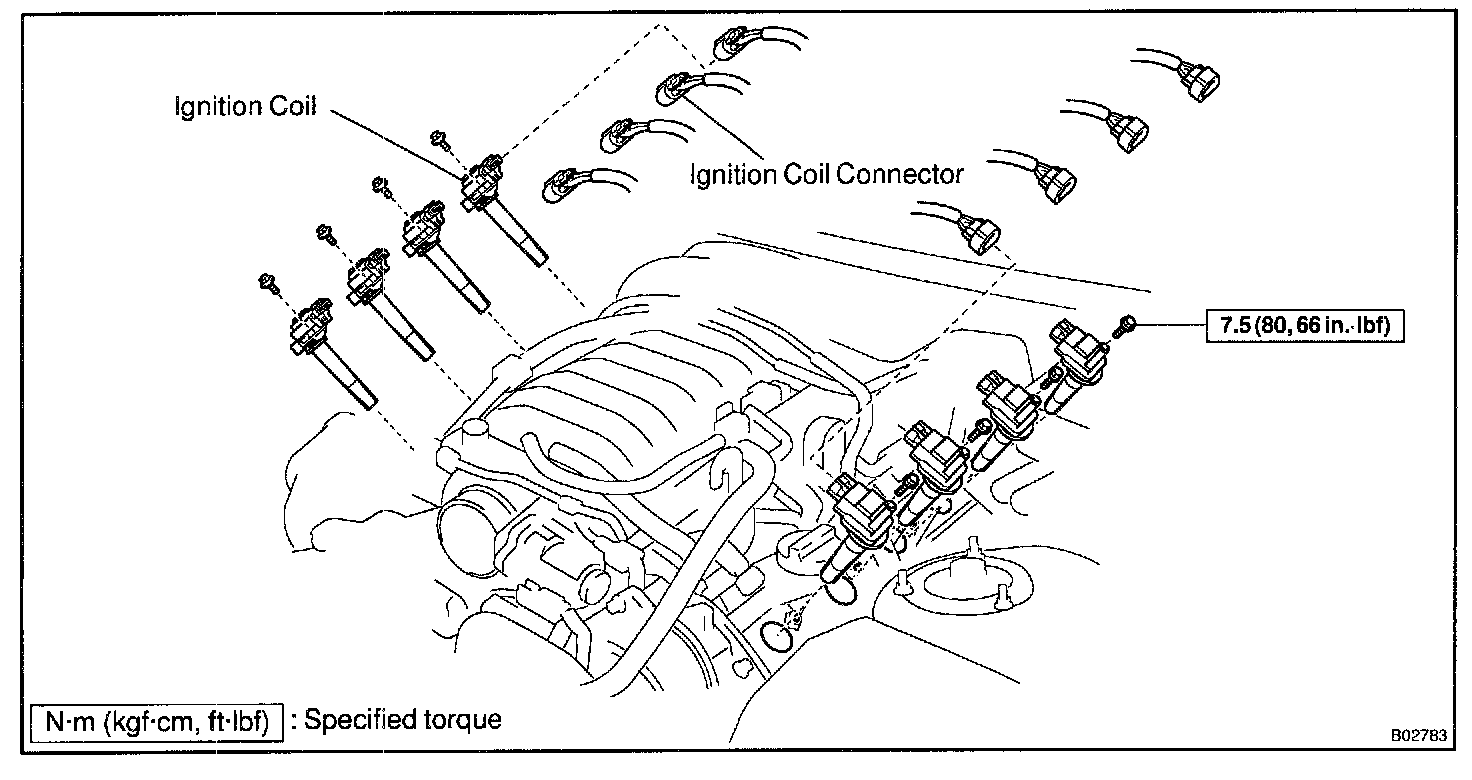

COMPONENTS

REMOVAL

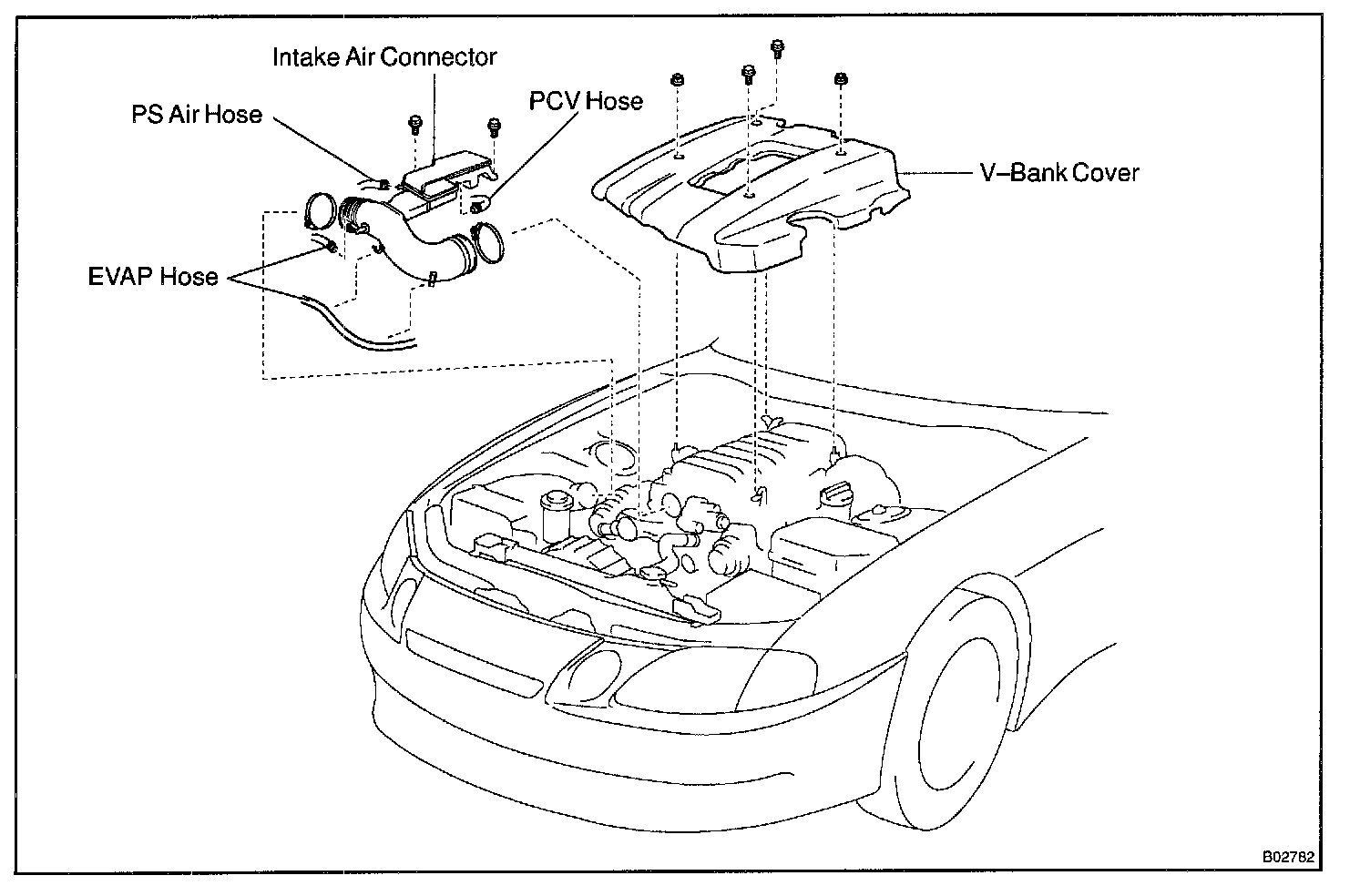

1. REMOVE V-BANK COVER
2. REMOVE INTAKE AIR CONNECTOR

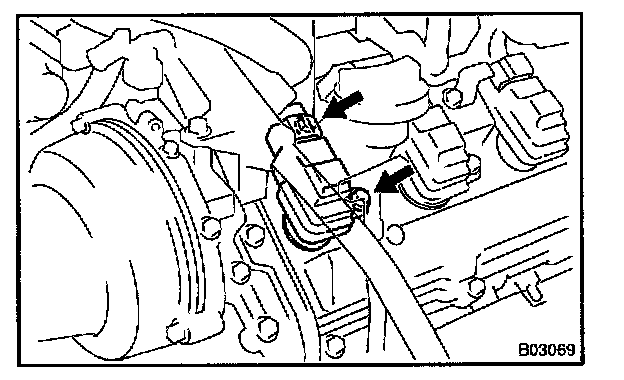

3. DISCONNECT IGNITION COIL CONNECTORS

4. REMOVE IGNITION COILS FROM SPARK PLUGS
Remove the 8 bolts and 8 ignition coils.

Torque: 7.5 Nm (80 kg.cm, 66 in.lb)

INSTALLATION
Installation is in the reverse order of removal.
