ABS W/Traction Control (TRAC)

CIRCUIT DESCRIPTION
By connecting terminals Tc and El of DLC1 or DLC2, the ECU displays the DTC by blinking the TRAC OFF indicator light.

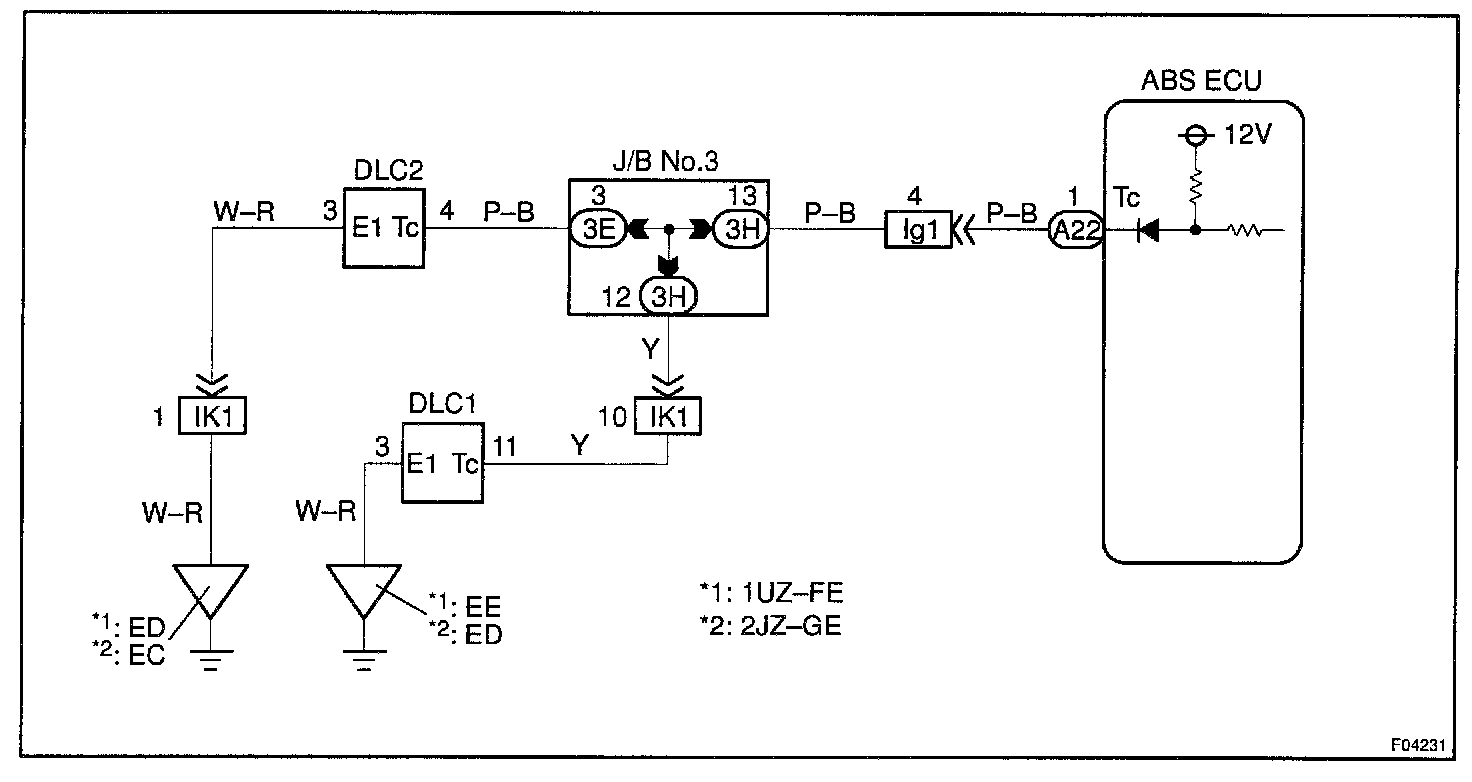

WIRING DIAGRAM

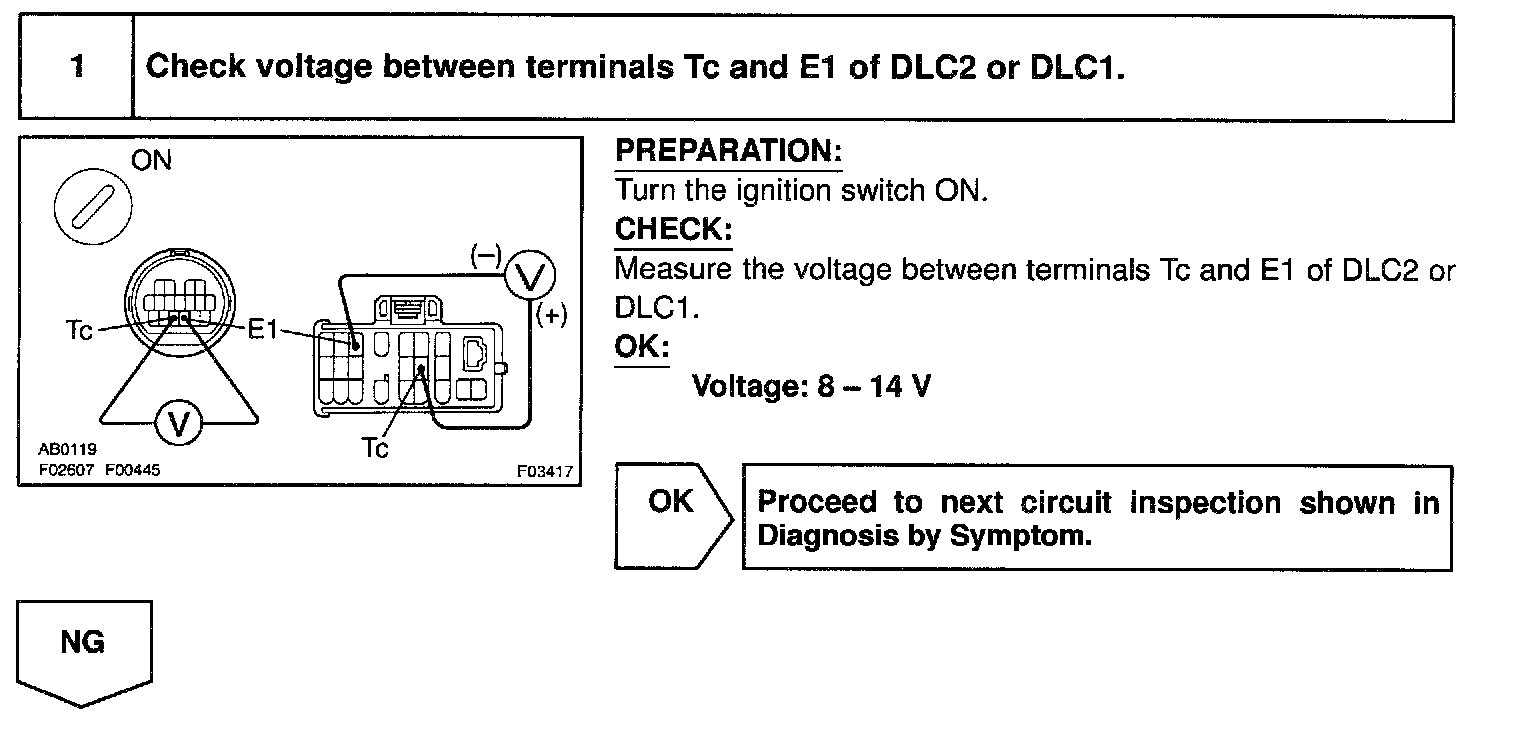

Step 1:

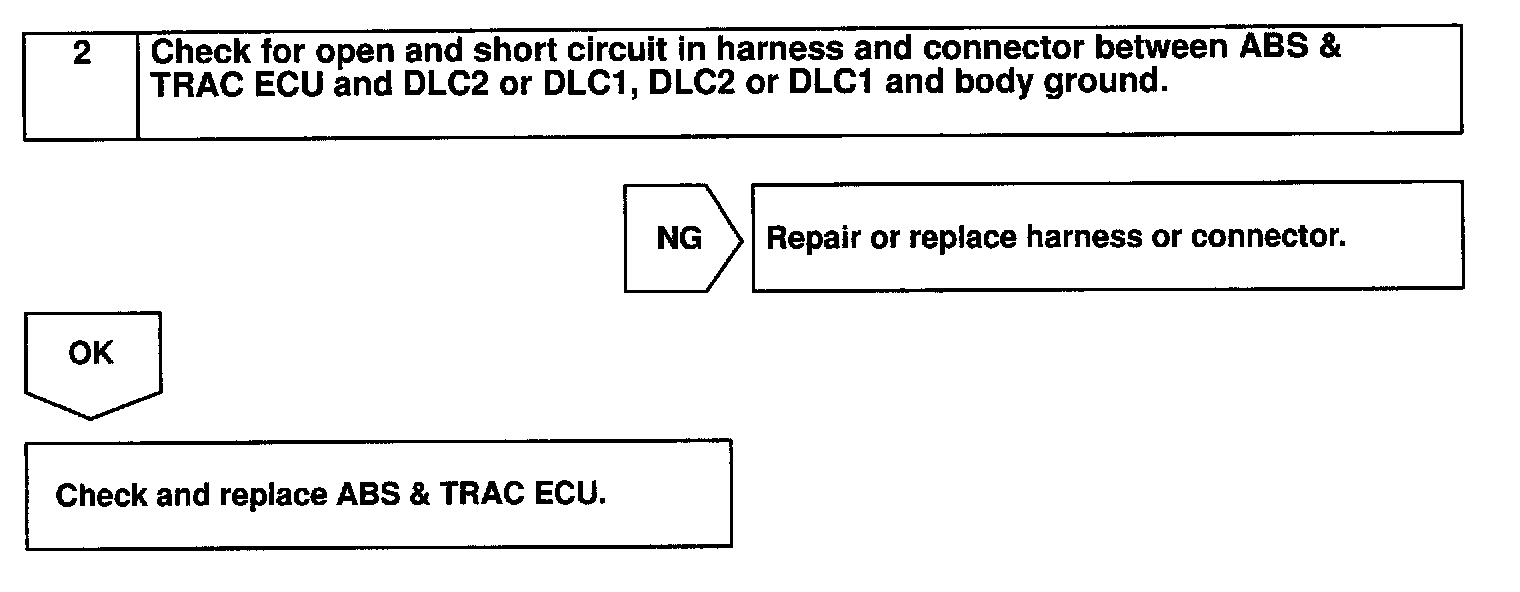

Step 2:

INSPECTION PROCEDURE
