Connecting Rods Specifications
WARNING: This page is about a different car, the 2000 Lexus SC 300, 2000 Lexus GS 300, 1999 Lexus SC 300, and 1999 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTING RODS
| Application | In. (mm) | ||||
|---|---|---|---|---|---|
| Bore Diameter | |||||
| Pin Bushing Bore | .8663-.8667 (22.004-22.014) | ||||

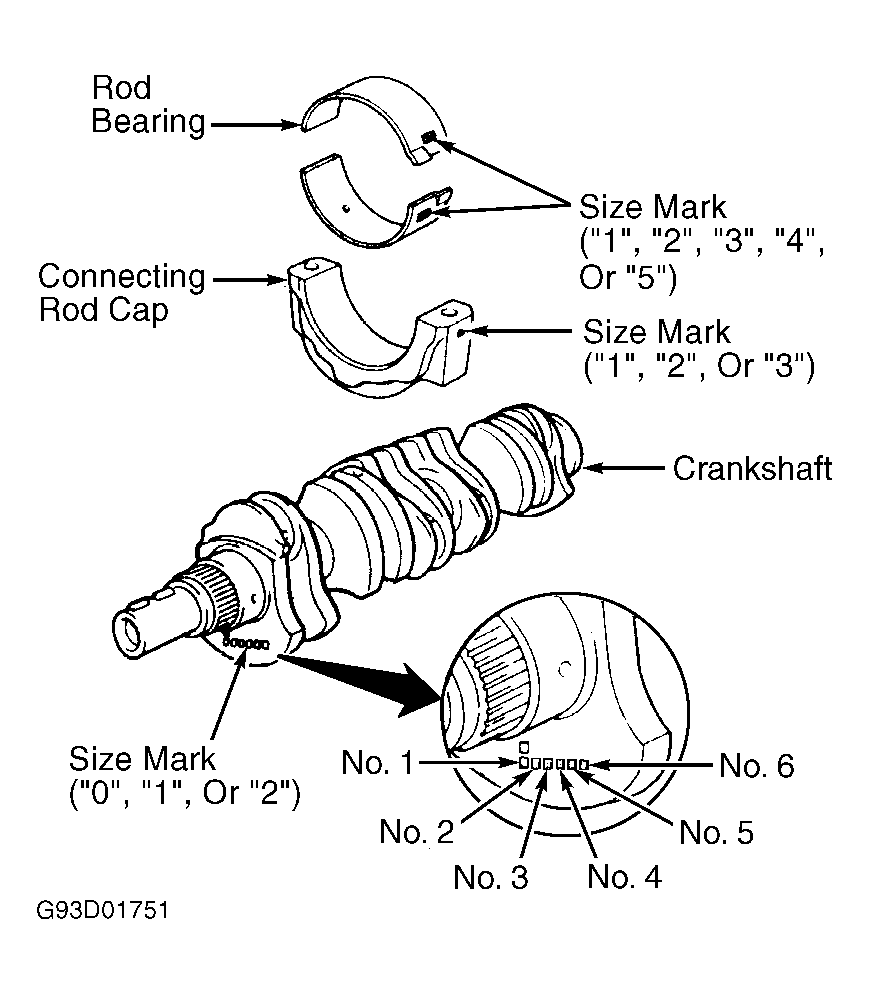

| Crankpin Bore (1) | |||||
| Size Mark "1" | 2.1663-2.1666 (55.024-55.032) | ||||
| Size Mark "2" | 2.1666-2.1668 (55.032-55.037) | ||||
| Size Mark "3" | 2.1668-2.1670 (55.037-55.041) | ||||
| Maximum Bend | .0020 Per 3.94 (.050 Per 100.0) | ||||
| Maximum Twist | .0059 Per 3.94 (.150 Per 100.0) | ||||
| Side Play | |||||
| Standard | .0098-.0158 (.250-.401) | ||||
| Wear Limit | .0197 (.500) | ||||
|
|||||
