Power Tilt & Power Telescoping

NOTE: Use appropriate illustration for overhaul procedure. See Fig 1-Fig 6 .

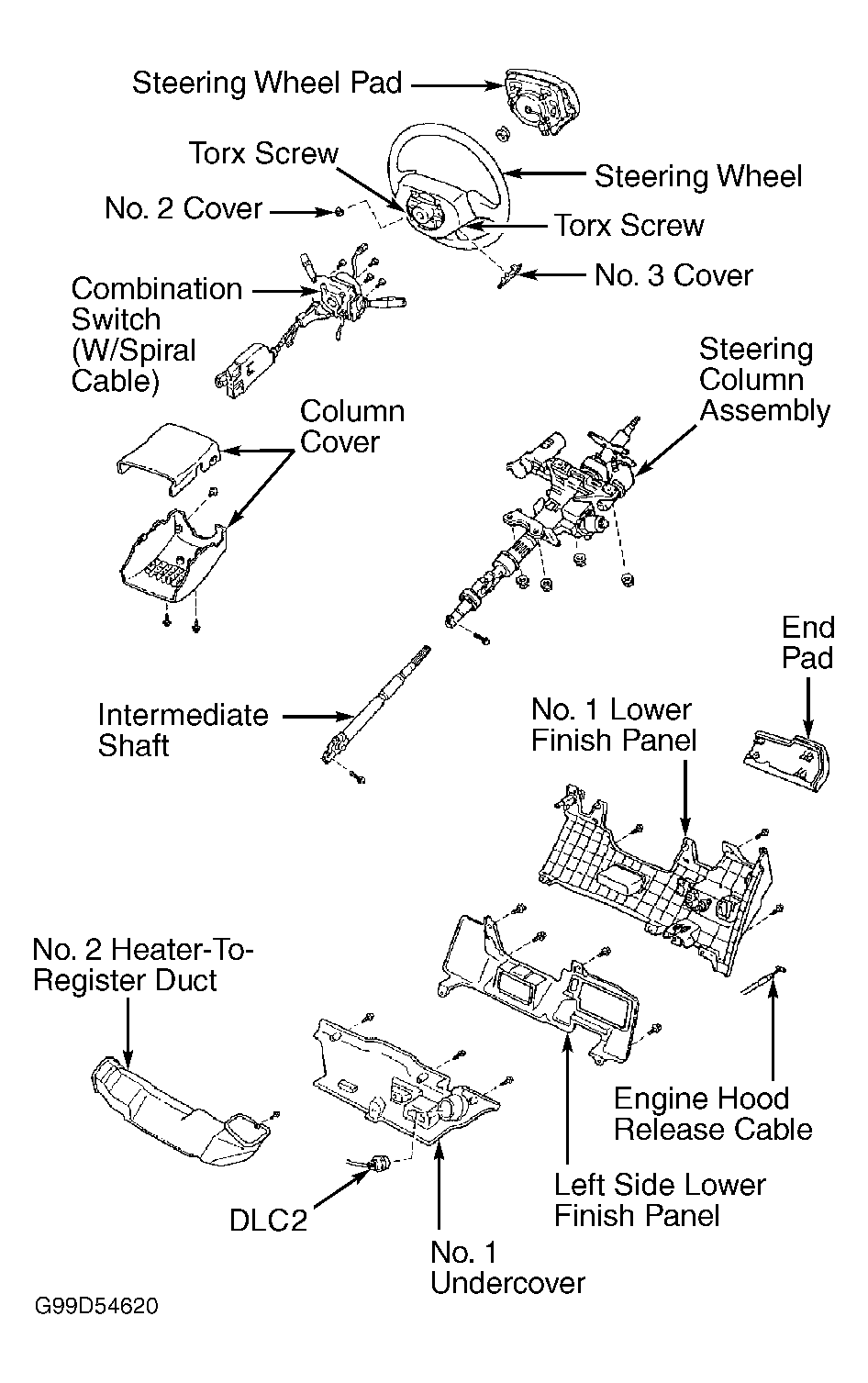

Fig 1: Exploded View Of Power Tilt Column (GS300 & GS400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

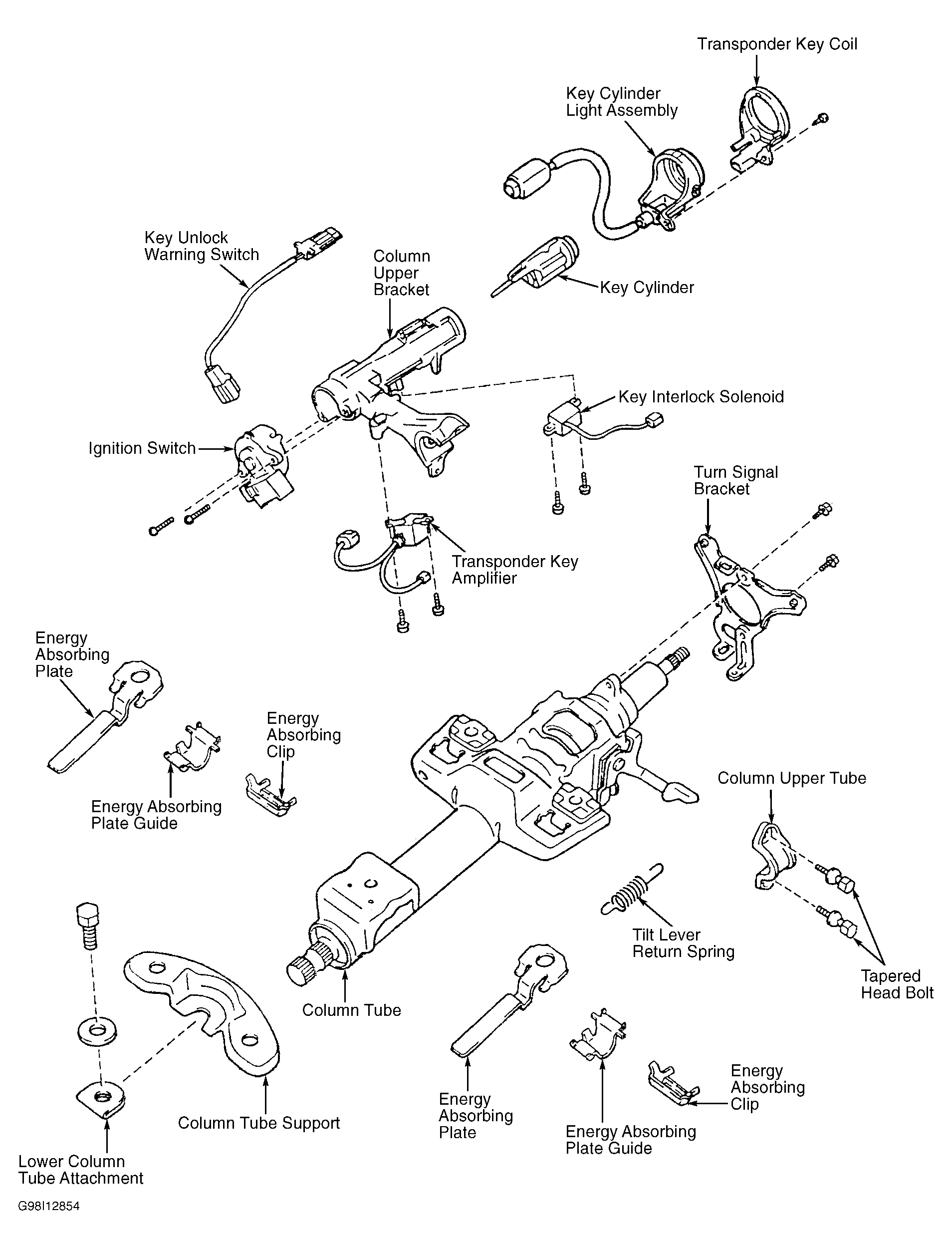

Fig 2: Exploded View Of Power Tilt Column (ES300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

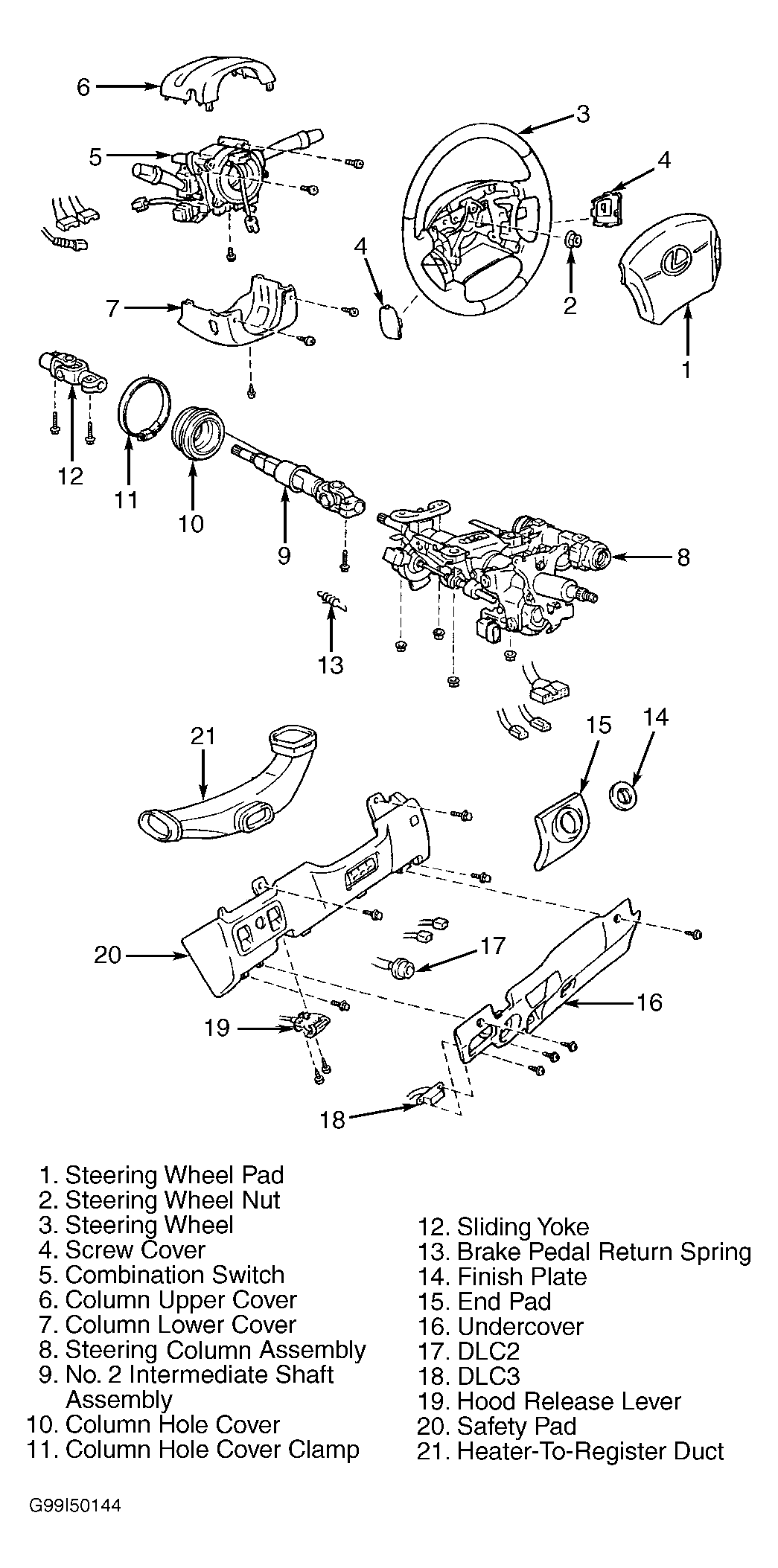

Fig 3: Exploded View Of Power Tilt Column Assembly (LS400 - 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

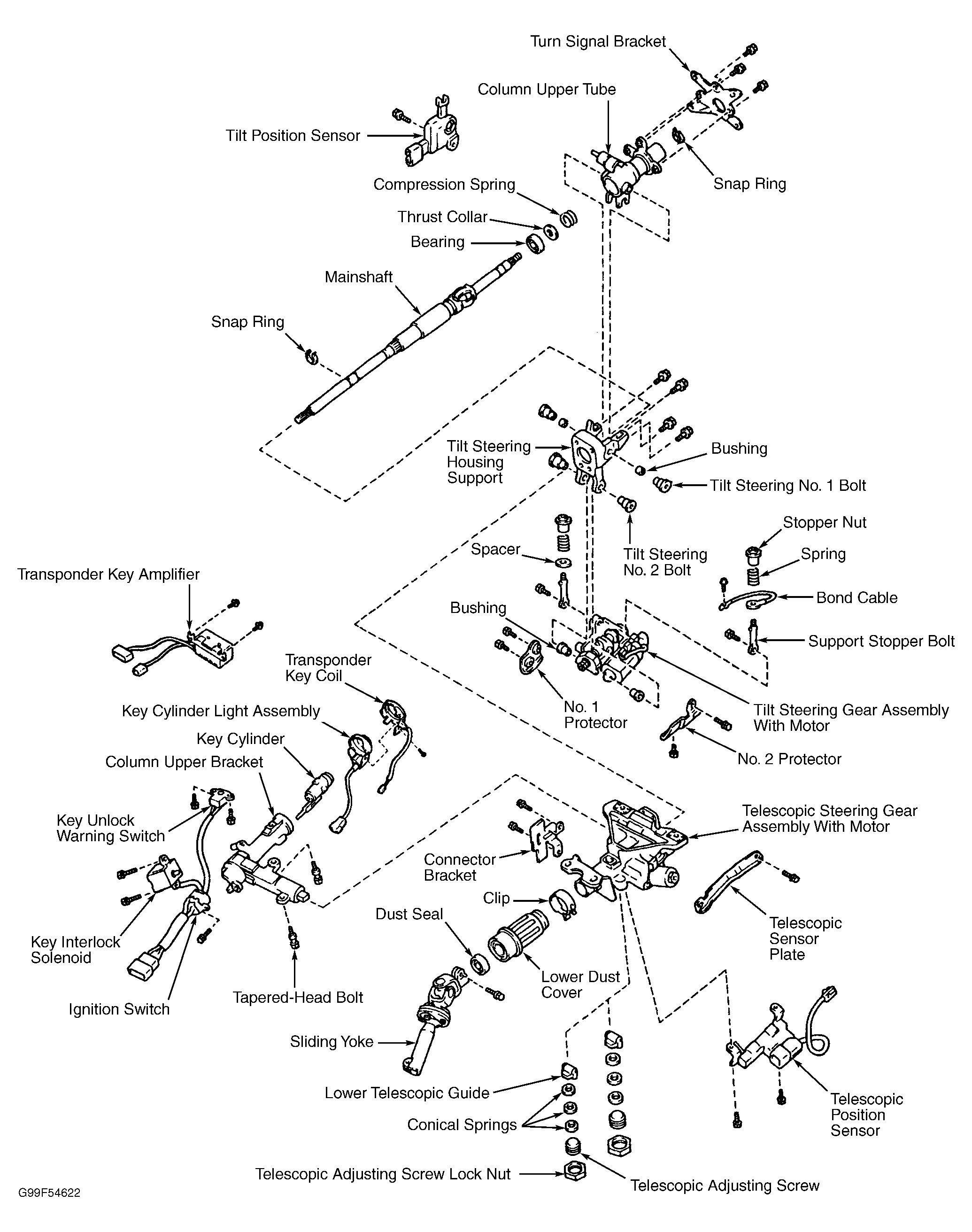

Fig 4: Exploded View Of Power Tilt Column Assembly (LS400 - 2 Of 2)

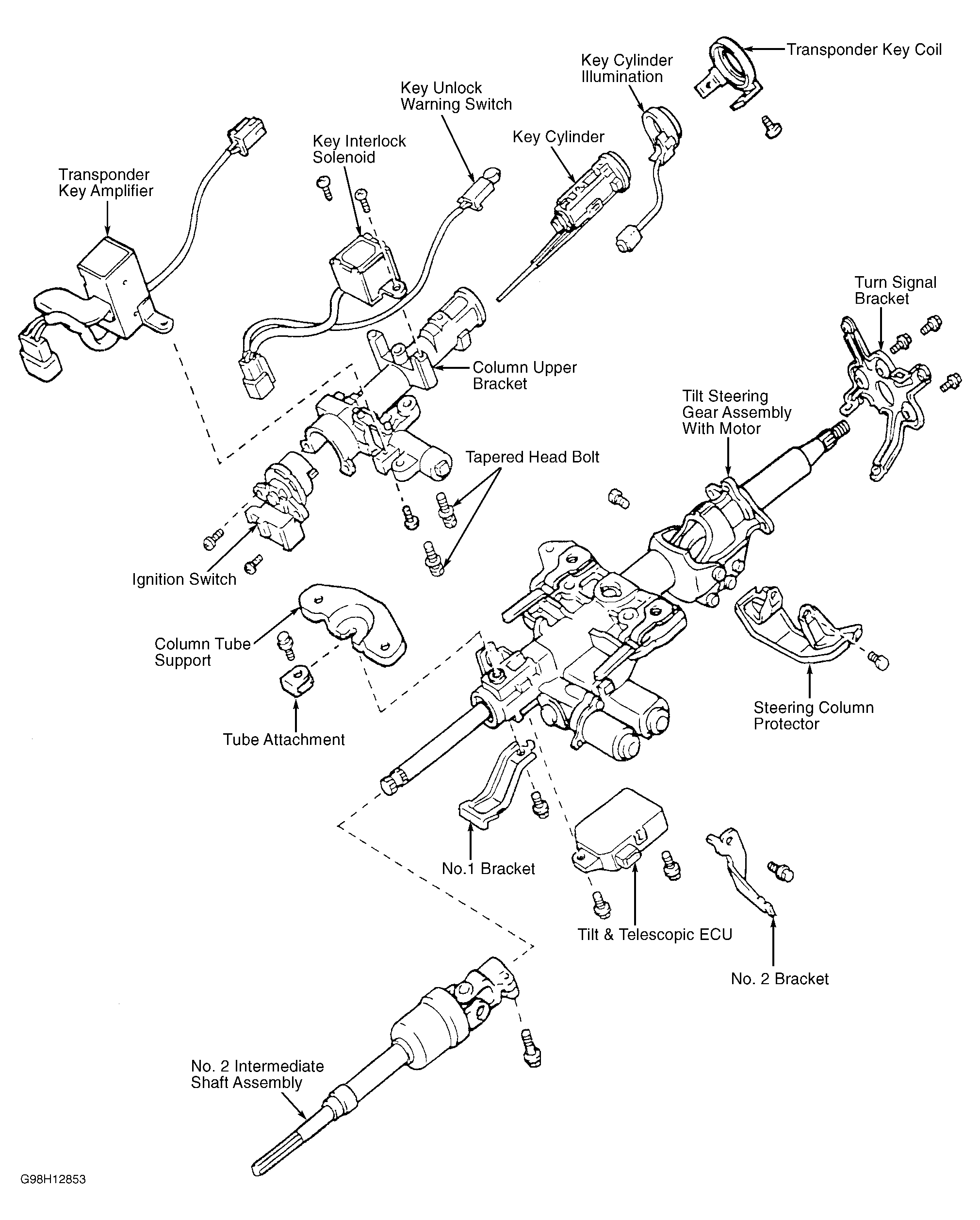

Fig 5: Exploded View Of Steering Column Assembly (SC300 & SC400 - 1 Of 2)

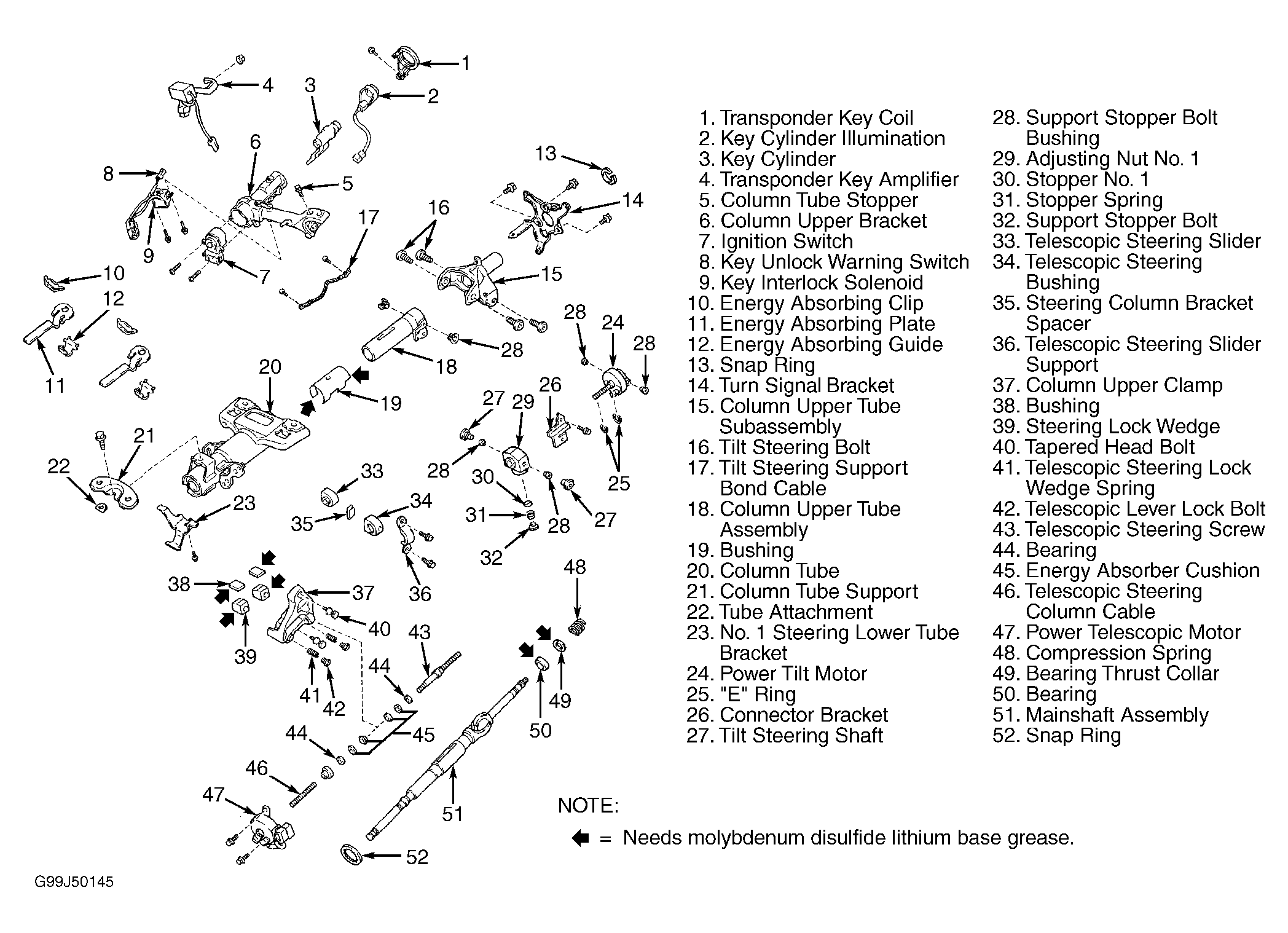

Fig 6: Exploded View Of Steering Column Assembly (SC300 & SC400 - 2 Of 2)
