Component Locations

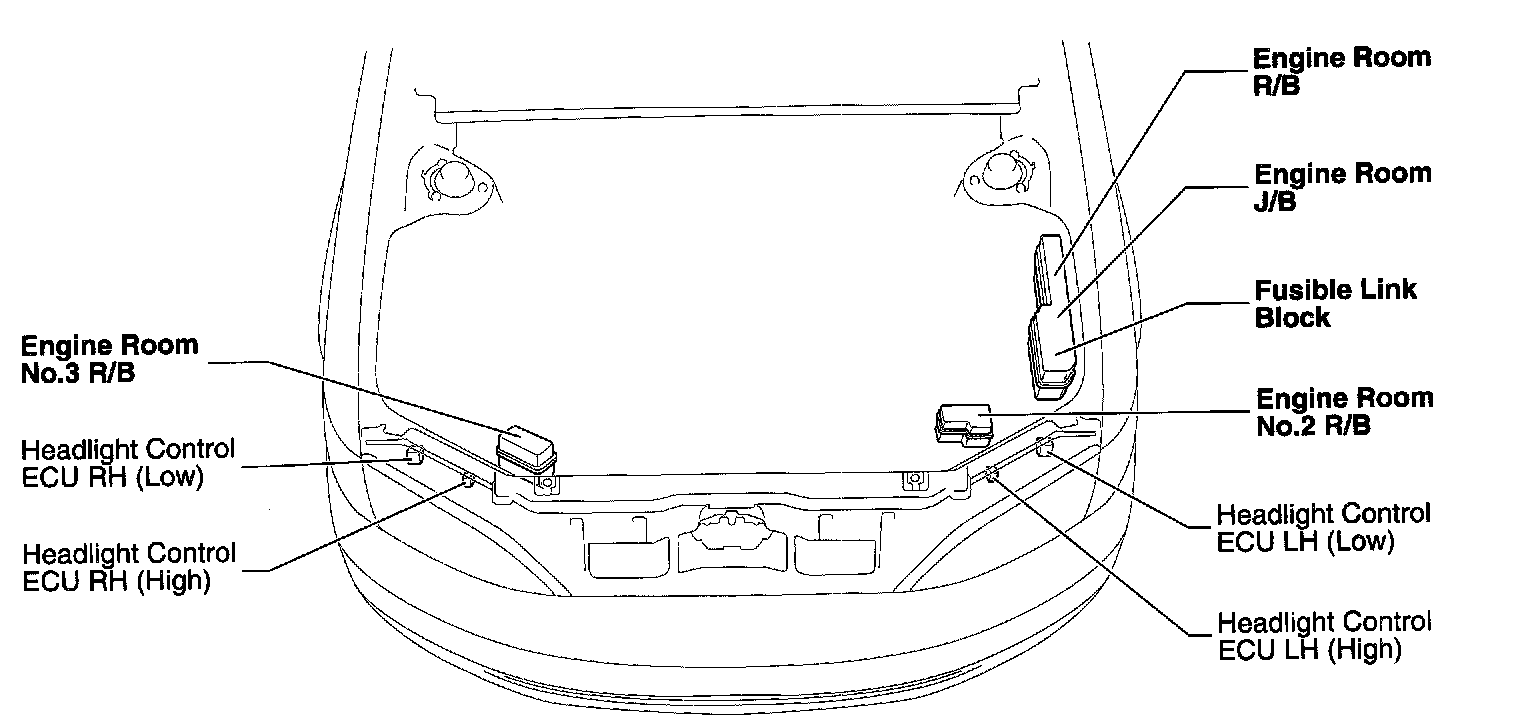

Engine Compartment:

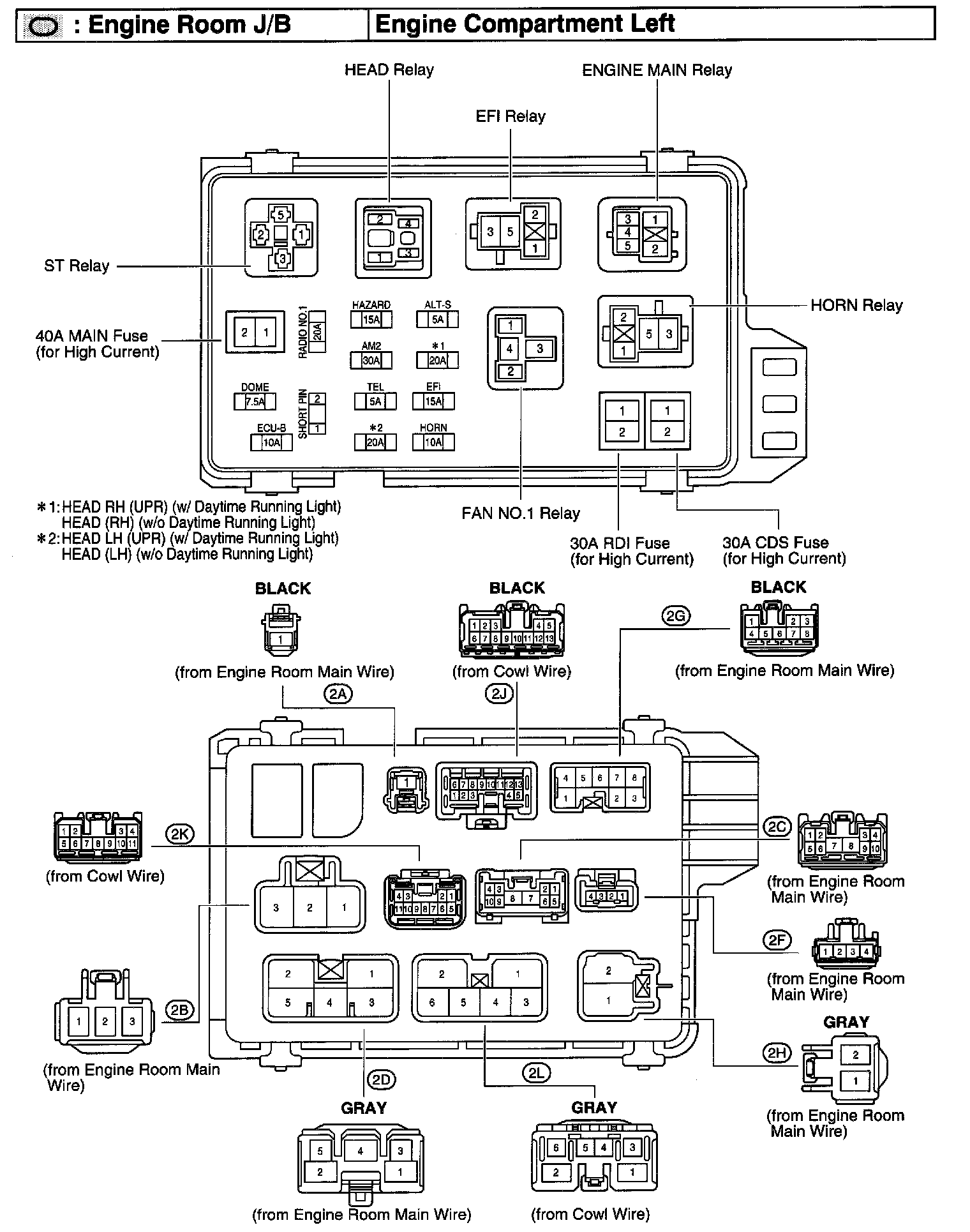

Engine Room J/B:



Engine Room R/B:



Fusible Link Block:



Engine Room No.2 R/B:



Engine Room No.3 R/B:
