Charging Systems: Charging: Generator: Removal

  1. REMOVE ENGINE UNDER COVER
  2. REMOVE AIR CLEANER INLET.
  3. REMOVE DRIVE BELT.  Loosen the belt tension by turning the drive belt tensioner counterclockwise, and remove the dive belt.
    NOTE: The tensioner pulley bolt has a left-hand thread.

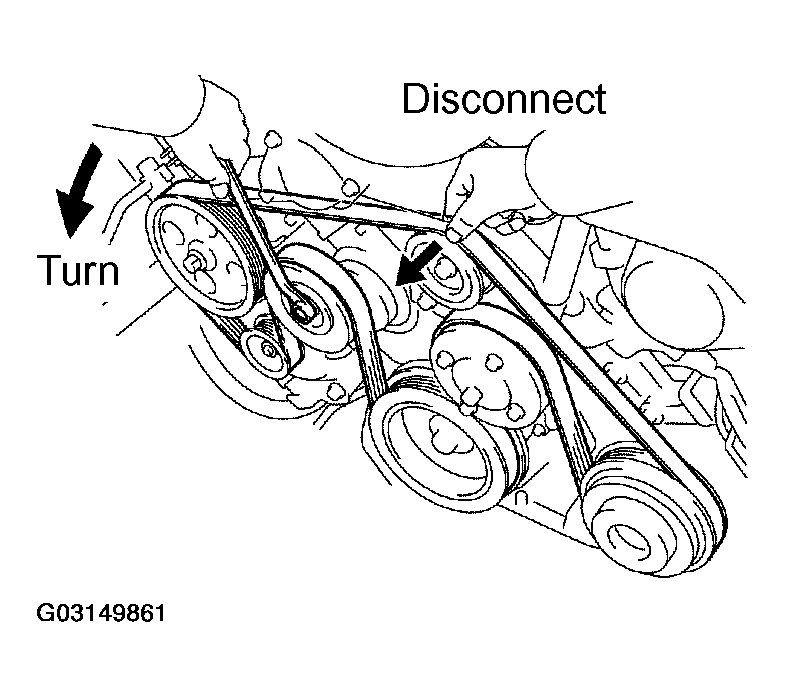

    Fig 1: Loosening Drive Belt Tension
    G03149861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE PS PUMP PULLEY.  Using SST (SST 09960-10010, 09962-01000, 09963-01000), remove the nut and PS pump pulley.

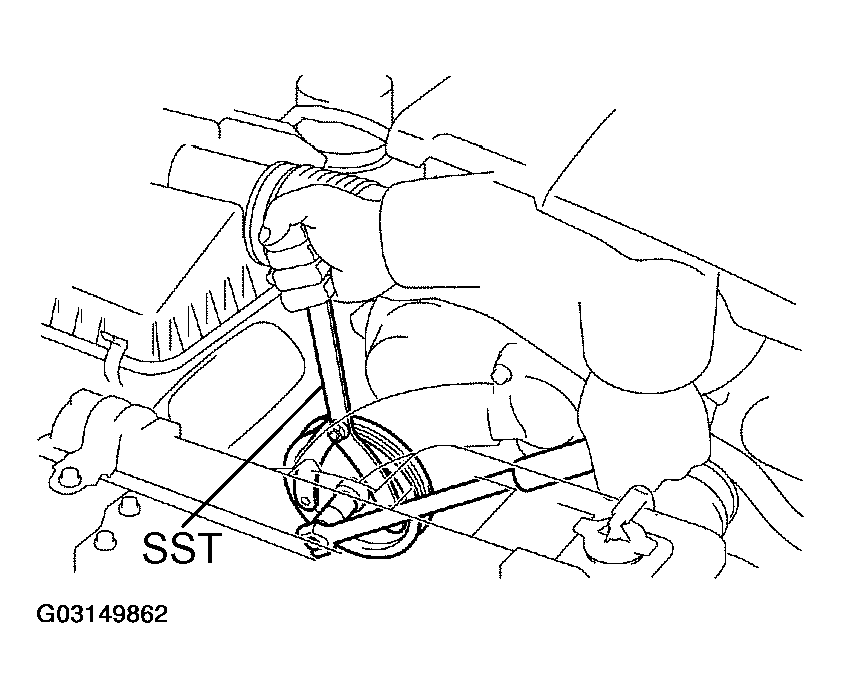

    Fig 2: Removing Power Steering Pump Pulley
    G03149862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE ALTERNATOR
    1. Disconnect the generator connector.
    2. Remove the rubber cap and nut, and disconnect the generator wire.
    3. Disconnect these parts:
      1. Disconnect ground cable.
      2. Disconnect wire (for generator wire) from clamp on cord clip.
      3. Disconnect wire (for generator connector) from clamp on cord clip. Take out the vinyl tape, and disconnect the wire from the cord clip.
      4. Disconnect PS oil hose from No. 1 oil pan.

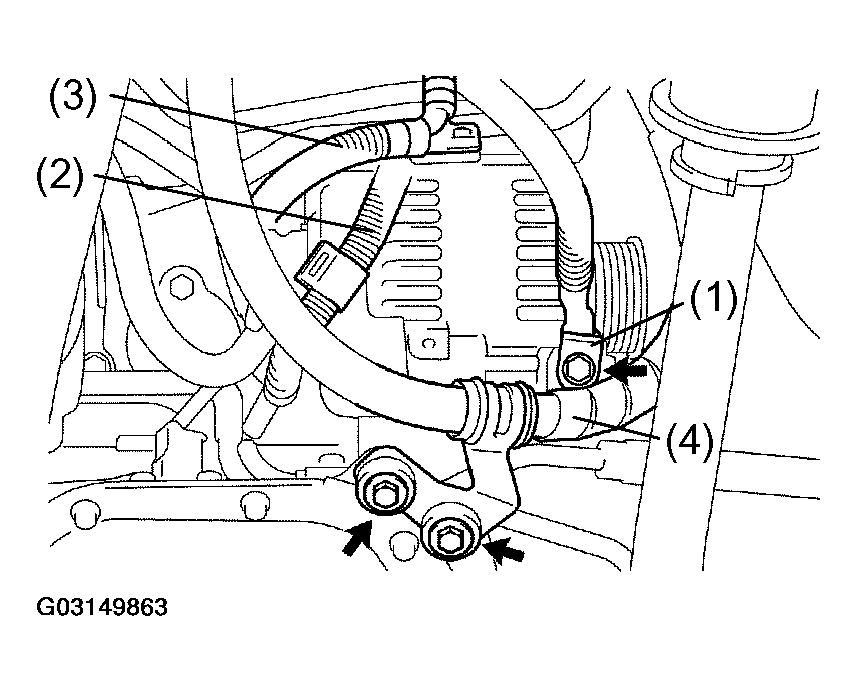

        5. Fig 3: Identifying Ground Cable, Generator Wire, Generator Connector Wire & Power Steering Oil Hose
        G03149863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the nut, bolt, stay and generator.
    5. Remove the 2 clamps from the cord clips on the generator.

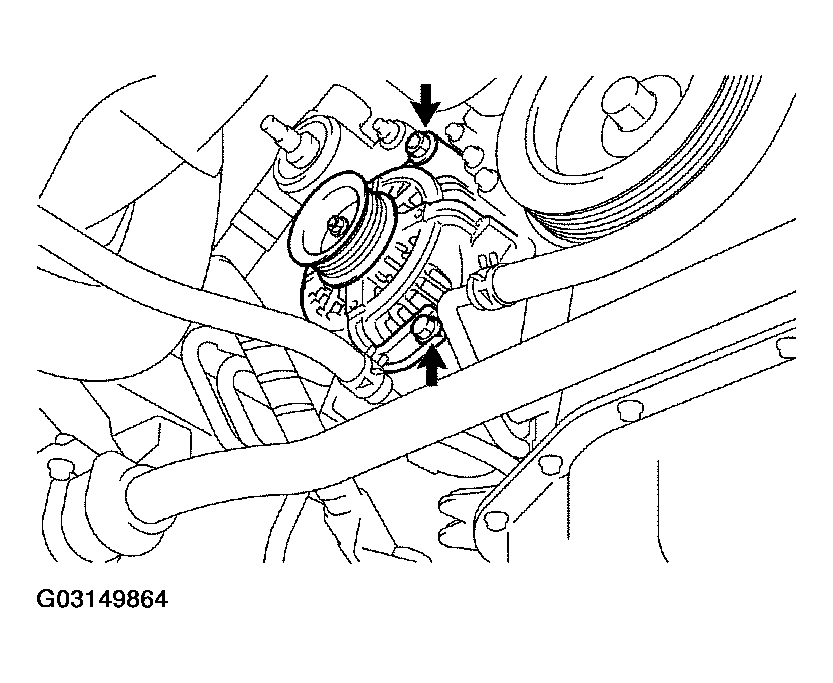

      Fig 4: Removing Generator Assembly
      G03149864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
