Section 8 (Radiator): Installation

WARNING: This page is about a different car, the 2001 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ELECTRIC COOLING FAN TO RADIATOR.
    1. Install the electric cooling fan with the 6 bolts.
      1. Torque:  5.0 N.m (50 kgf.cm, 44 in. lbf)
    2. Connect the radiator reservoir hose to the radiator.
  2. INSTALL RADIATOR AND ELECTRIC COOLING FAN ASSEMBLY.
    1. Install the 2 lower radiator supports to the radiator.
    2. Attach the 2 lower radiator supports on the radiator to the body bracket.
    3. Install the radiator and electric cooling fan assembly with the 2 upper radiator supports and 2 nuts.
      1. Torque:  13.5 N.m (135 kgf.cm, 10 ft.lbf)

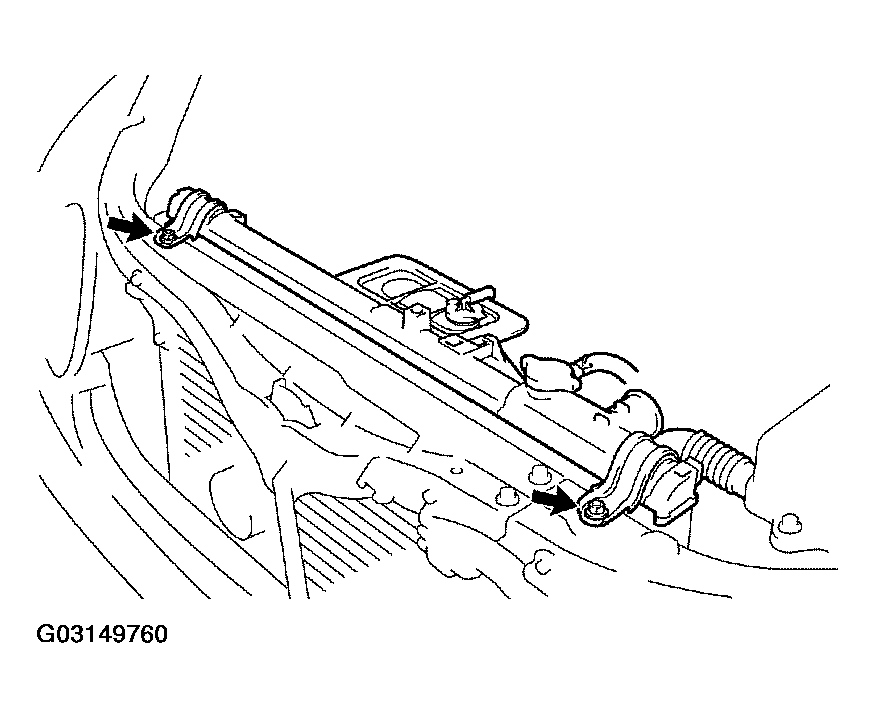

        2. Fig 1: Installing Upper Radiator Supports
        G03149760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect these parts:
      • Upper radiator hose to radiator
      • Lower radiator hose to radiator
      • ECM outlet duct to ECM box
      • Wire for electric cooling fan to clamp on electric cooling fan
      • 2 electric cooling fan connectors
      • ECT switch connector for electric cooling fan
      • 2 oil cooler hoses for A/T to radiator
  3. INSTALL AIR CLEANER AND MAF METER ASSEMBLY.
  4. INSTALL AIR CLEANER INLET.
  5. FILL WITH ENGINE COOLANT.
  6. START ENGINE AND CHECK FOR ENGINE COOLANT AND A/T FLUID LEAKS.
  7. INSTALL ENGINE UNDER COVER.
