Engine Compartment

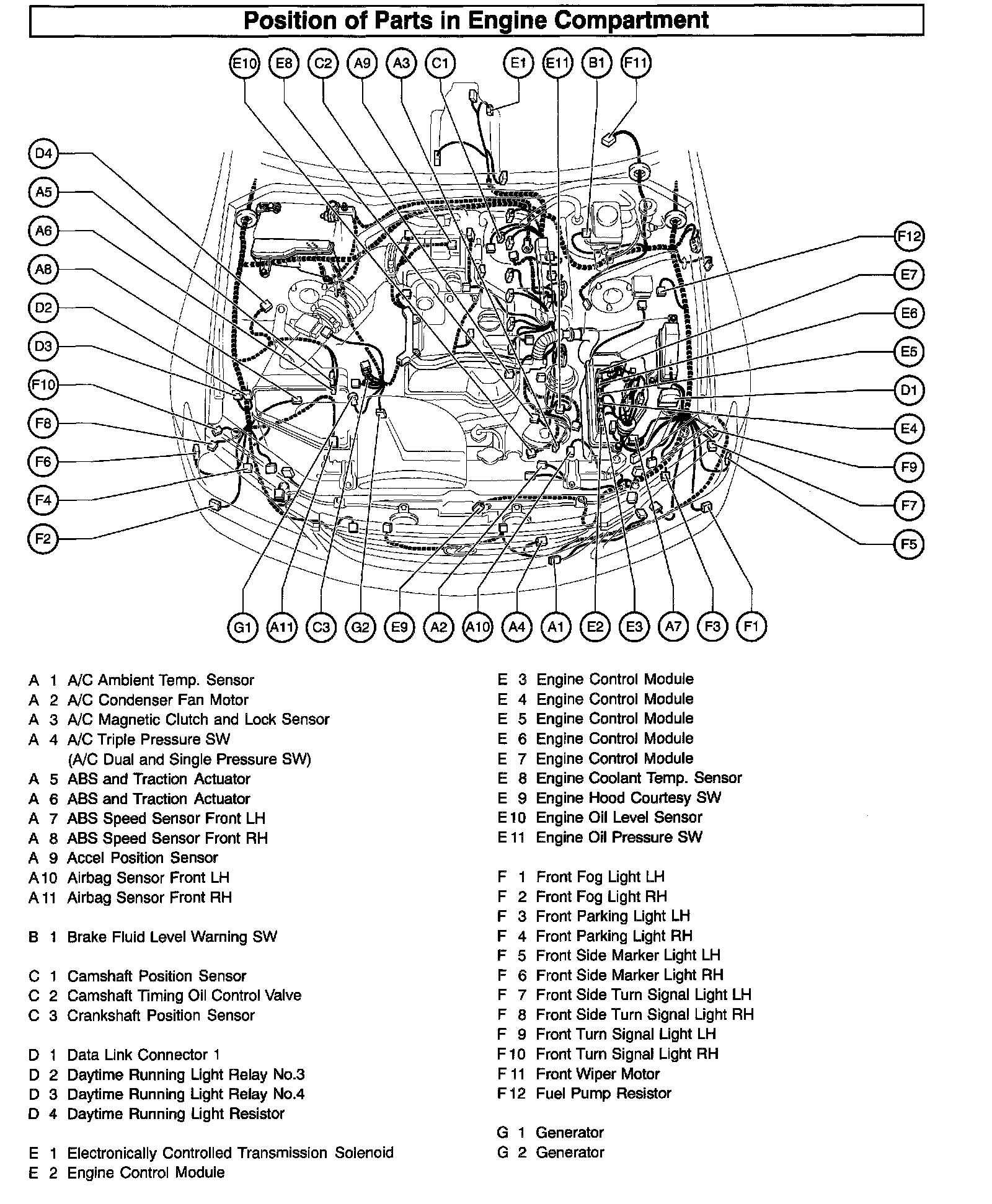

Position Of Parts In Engine Compartment (Part 1):

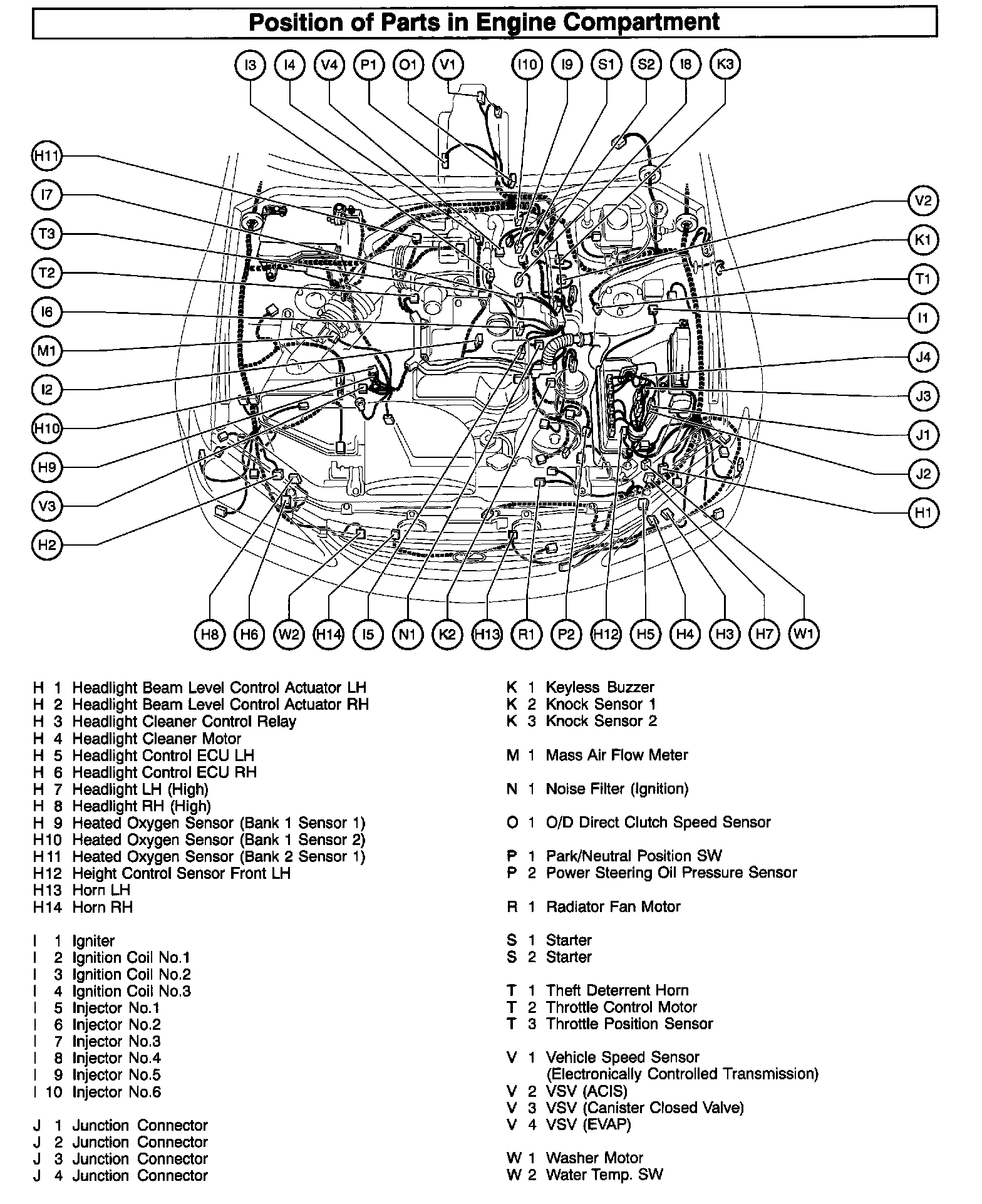

Position Of Parts In Engine Compartment (Part 2):

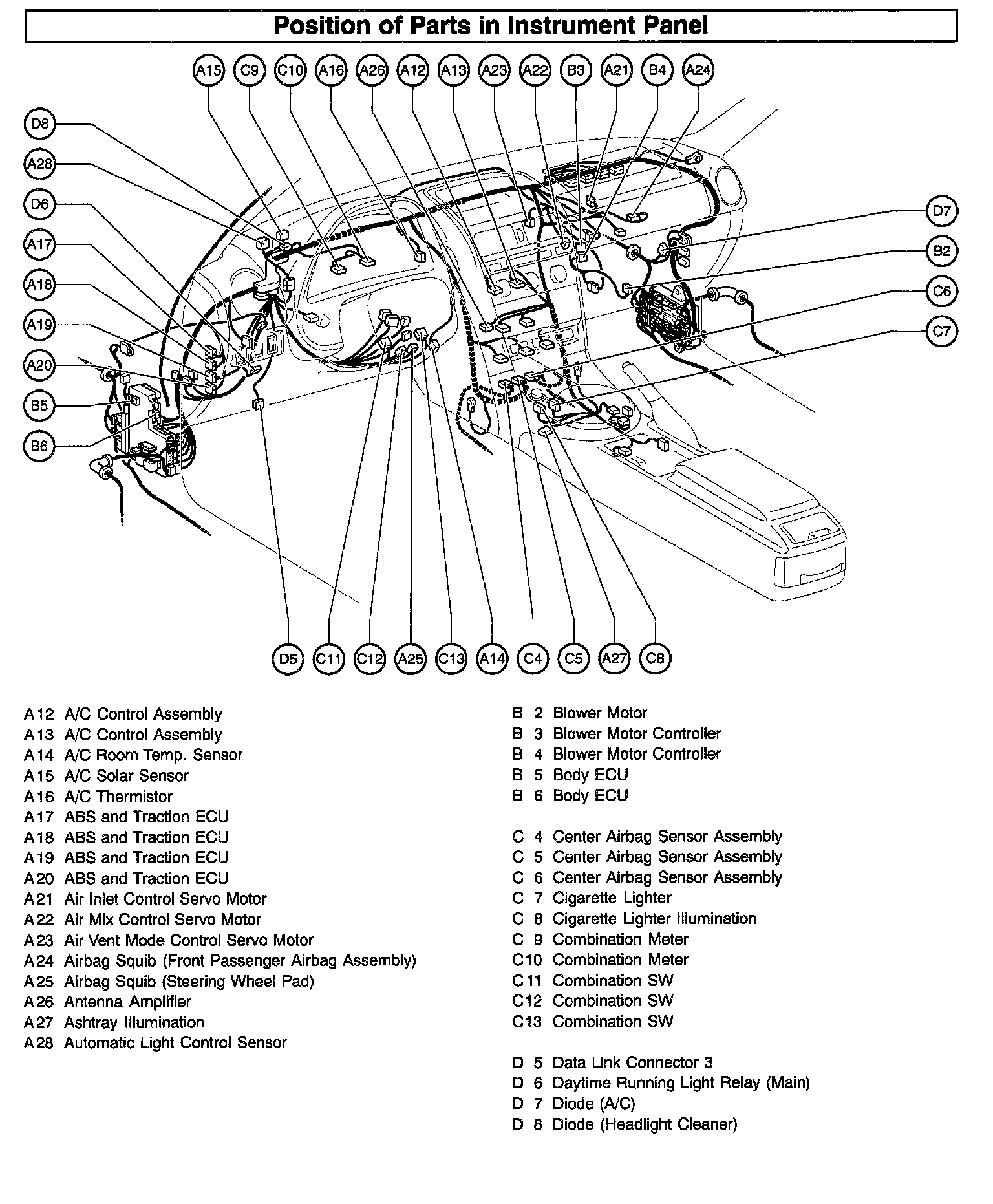

Position Of Parts In Instrument Panel (Part 1):

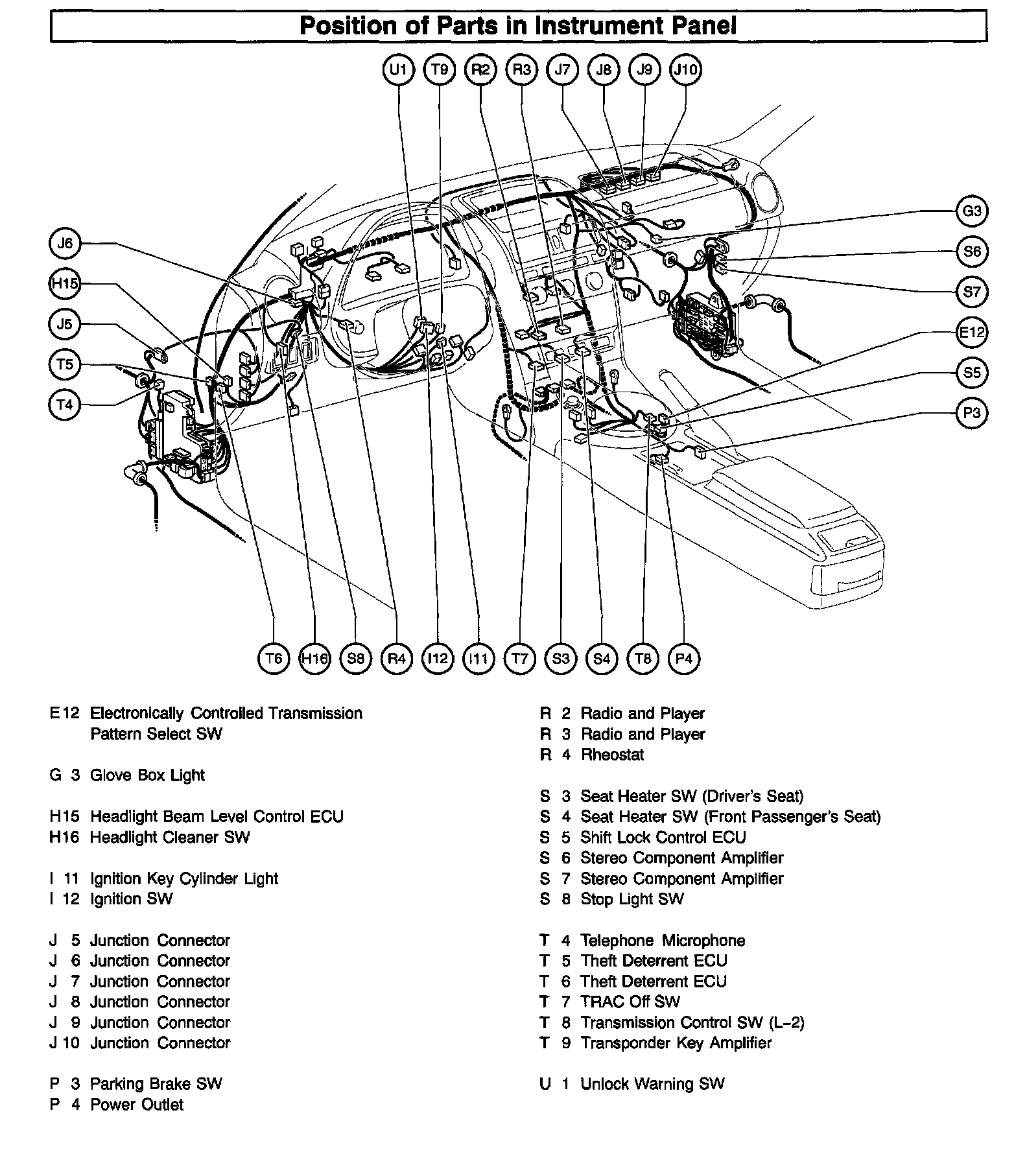

Position Of Parts In Instrument Panel (Part 2):

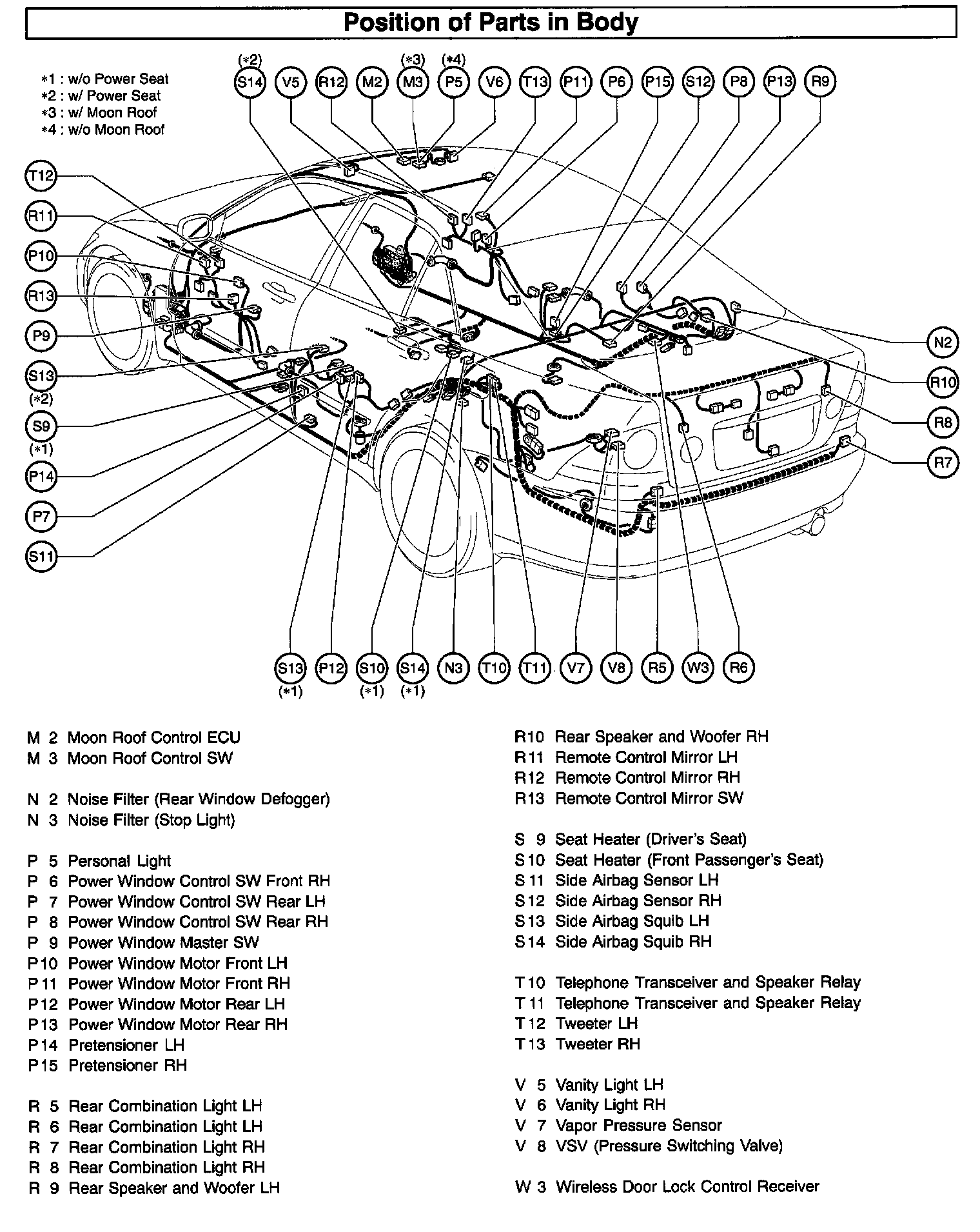

Position Of Parts In Body (Part 1):

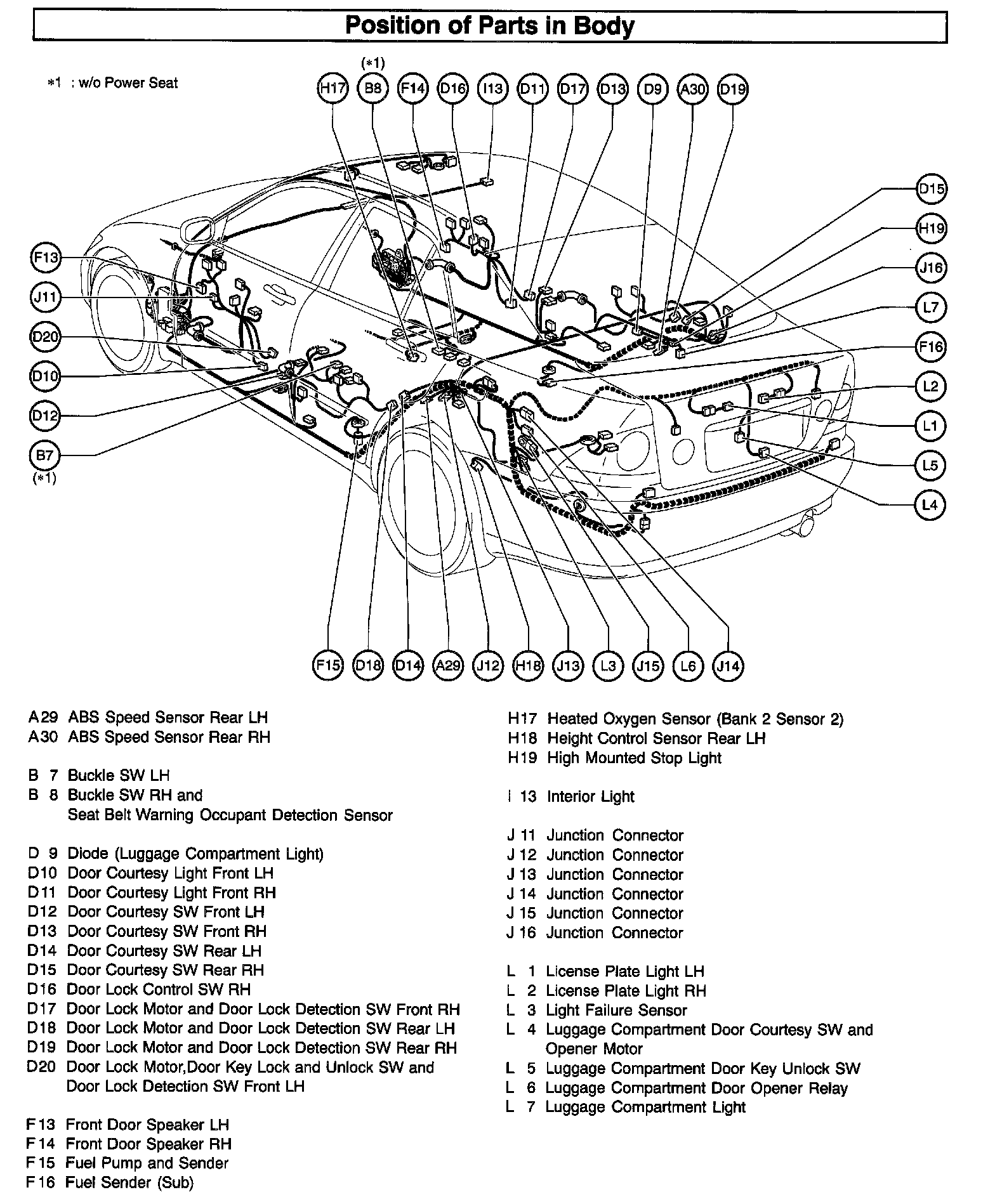

Position Of Parts In Body (Part 2):

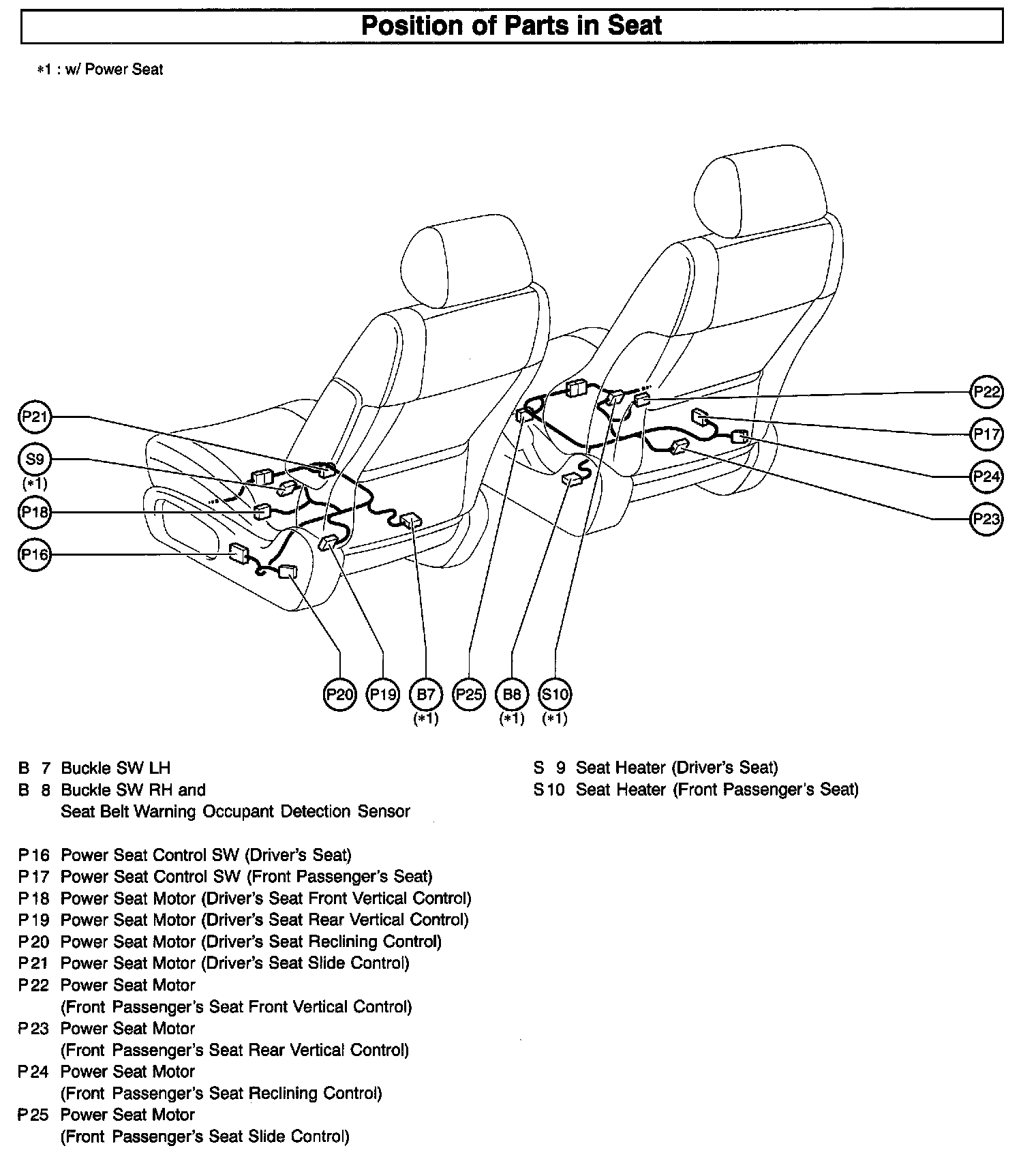

Position Of Parts In Seat:
