Front Speed Sensor: Components

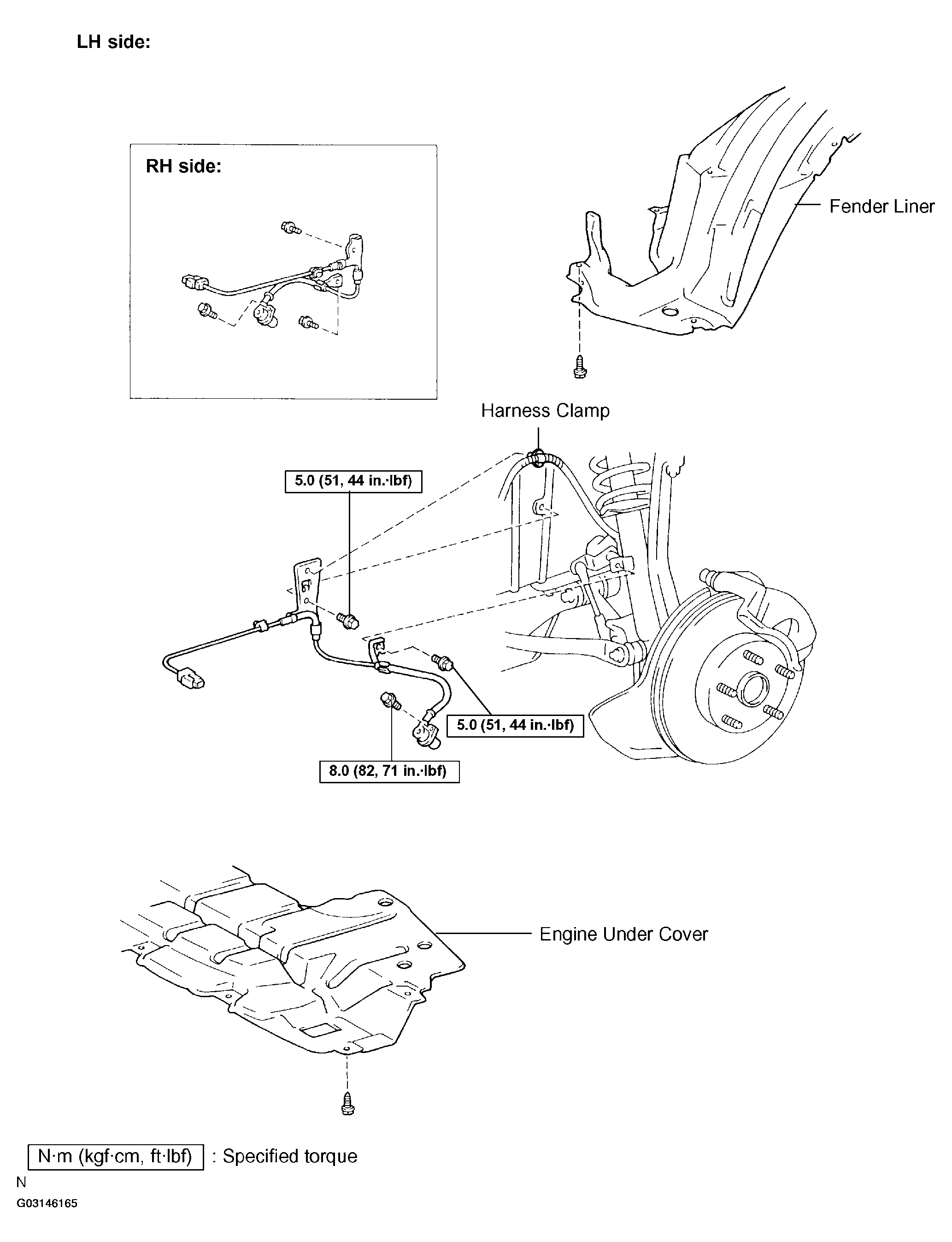

Fig 1: Identifying Components Of Front Speed Sensor
G03146165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
