Component Locations
For component locations, see
Fig 1
.

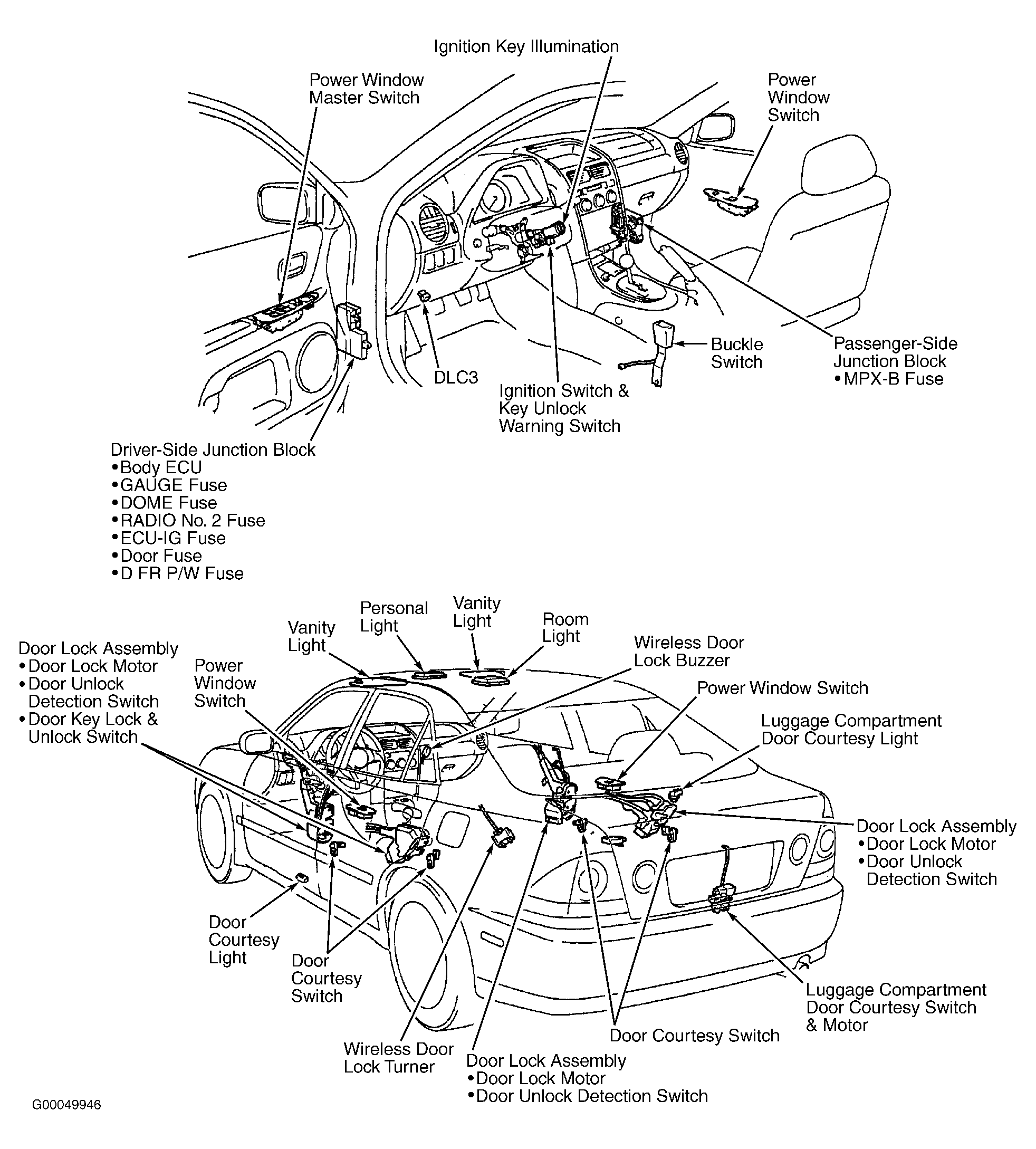

Fig 1: Identifying Body Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
