Charging Systems: Charging: Components

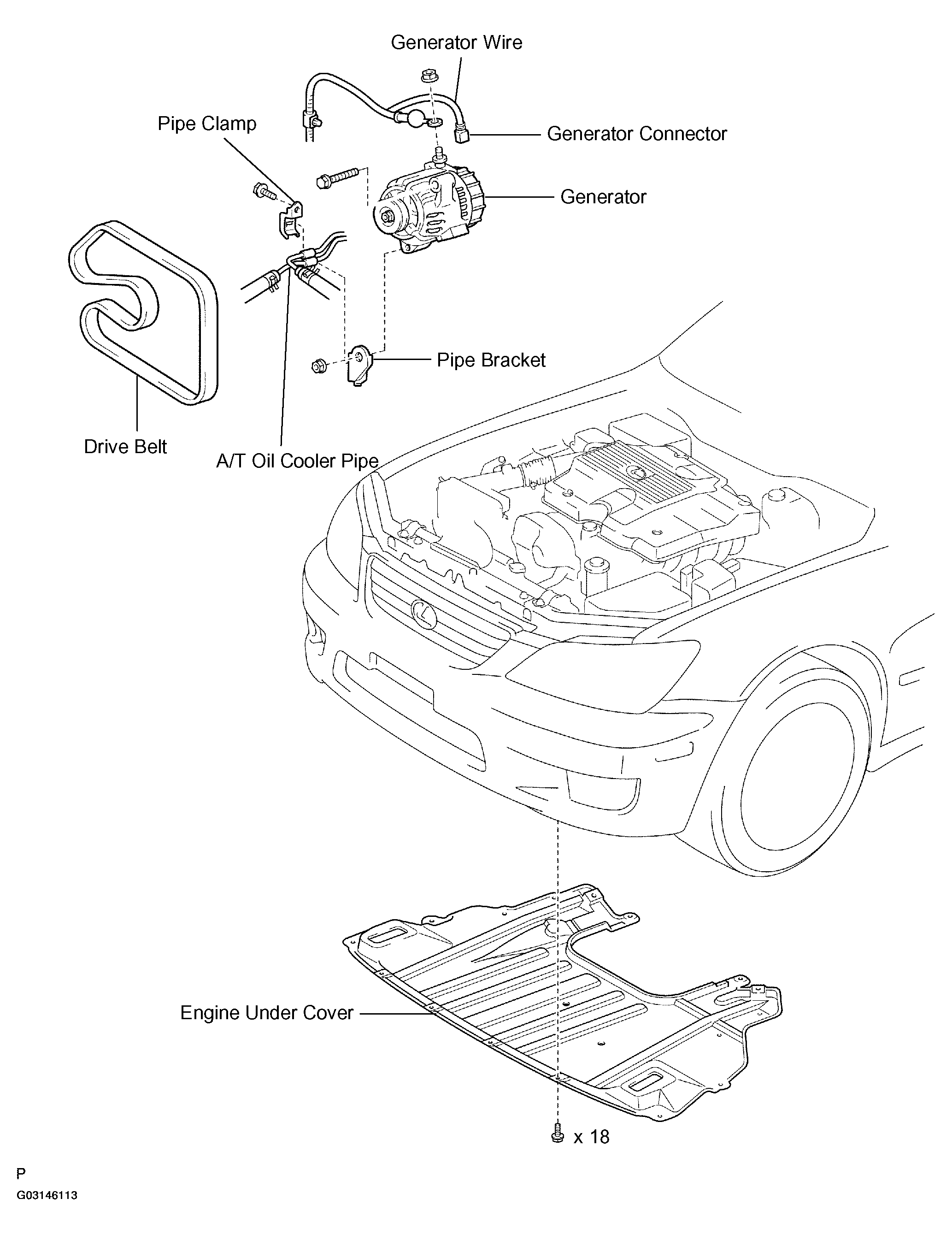

Fig 1: Identifying Components For Generator Removal
G03146113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

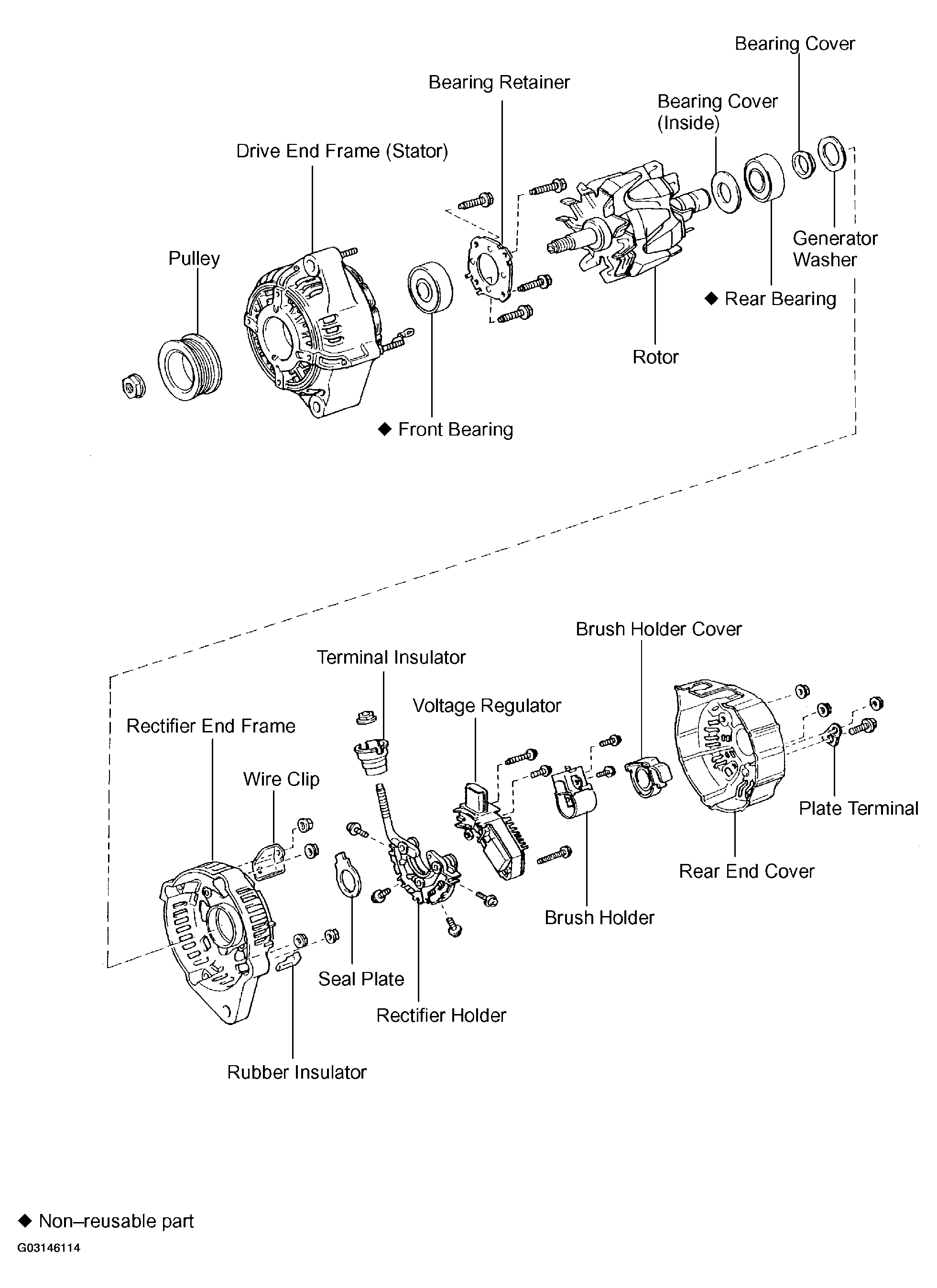

Fig 2: Exploded View Of Generator
G03146114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
