Instrument Panel

NOTE: Instrument panel fuses are located under the instrument panel, on the drivers and passengers side of the vehicle. See Fig 1.

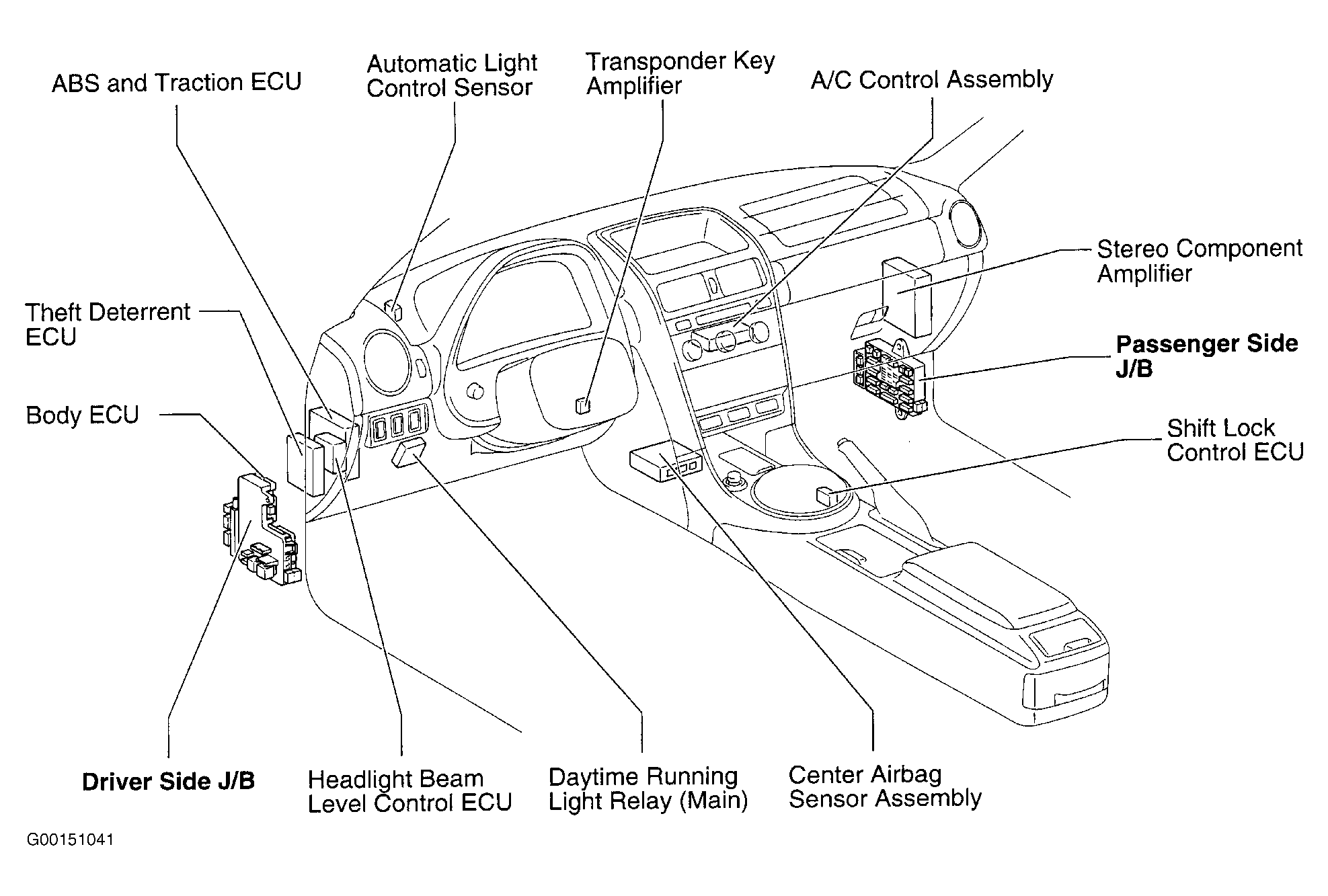

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

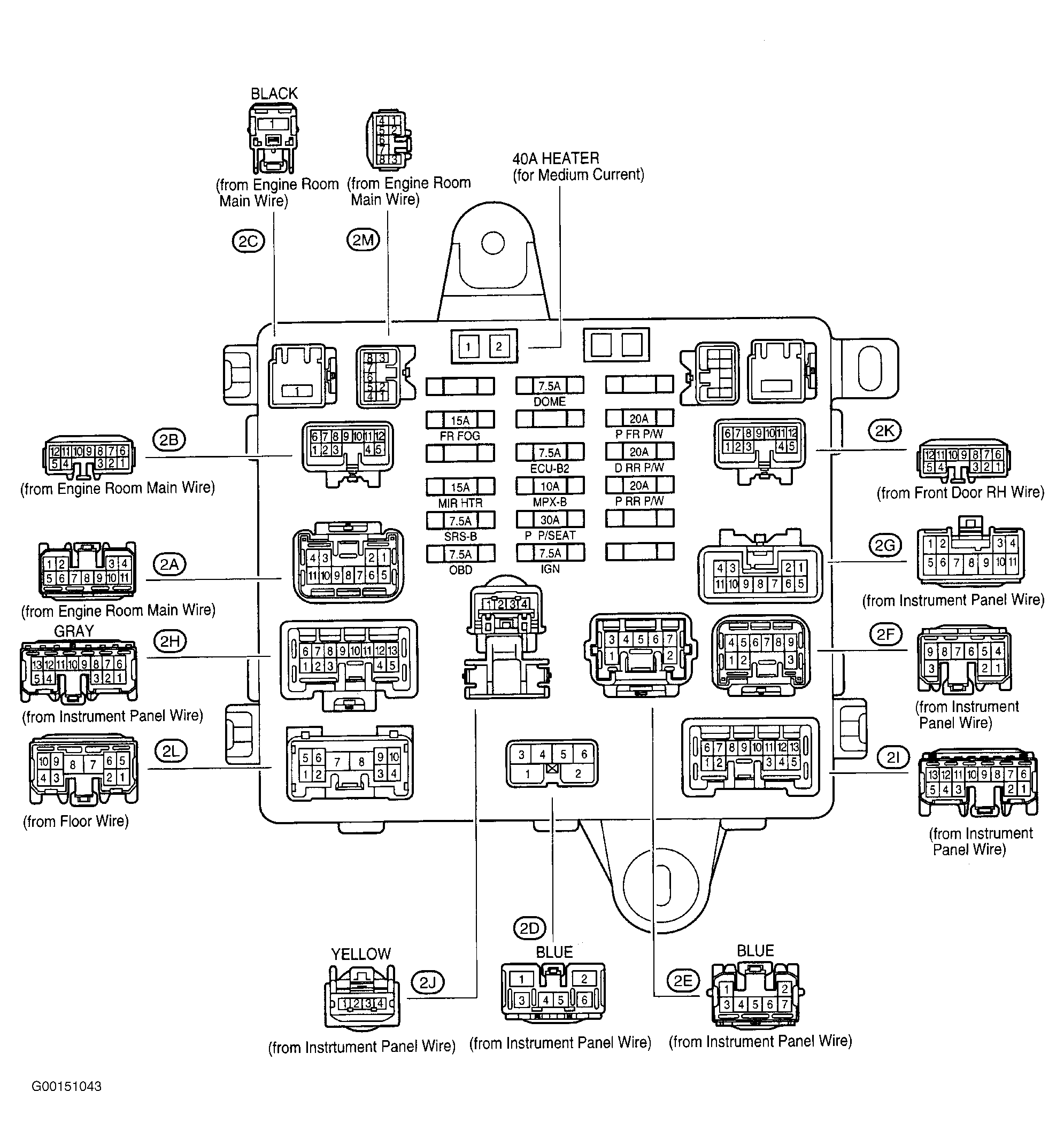

Fig 2: Identifying Passenger Side J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

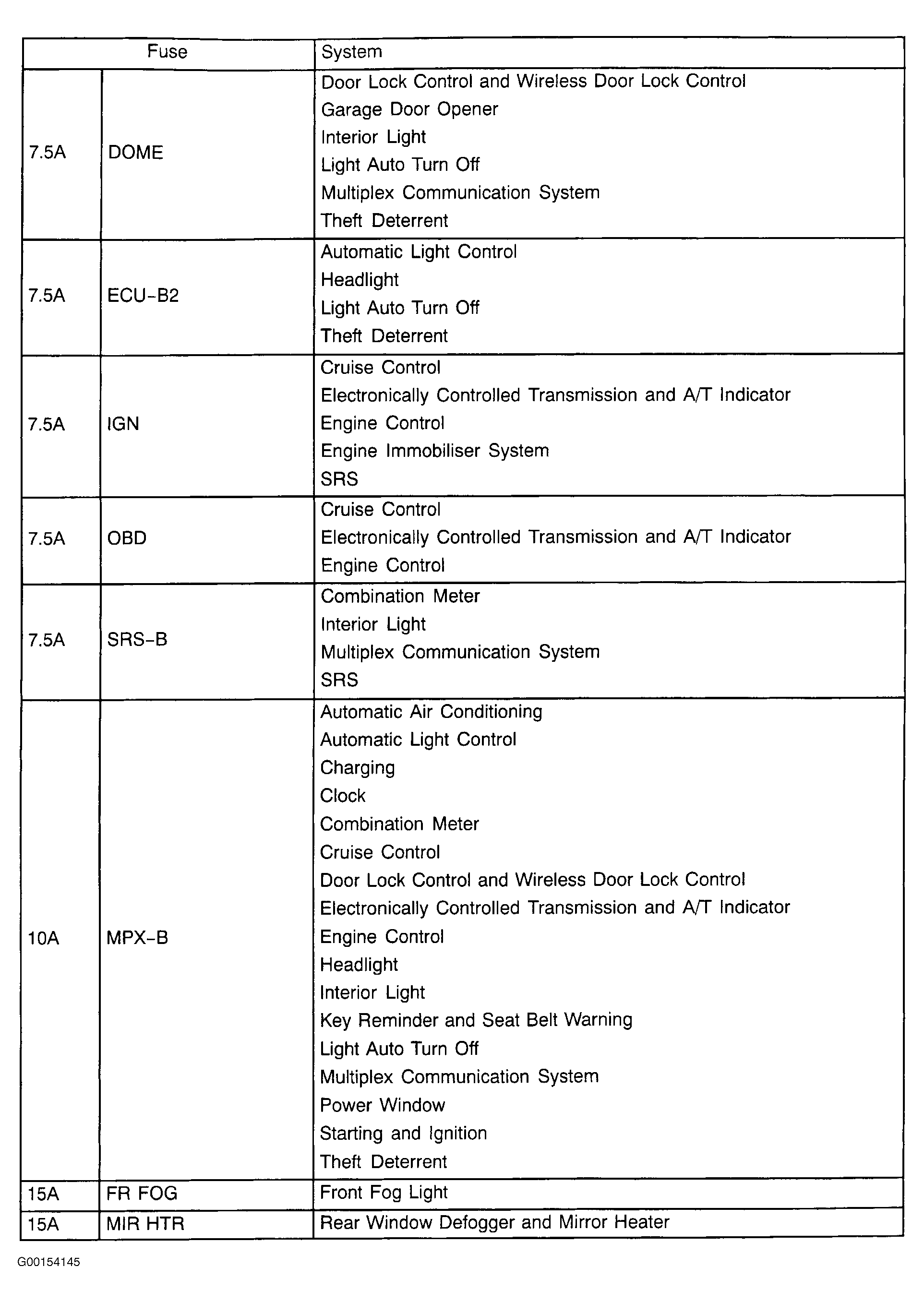

Fig 3: Passengers Side J/B Legend (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

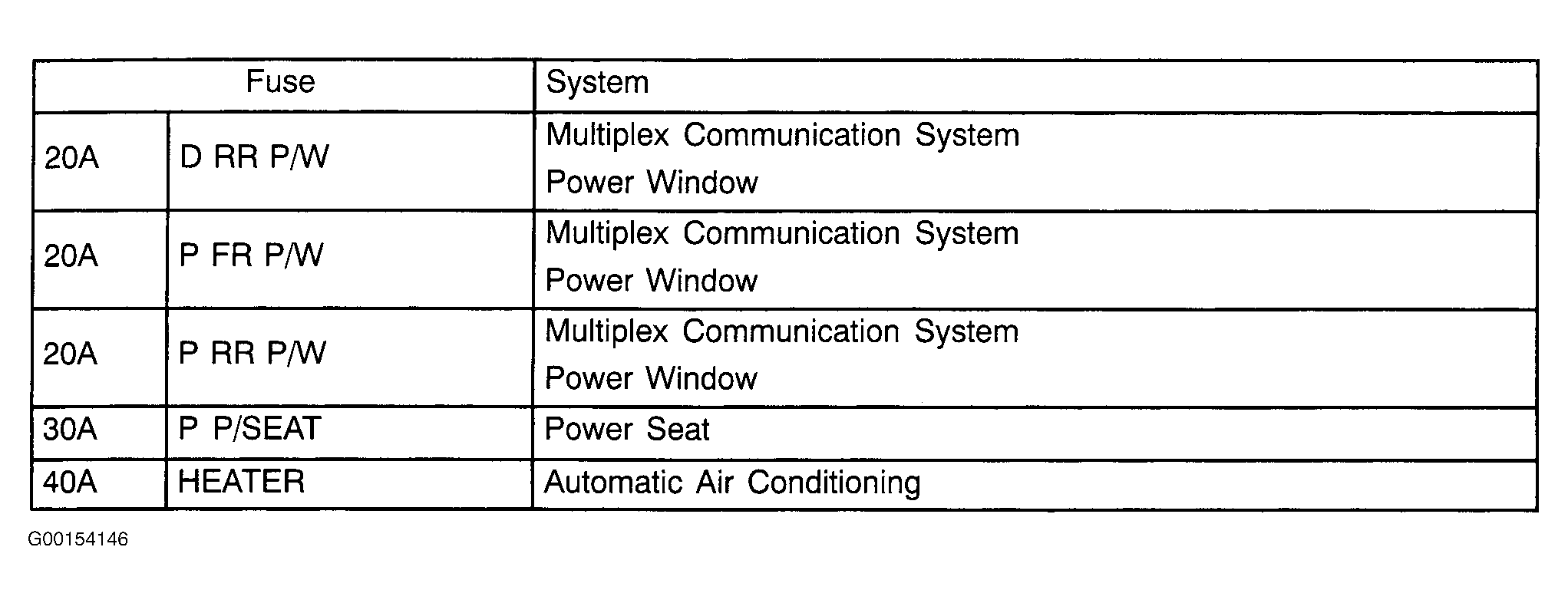

Fig 4: Passengers Side J/B Legend (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

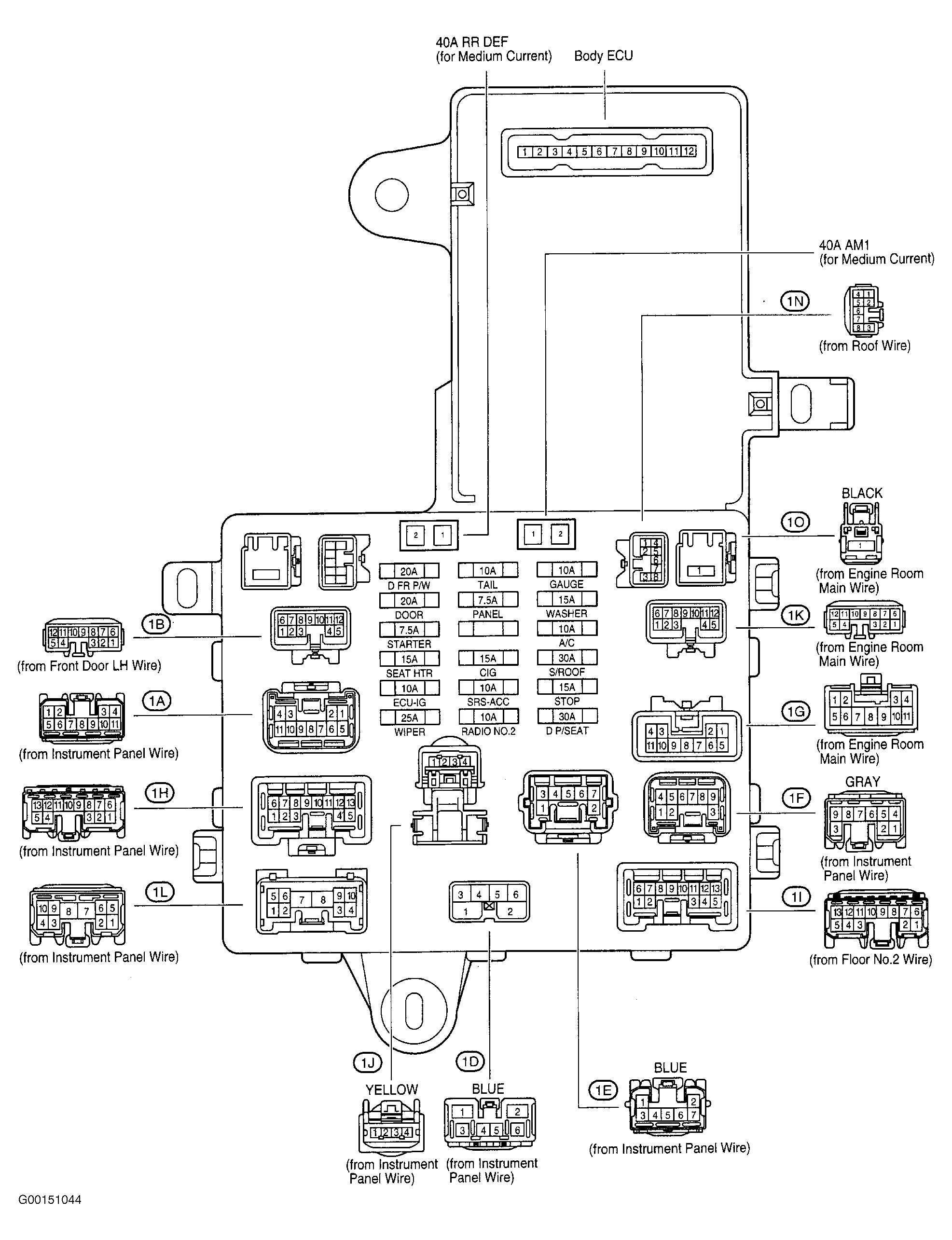

Fig 5: Identifying Driver Side J/B

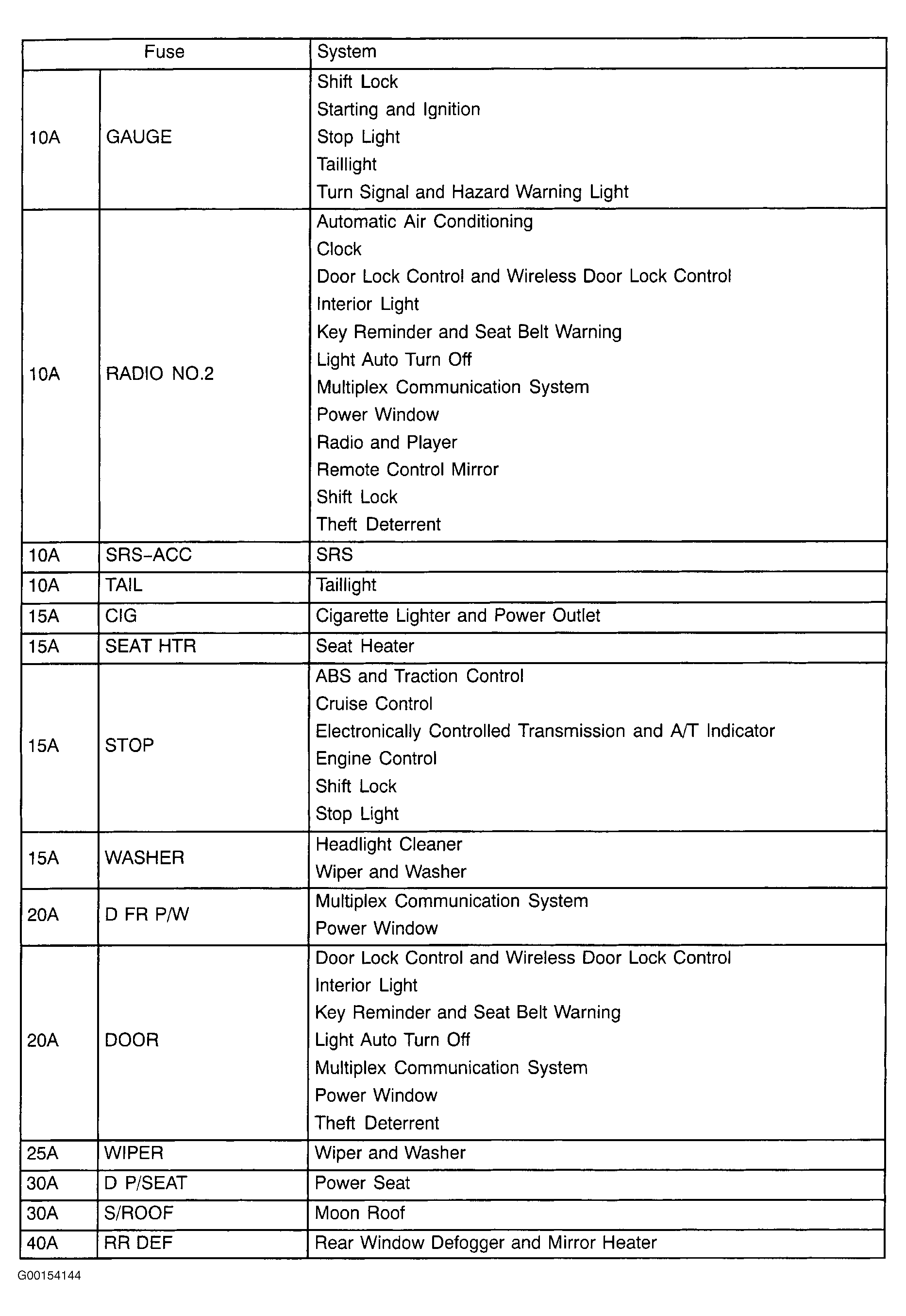

Fig 6: Drivers Side J/B Legend (1 Of 2)

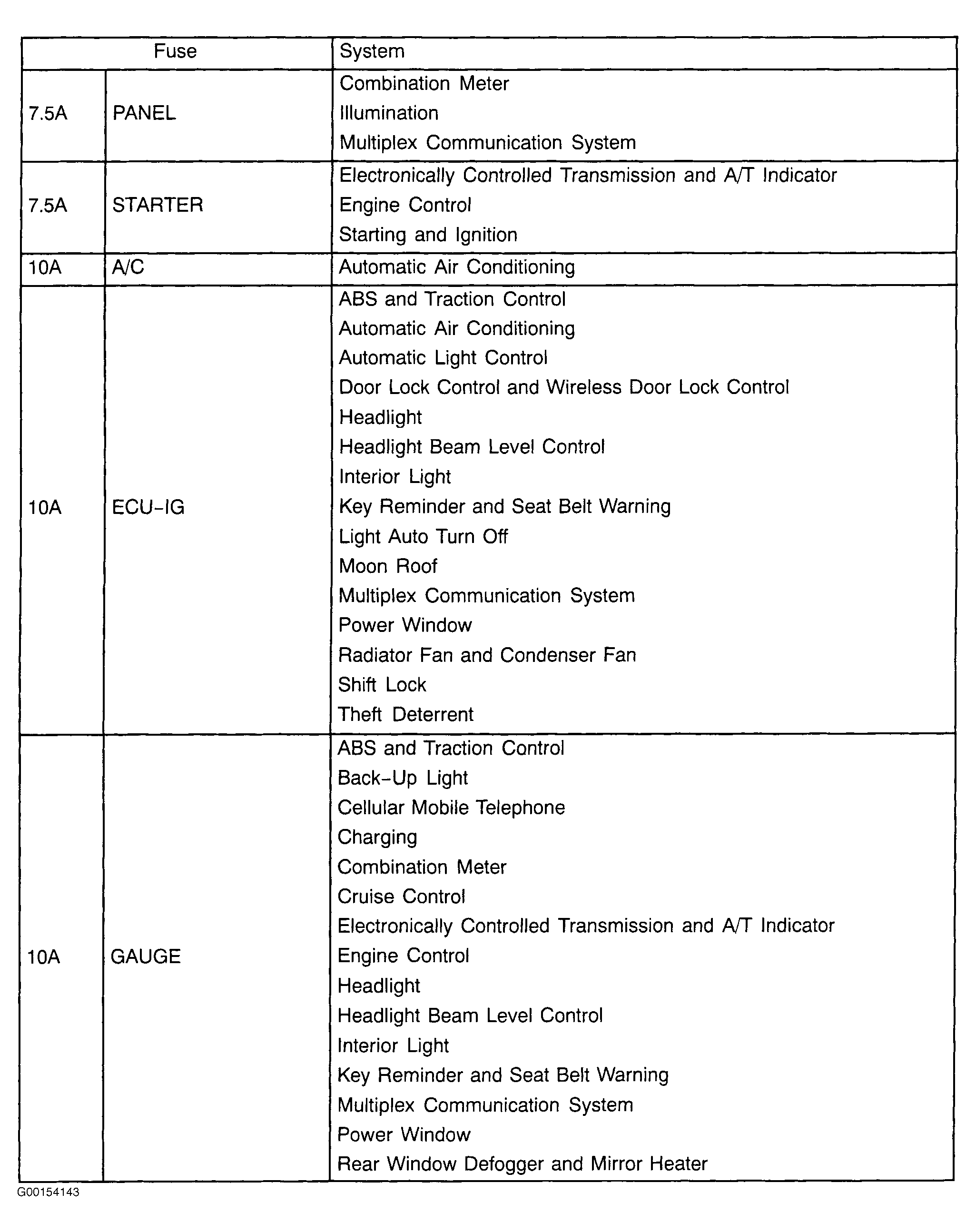

Fig 7: Drivers Side J/B Legend (2 Of 2)
