Inspection Procedure

  1. Check the Mayday switch.

    PREPARATION:

    Disconnect the Mayday switch connector.

    CHECK:

    MAYDAY SWITCH CONNECTORS TERMINALS CONTINUITY

    Switch position Tester connection Specified condition
    Service Play back Record 1 - 2 Continuity
    Emergency Volume UP Volume DOWN 2 - 3 Continuity

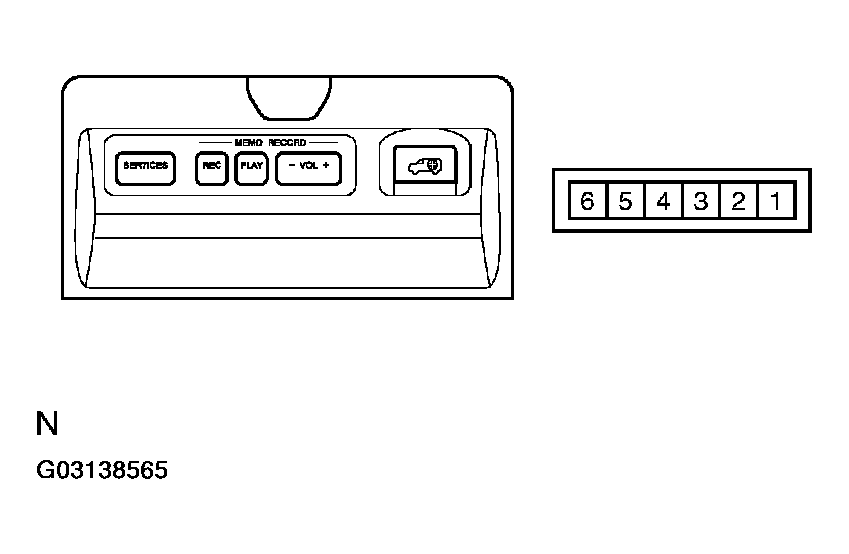

    Fig 1: Identifying Mayday Switch Connector Terminals
    G03138565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    There is a continuity when switch is pressed, and no continuity when not pressed.

    1. NG : Replace the Mayday switch.
    2. OK : Go to next step.

  2. Check for open and short circuit in harness and connector between Mayday ECU and Mayday switch.
    1. NG : Replace or repair wire harness connector.
    2. OK : Replace the Mayday ECU.
