Pin Voltage Tests

Using a DVOM, backprobe to measure voltage at appropriate body ECU. See Fig 1-Fig 13 .

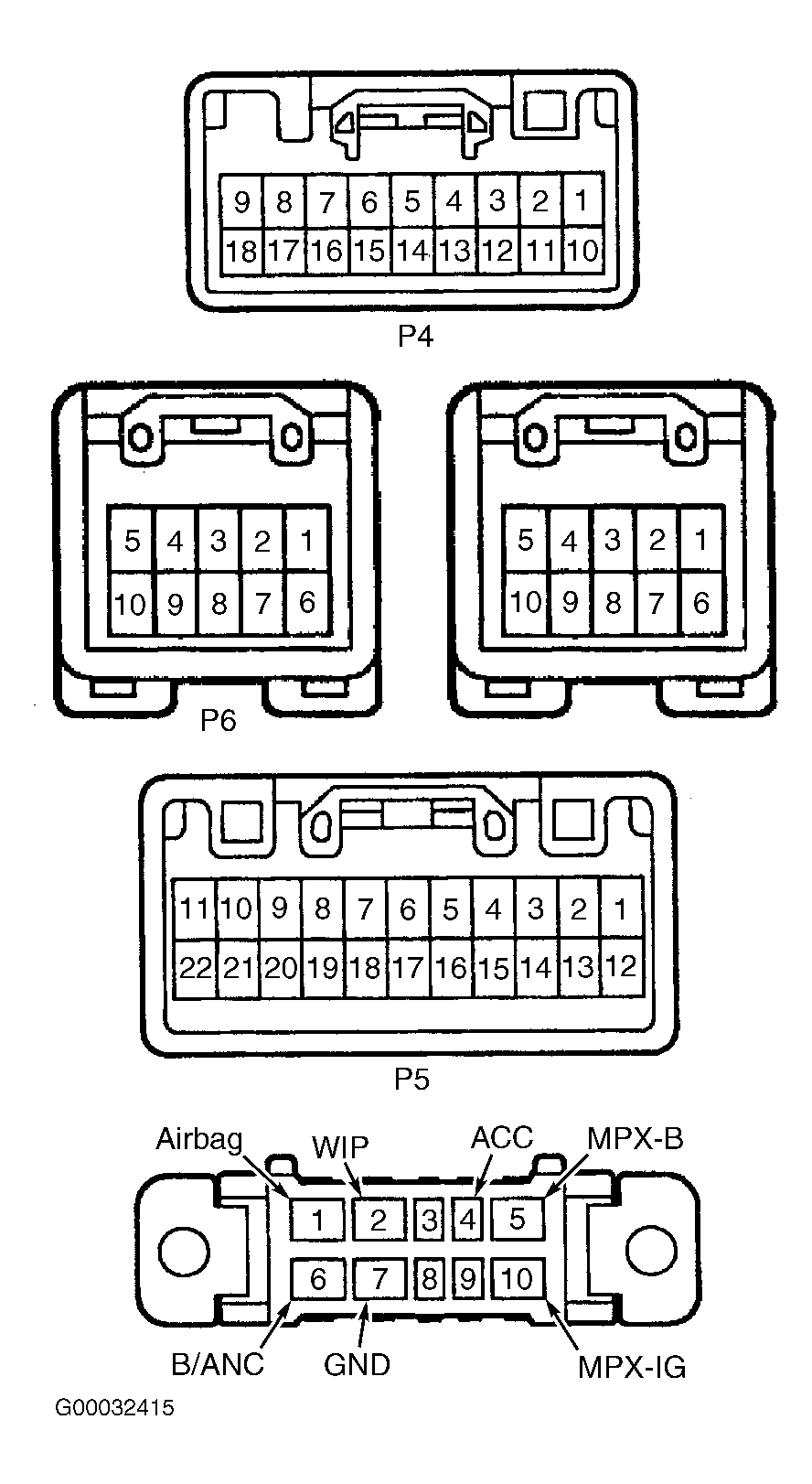

Fig 1: Identifying Body No. 2 ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

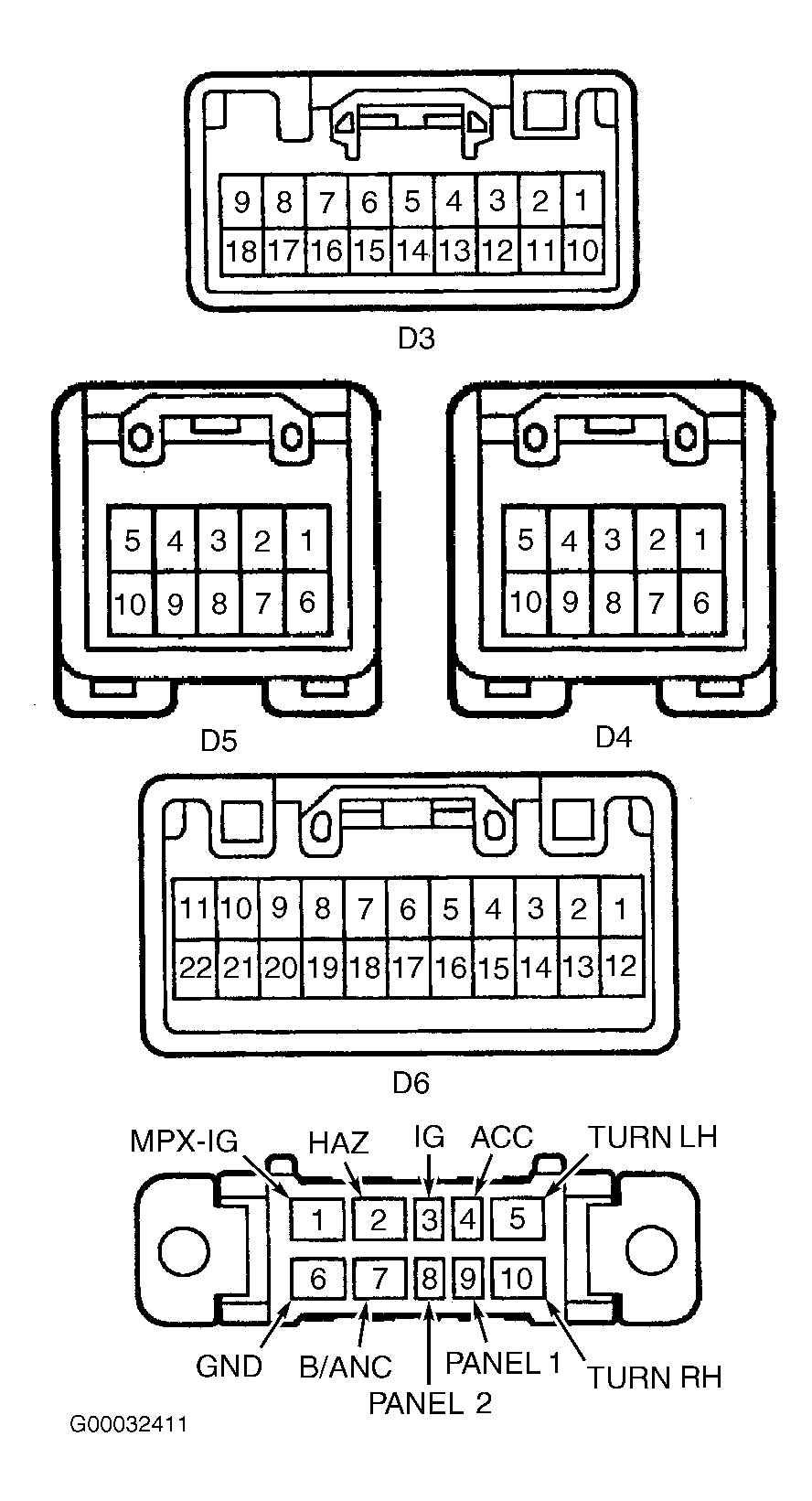

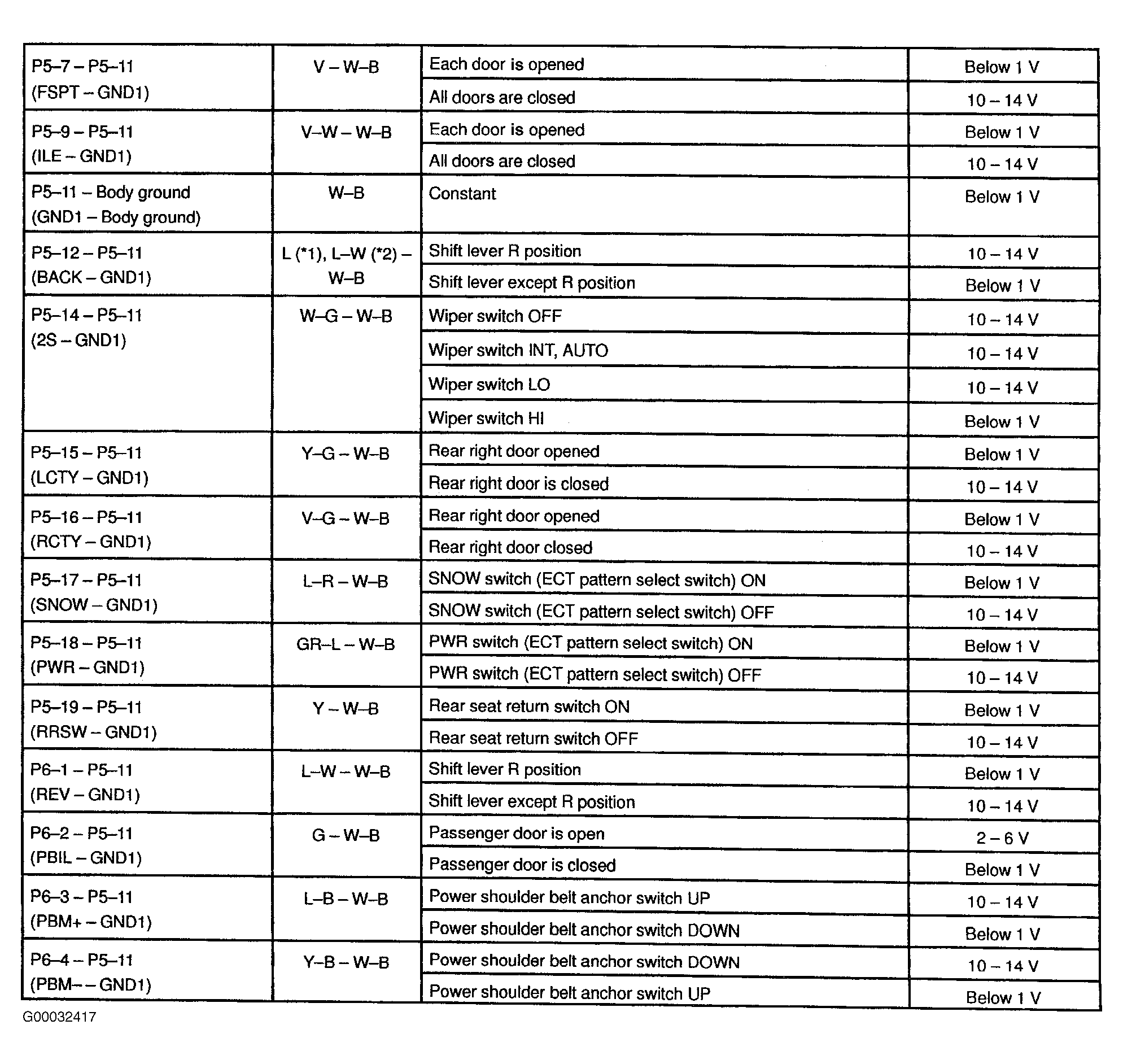

Fig 2: Identifying Body No. 2 ECU Pin Voltages (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

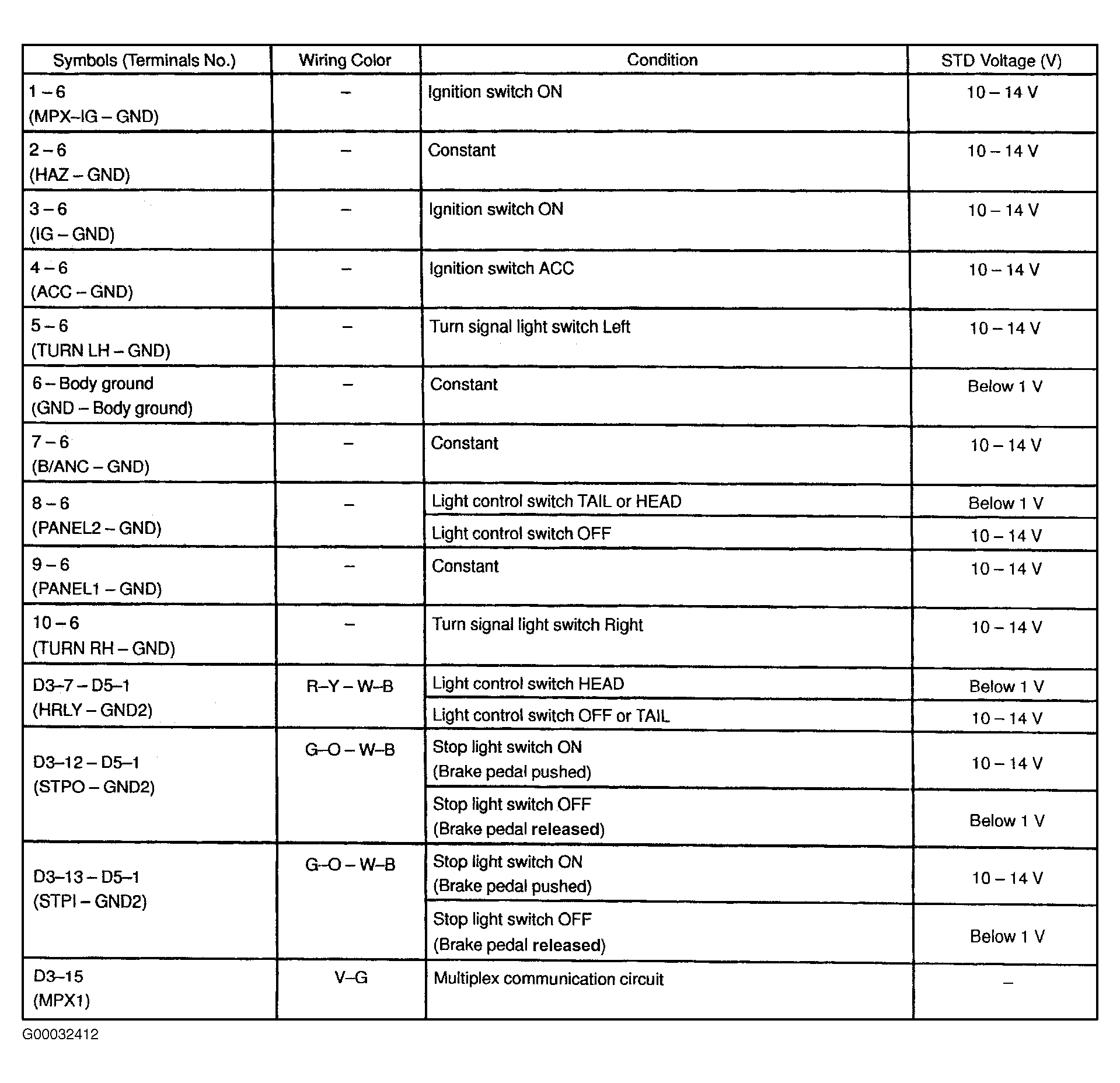

Fig 3: Identifying Body No. 2 ECU Pin Voltages (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

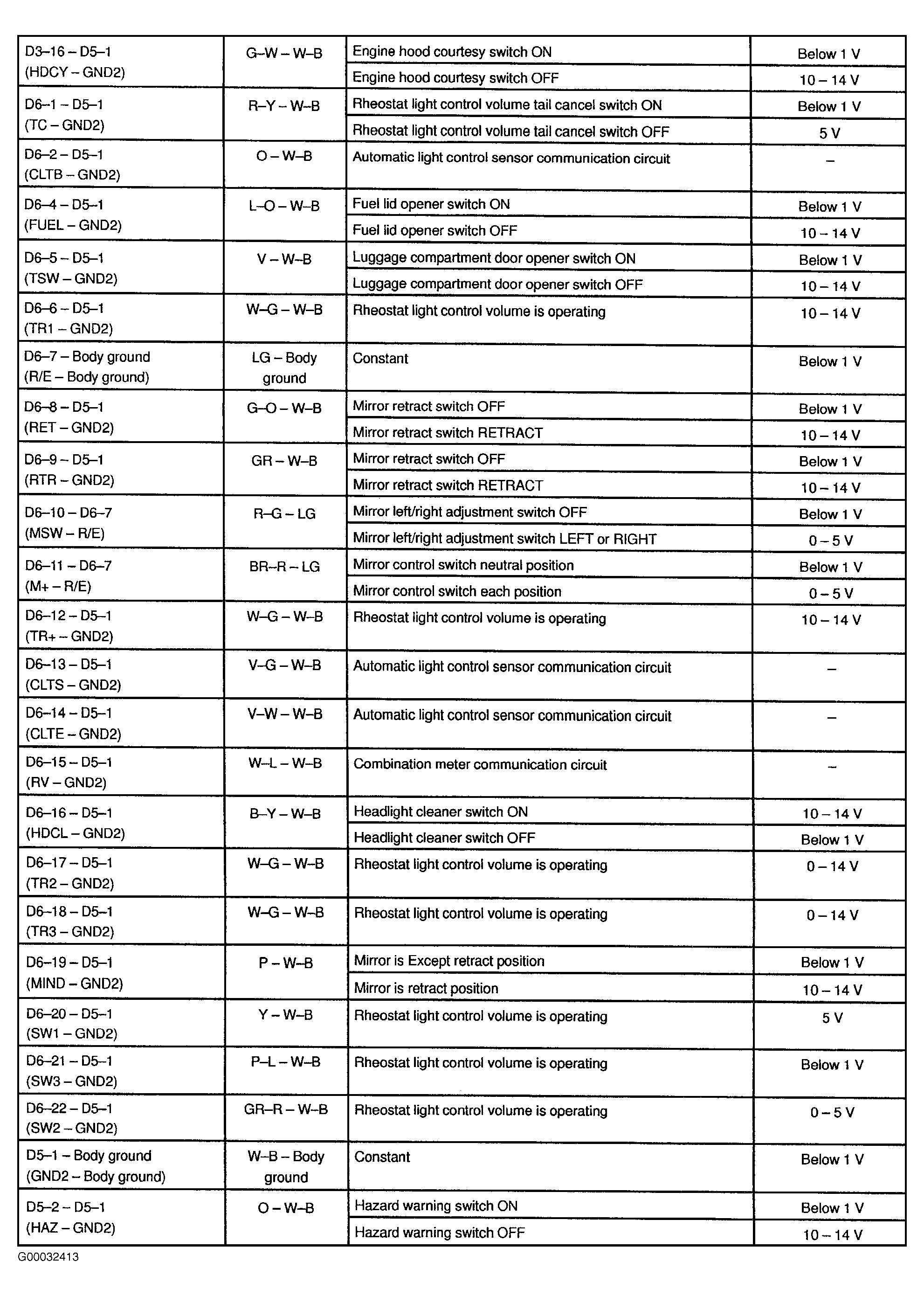

Fig 4: Identifying Body No. 2 ECU Pin Voltages (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

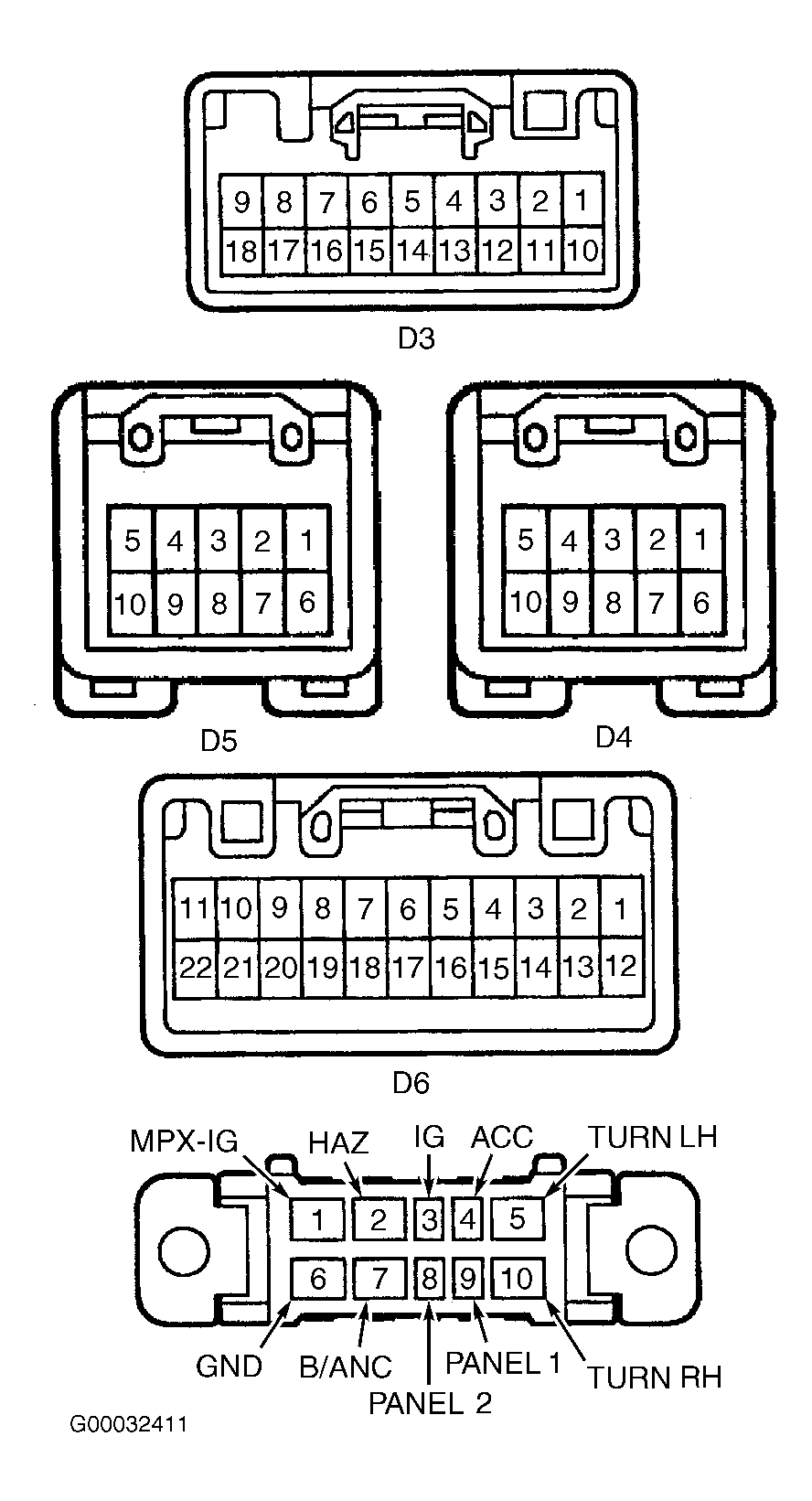

Fig 5: Identifying Body No. 3 ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

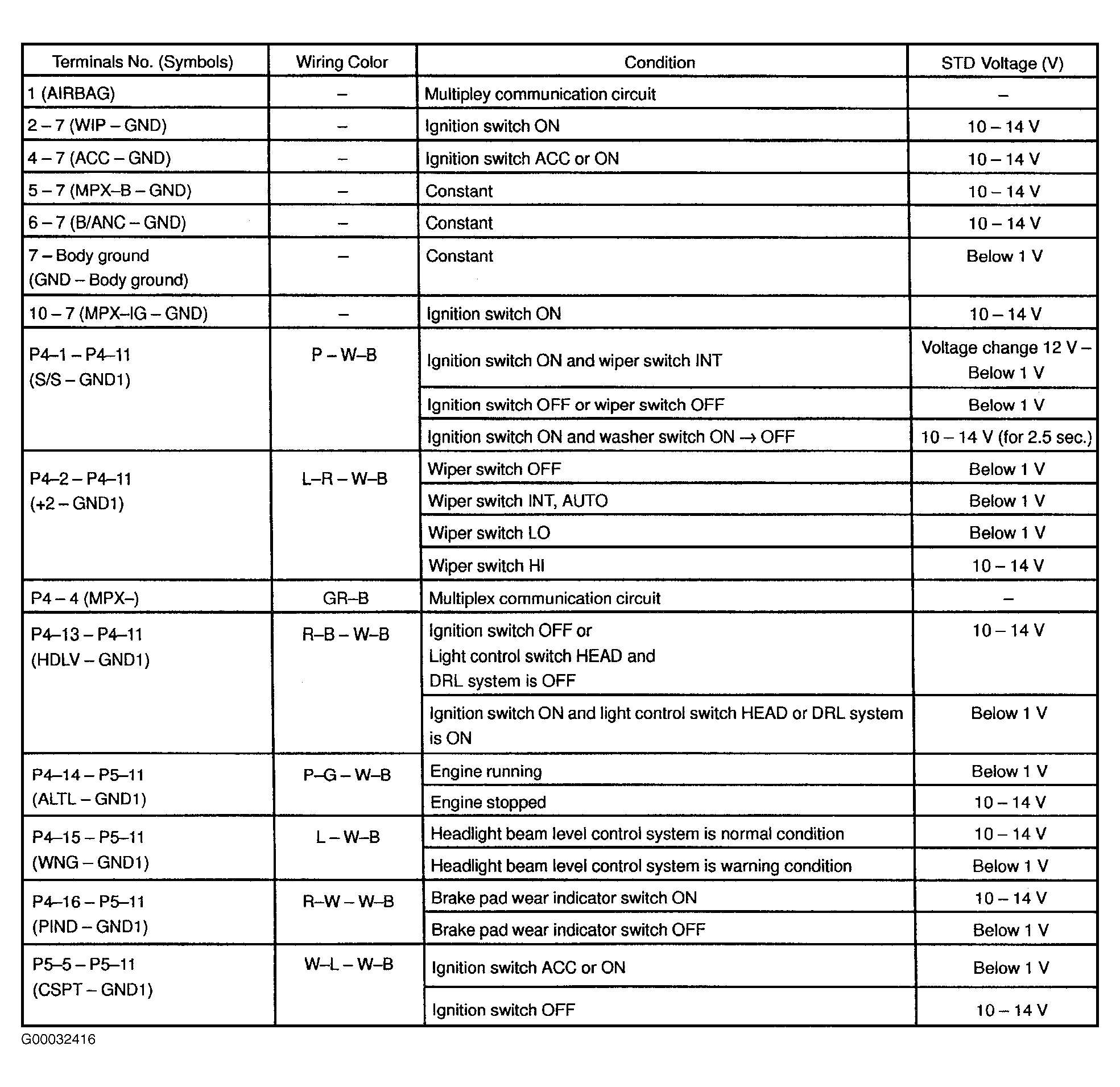

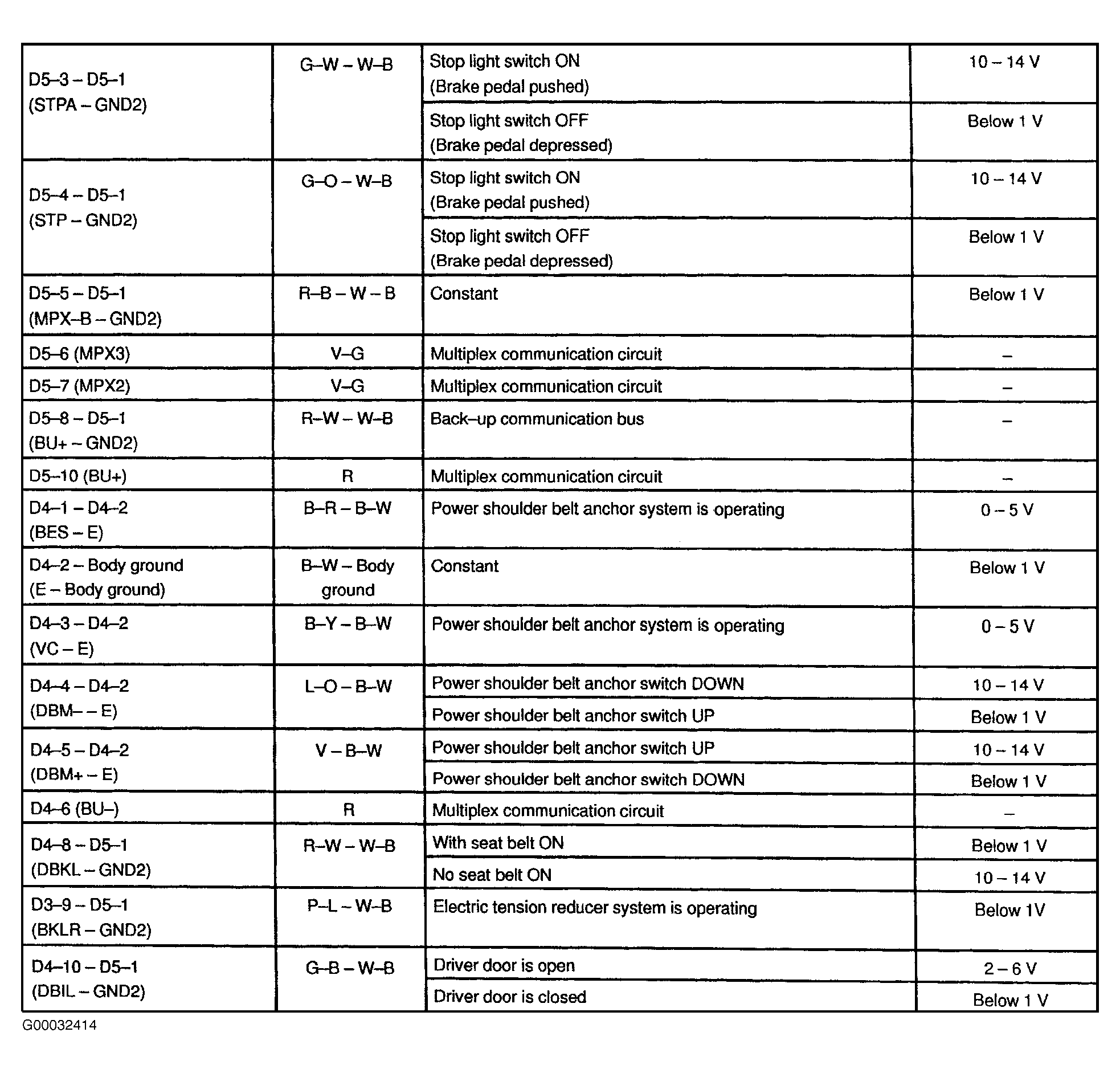

Fig 6: Identifying Body No. 3 ECU Pin Voltages (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Body No. 3 ECU Pin Voltages (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

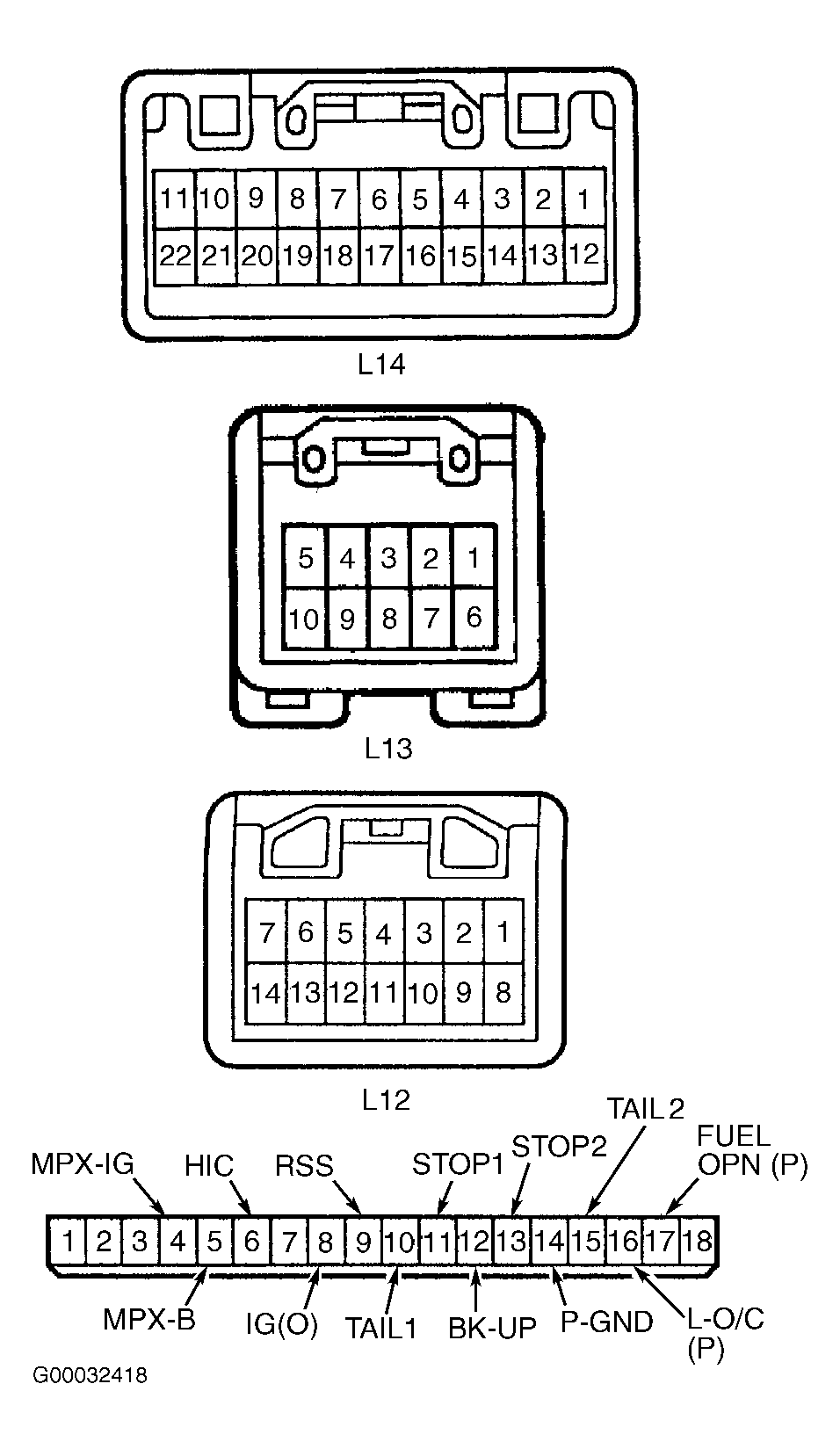

Fig 8: Identifying Body No. 4 ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

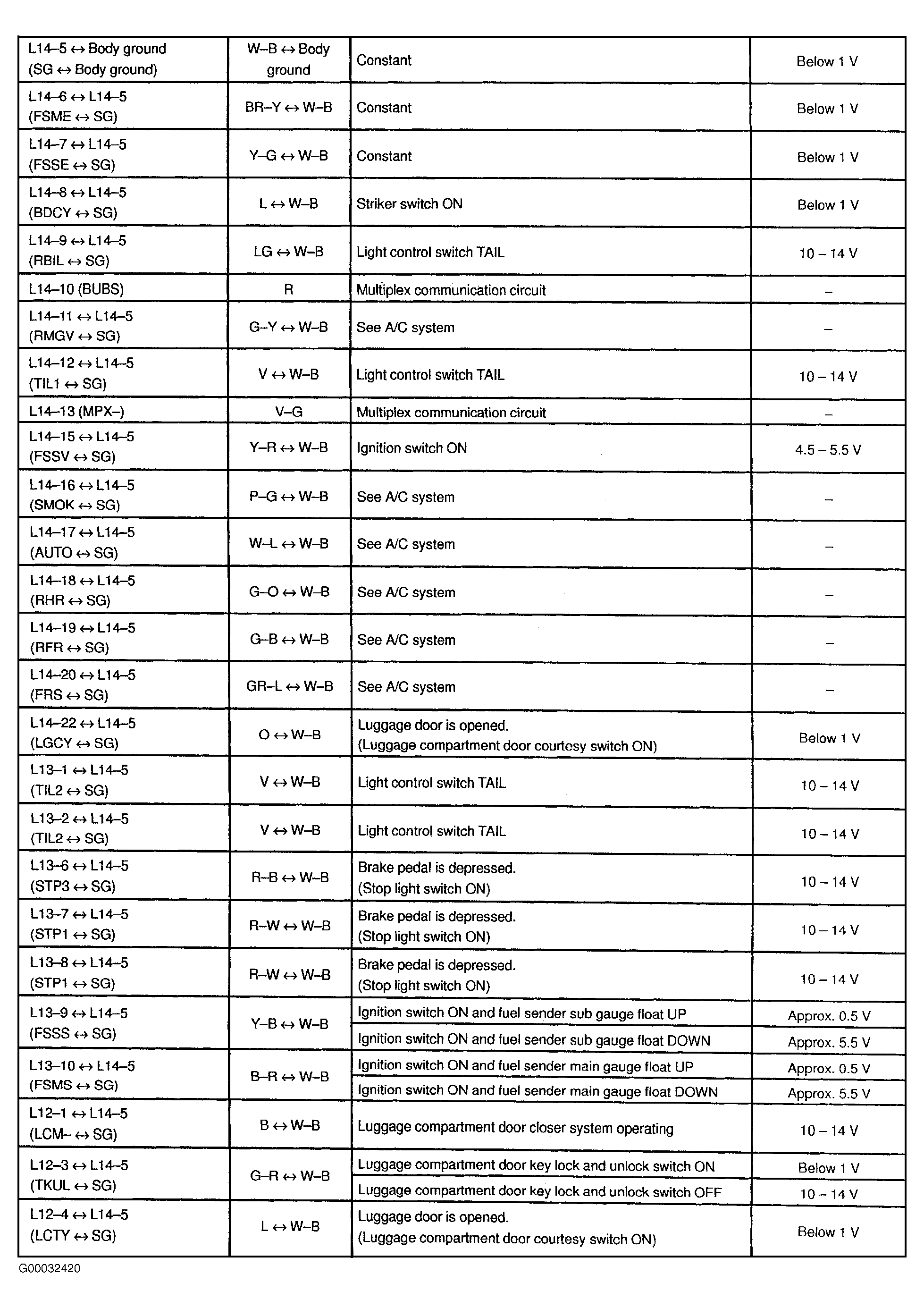

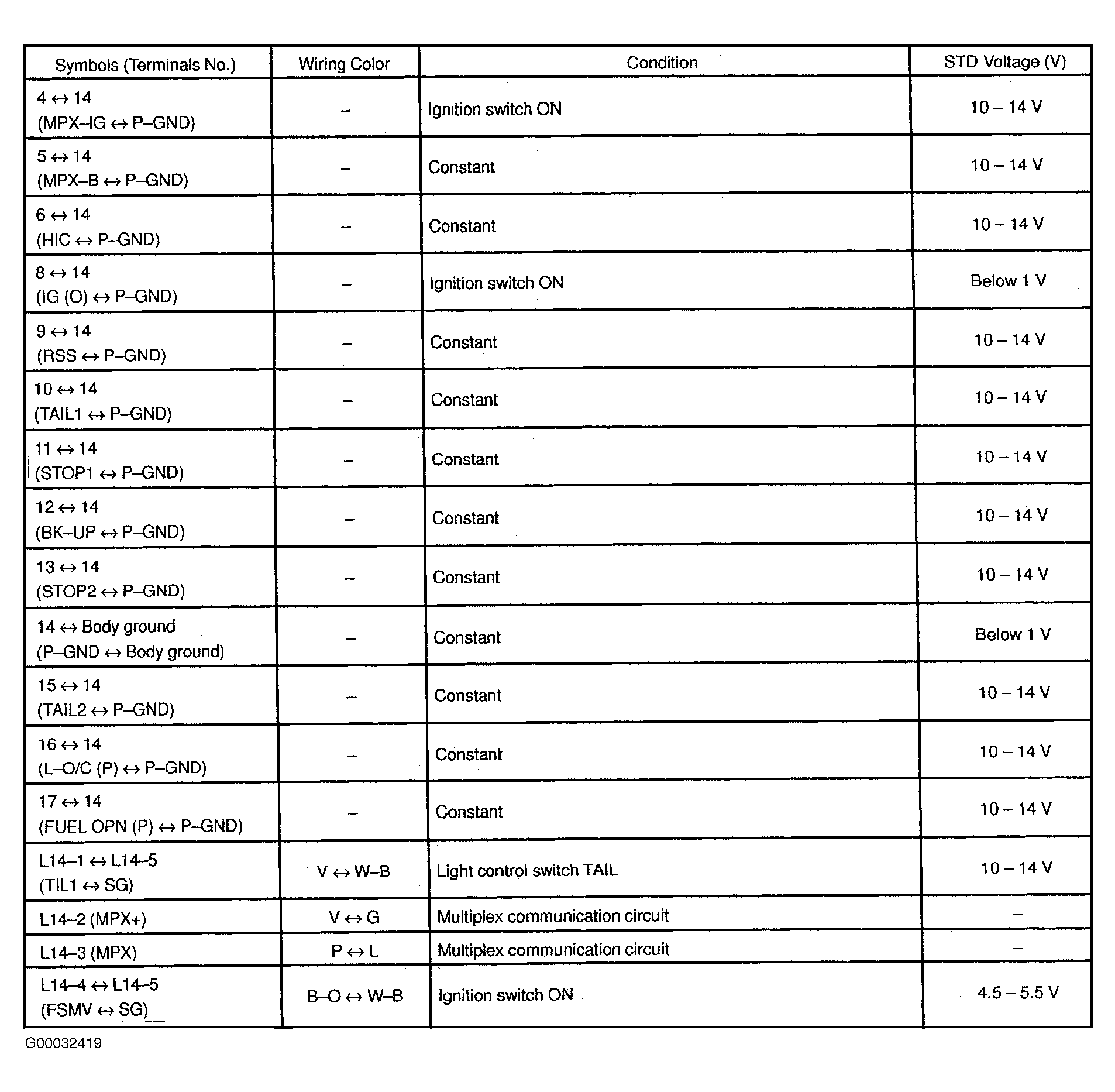

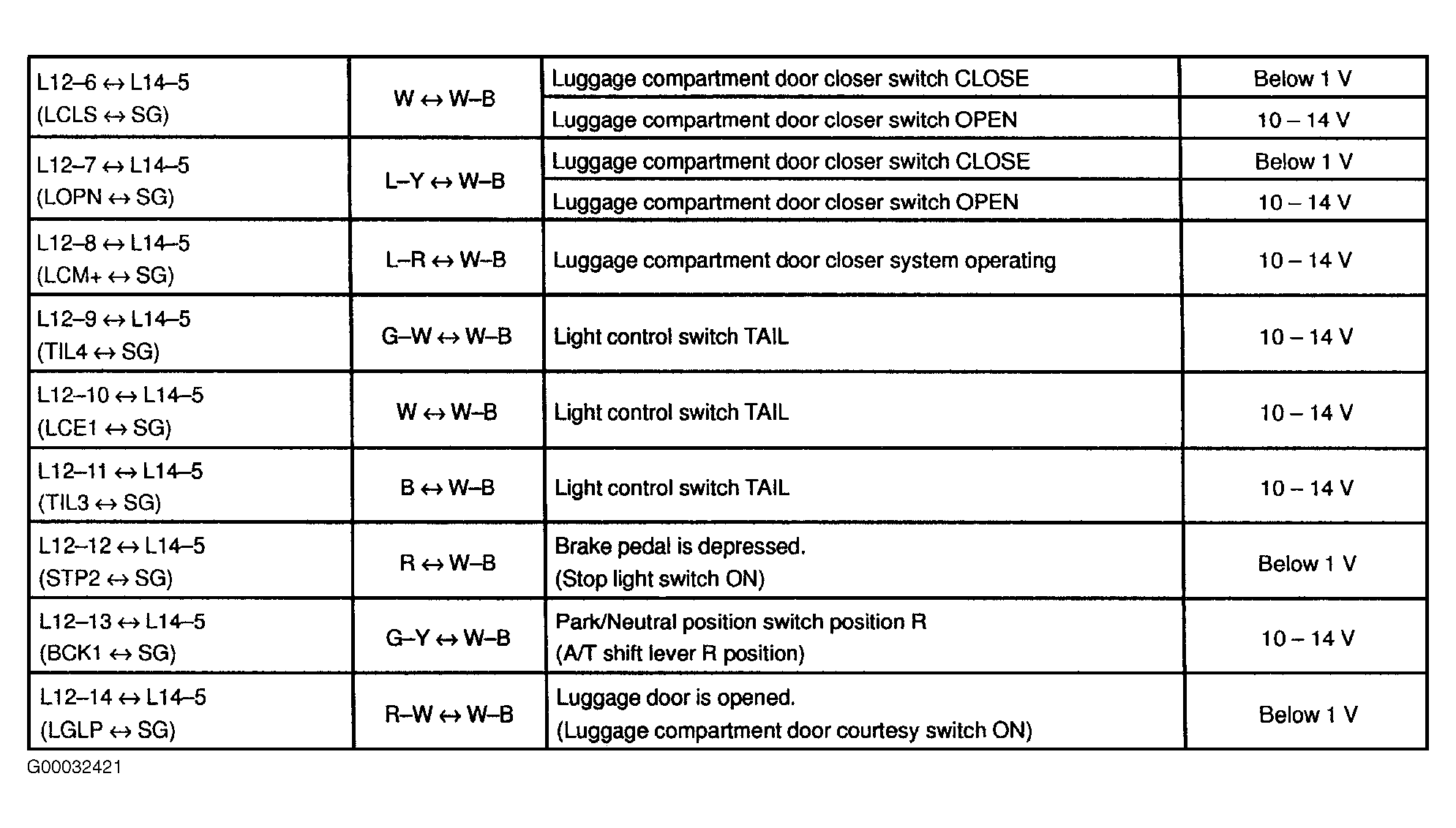

Fig 9: Identifying Body No. 4 ECU Pin Voltages (1 Of 3)

Fig 10: Identifying Body No. 4 ECU Pin Voltages (2 Of 3)

Fig 11: Identifying Body No. 4 ECU Pin Voltages (3 Of 3)

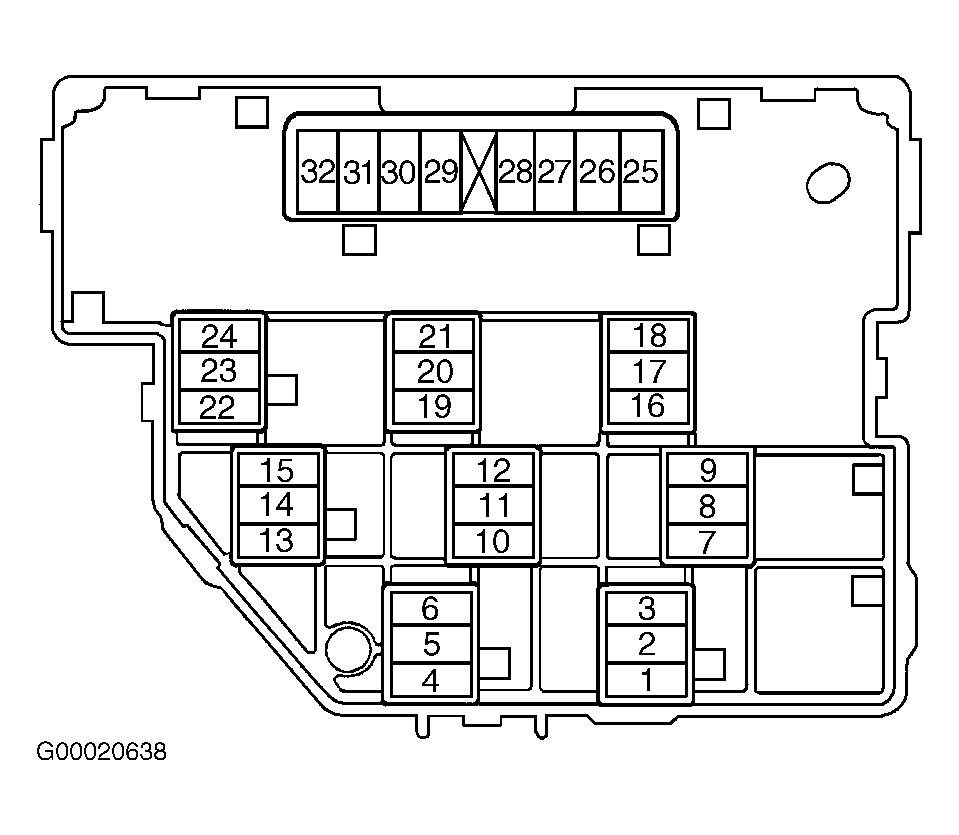

Fig 12: Identifying Body No. 5 ECU Connector Terminals

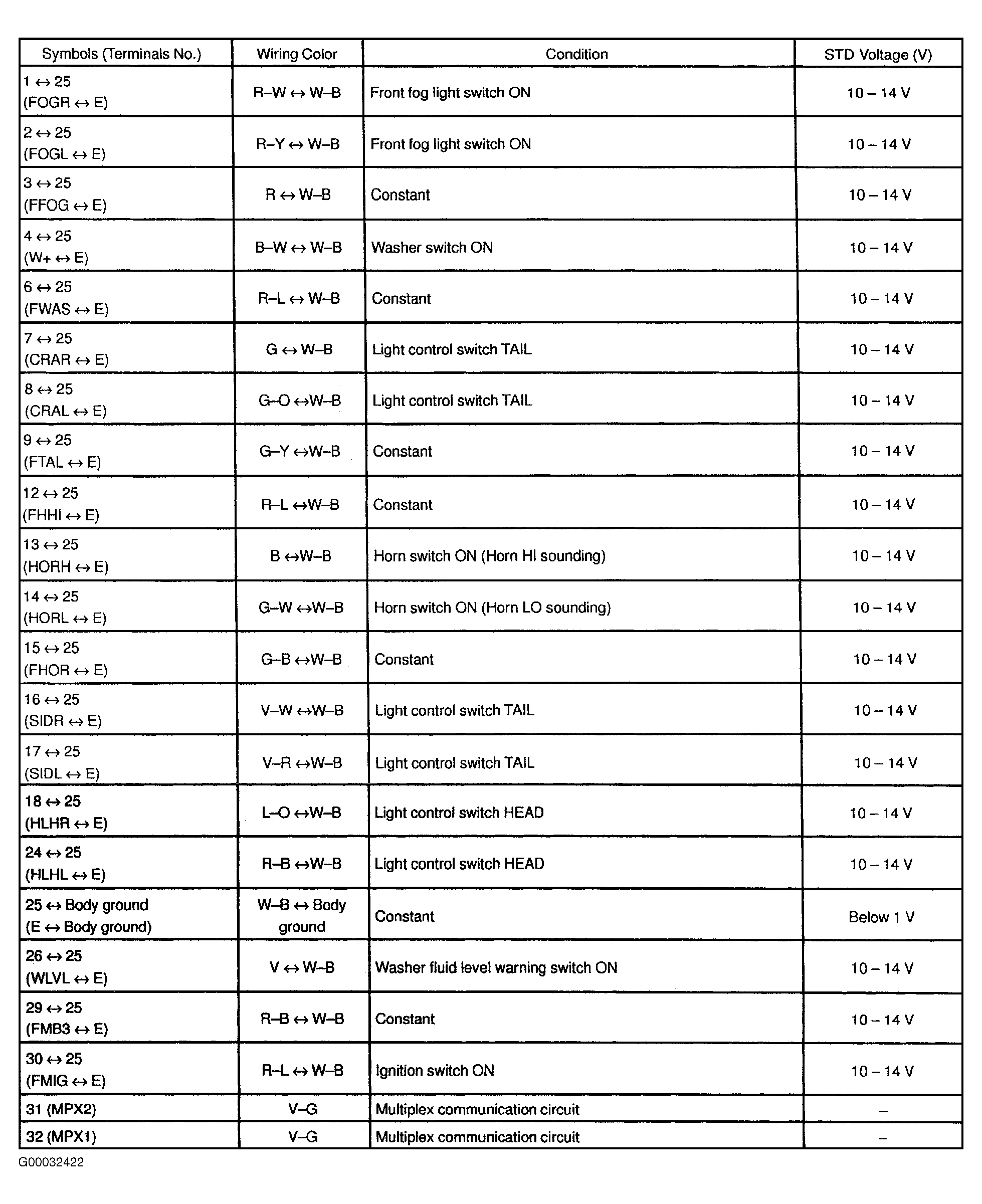

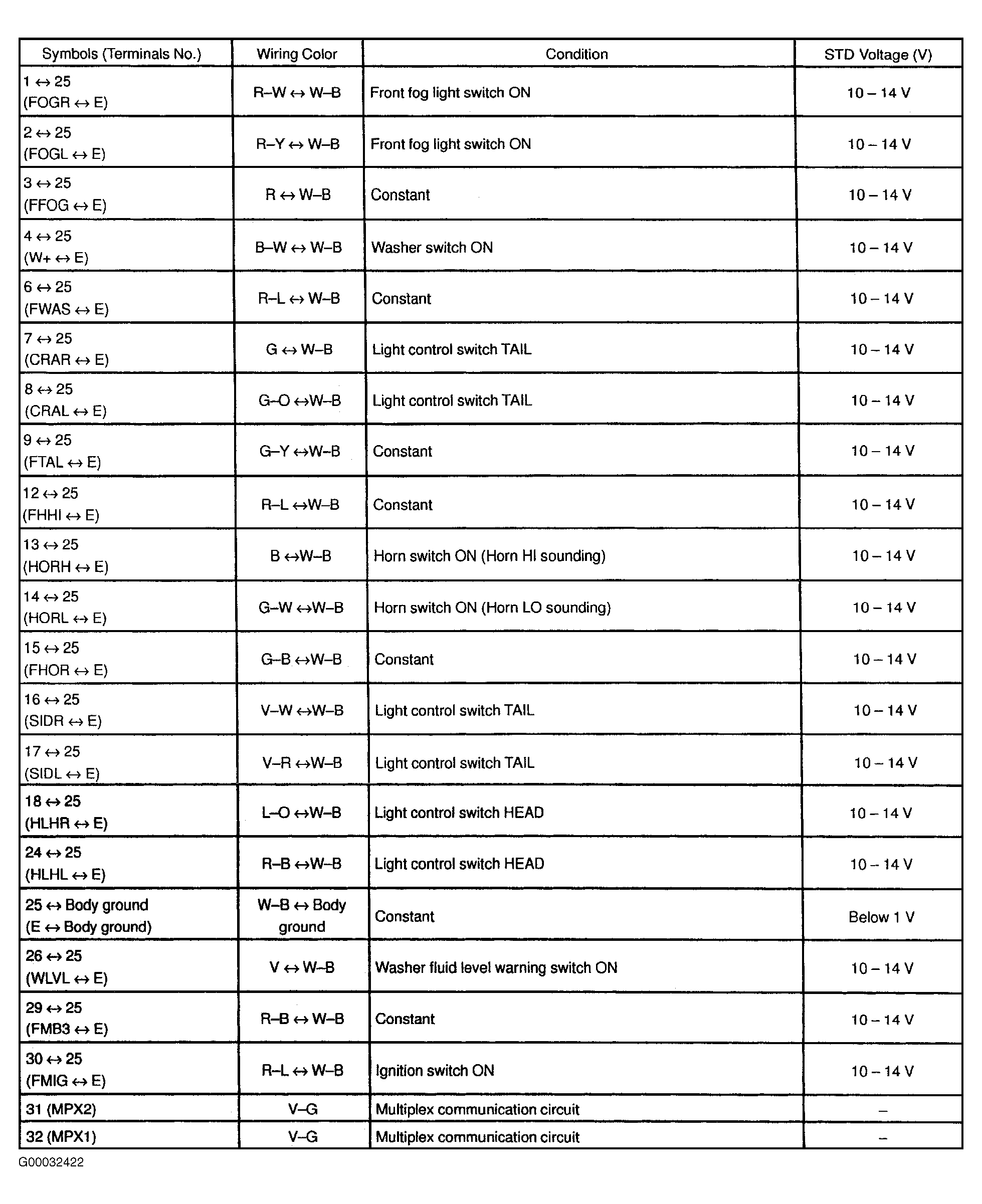

Fig 13: Identifying Body No. 5 ECU Pin Voltages
