Component Locations
NOTE:
For component locations, see
Fig 1
.

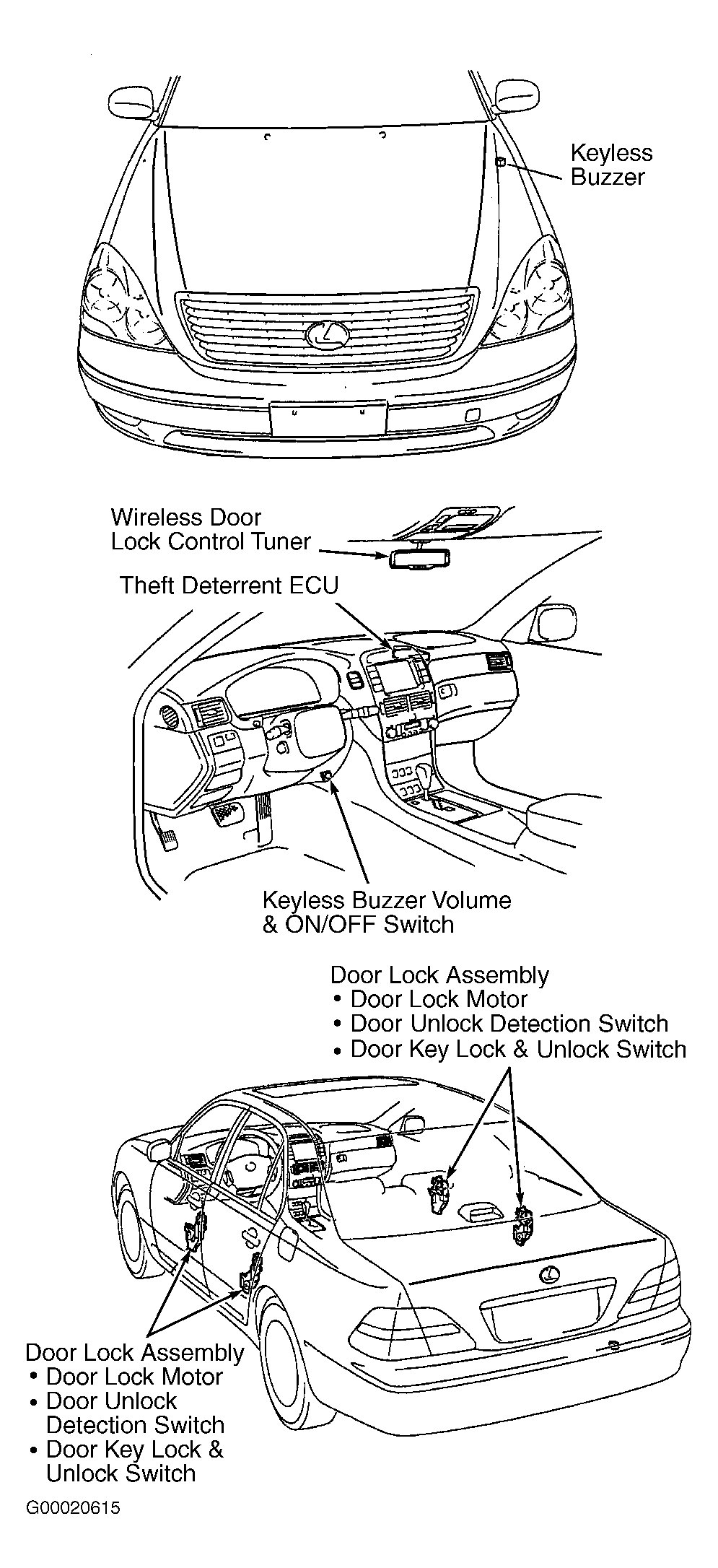

Fig 1: Identifying Remote Keyless Entry System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
