Wireless Door Lock Buzzer Operation

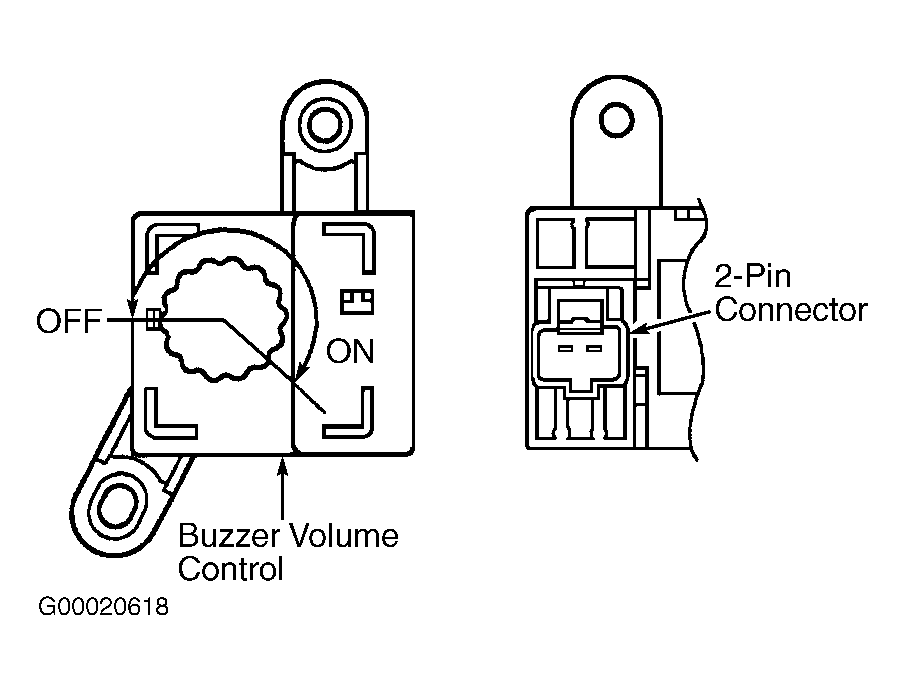

Disconnect wireless door lock buzzer 2-pin connector. See Figure. Measure resistance between connector terminals. If about one k/ohm is present, buzzer is okay. If about one k/ohm is not present, replace buzzer.
Disconnect wireless door lock buzzer 2-pin connector. See Figure. Measure resistance between connector terminals. If about one k/ohm is present, buzzer is okay. If about one k/ohm is not present, replace buzzer.
