Component Locations

NOTE: For component locations, see Fig 1.

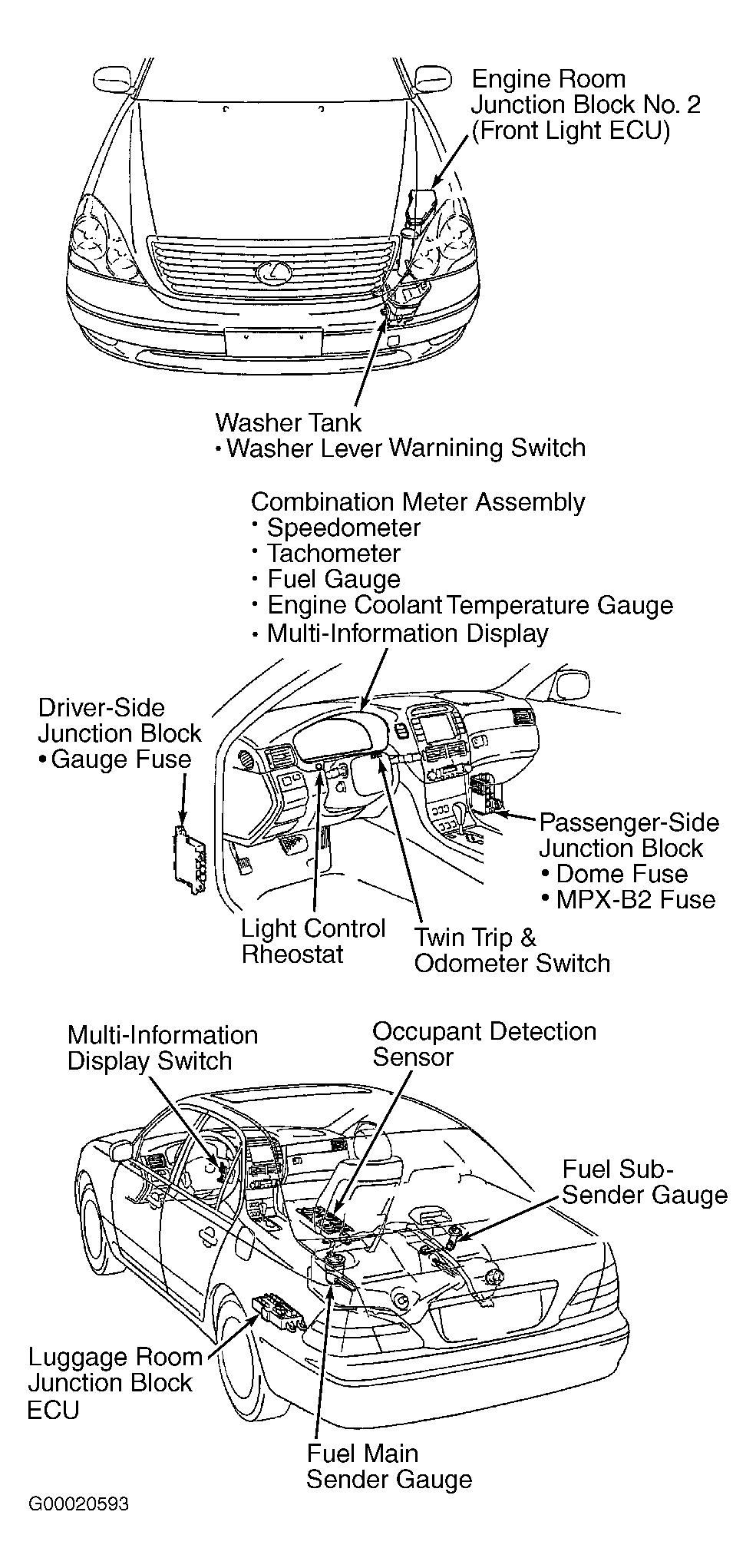

Fig 1: Locating Instrument Panel Components
G00020593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
