Circuit Description

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

This DTCs are output when the power window motor malfunctions.

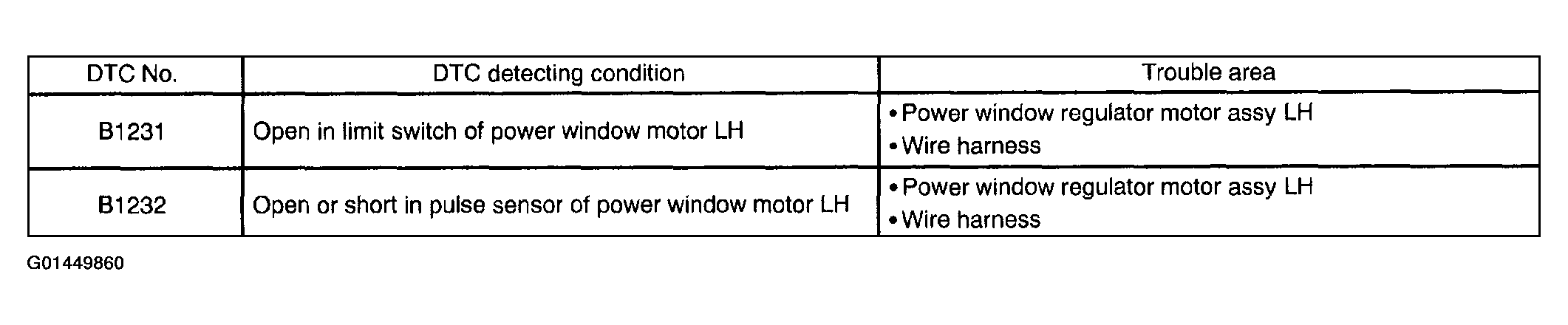

Fig 1: DTC B1231 And B1232 Detection Table
G01449860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
