Power Steering Gear: Components

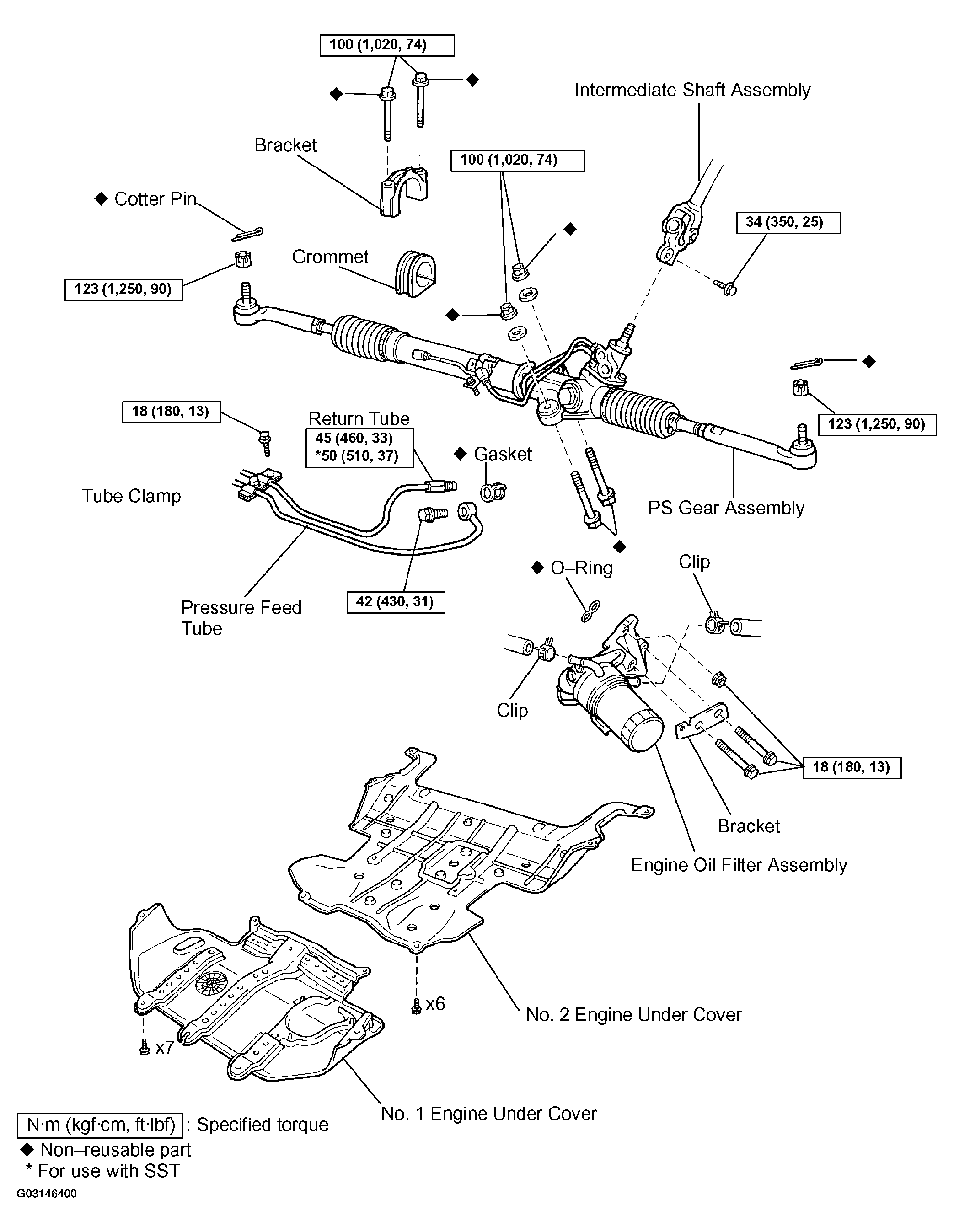

Fig 1: Identifying Components For Steering Gear Removal
G03146400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

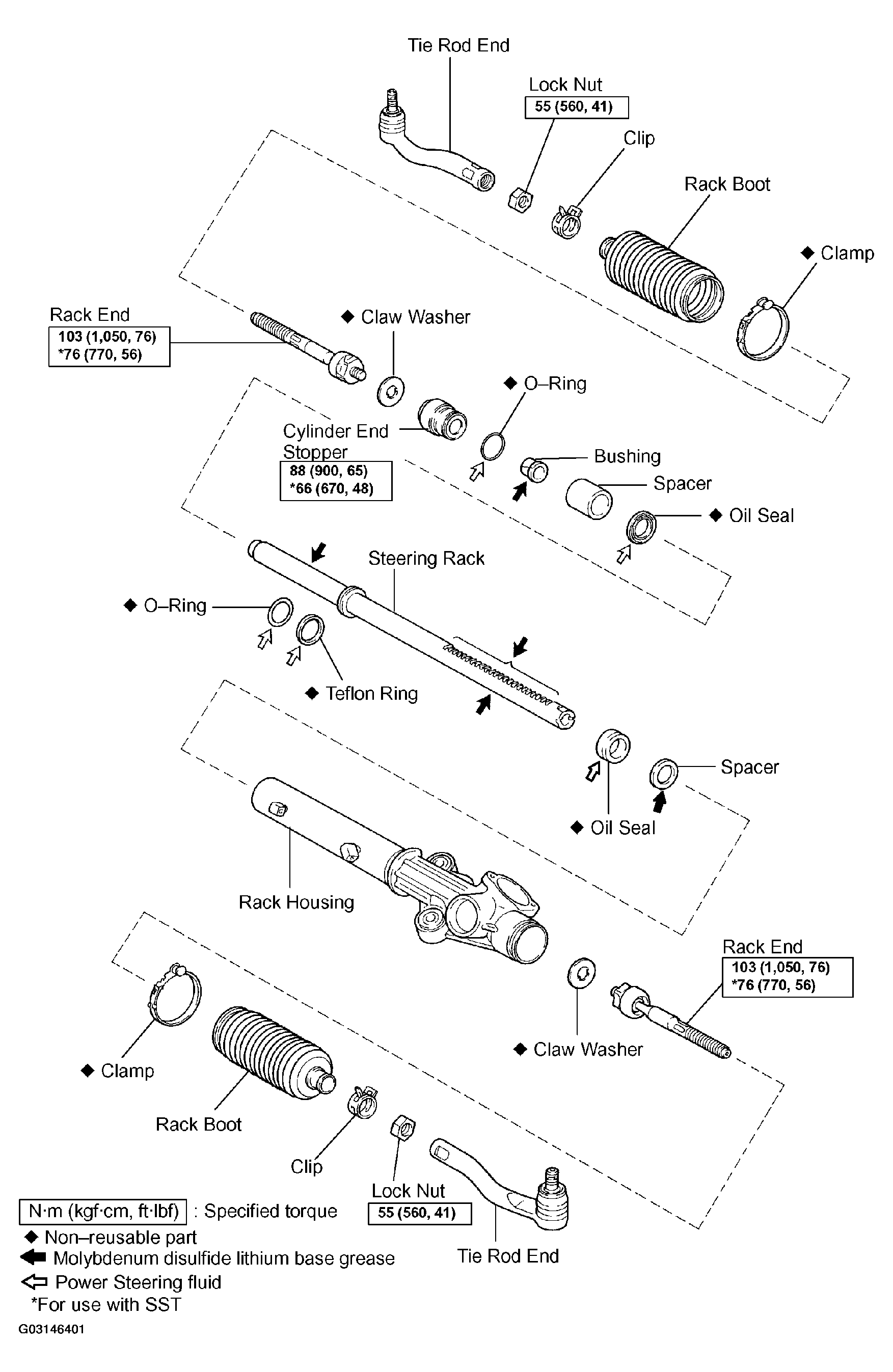

Fig 2: Exploded View Of Power Steering Gear (1 Of 2)
G03146401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

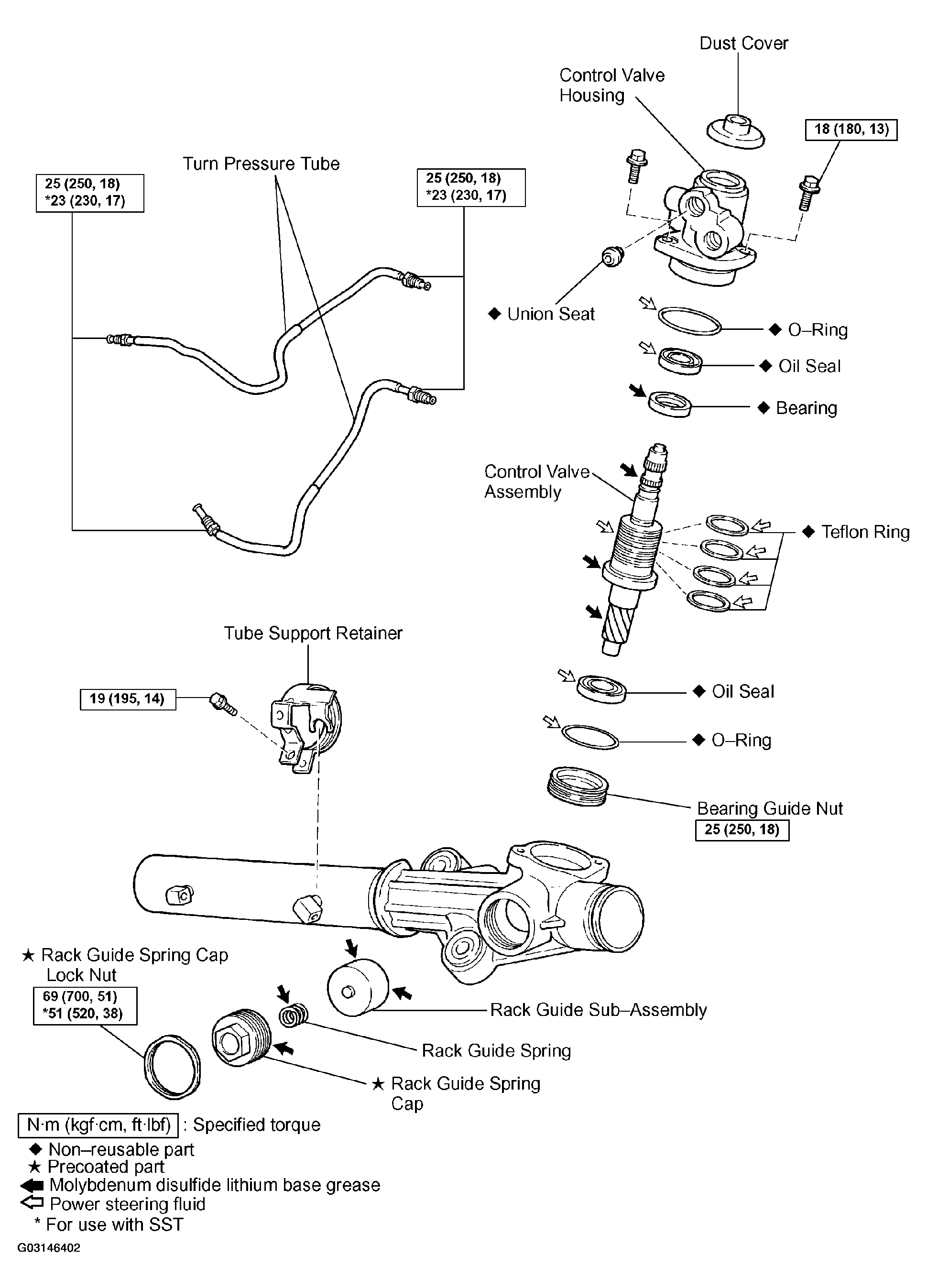

Fig 3: Exploded View Of Power Steering Gear (2 Of 2)
G03146402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
