Headliner

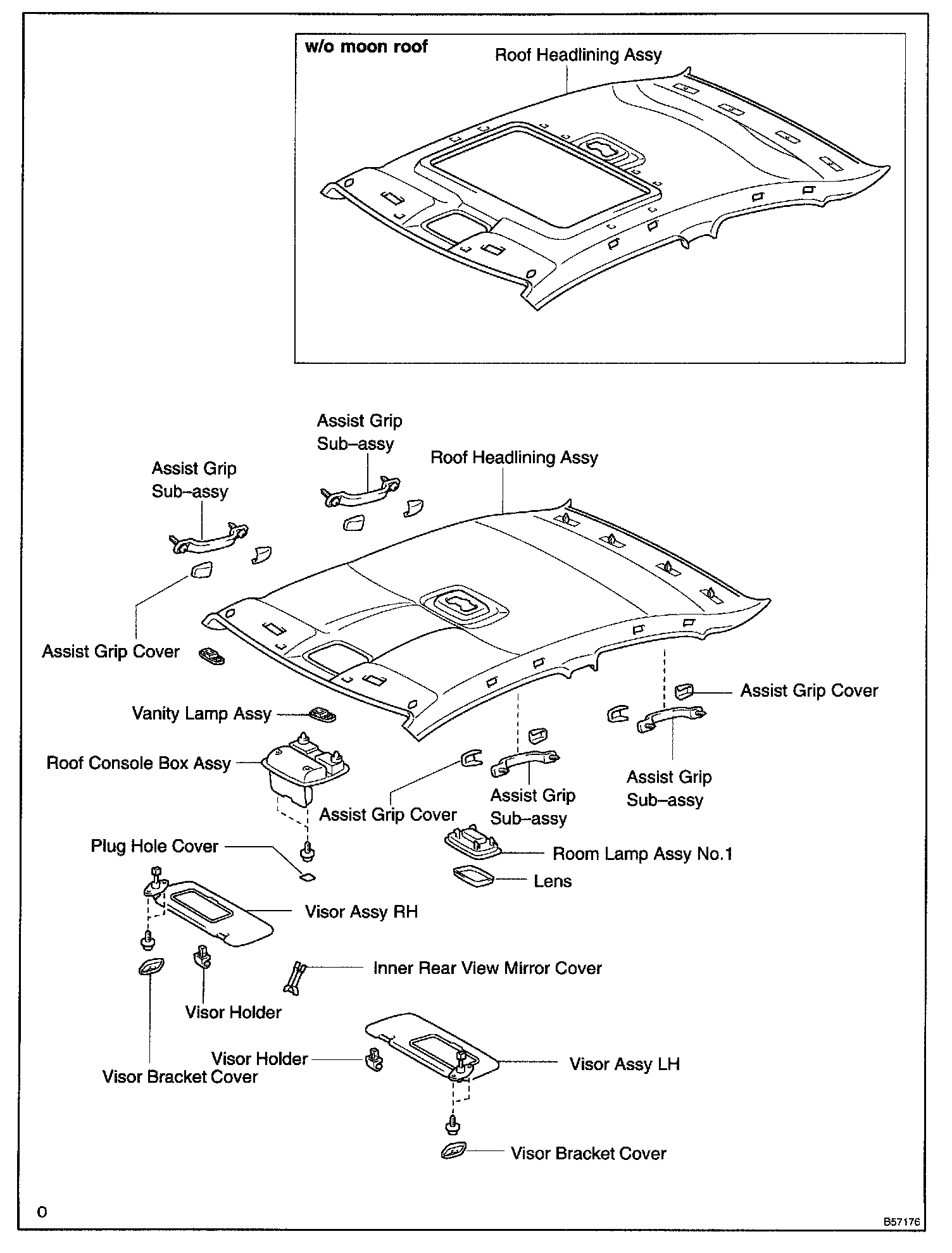

Roof Headlining Assy Part 1:

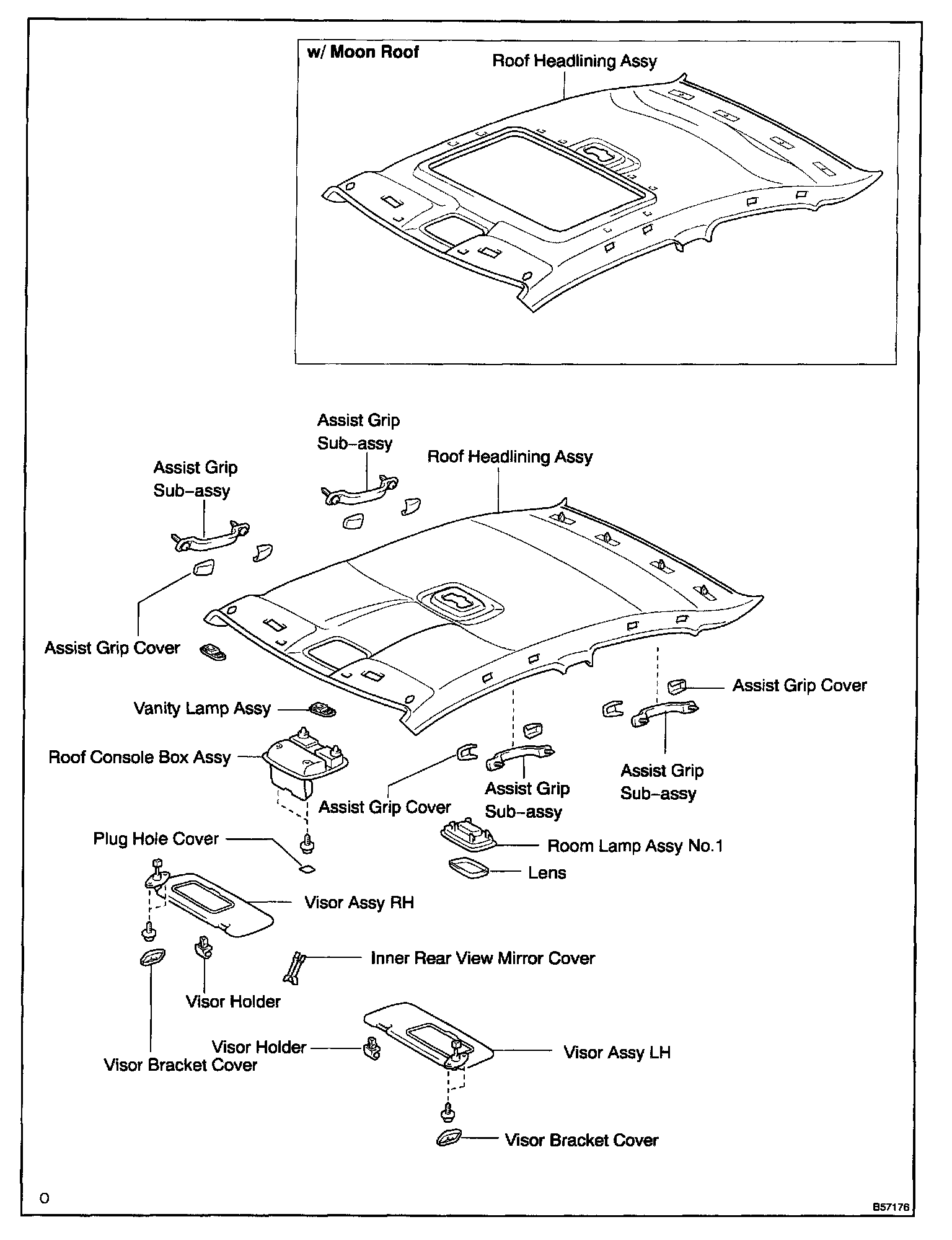

Roof Headlining Assy Part 2:
Roof Headlining Assy:
Roof Headlining Assy:
