Component Inspection

INSPECTION

ACCELERATOR PEDAL ASSY

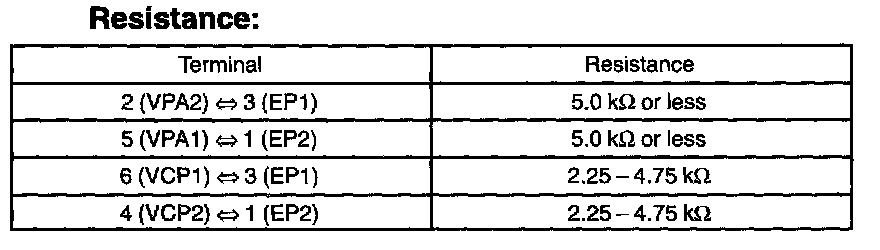

Resistance:




a. Resistance inspection

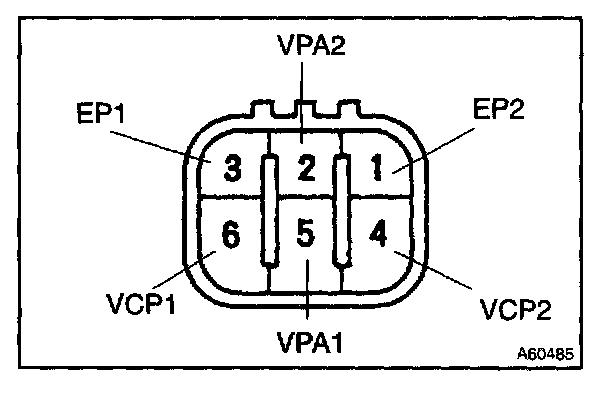

1. Using an ohmmeter, measure the resistance between terminals.
