Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection
INSPECTIONE.F.I. ENGINE COOLANT TEMPERATURE SENSOR

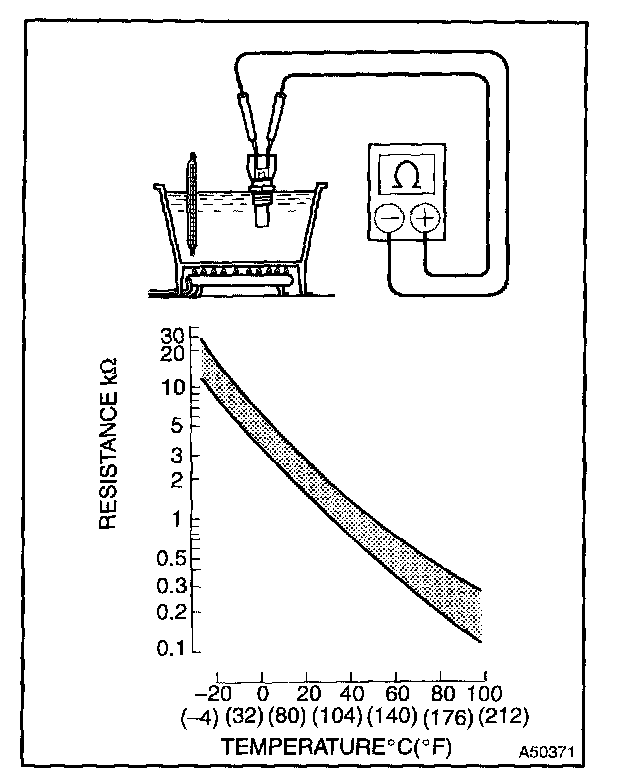

a. Resistance inspection.
1. Using an ohmmeter, measure the resistance between each terminal.
Resistance:
Approx. 20 °C (68 °F) 2.32 - 2.59 kOhms
Approx. 80 °C (176 °F) 0.310 - 0.326 kOhms
NOTE: In case of checking the water temperature sensor in the water, be careful not to allow water to go into the terminals, and after checking, wipe out the sensor.
