Throttle Position Sensor: Testing and Inspection

INSPECTION


E.F.I. THROTTLE POSITION SENSOR




a. Resistance inspection.

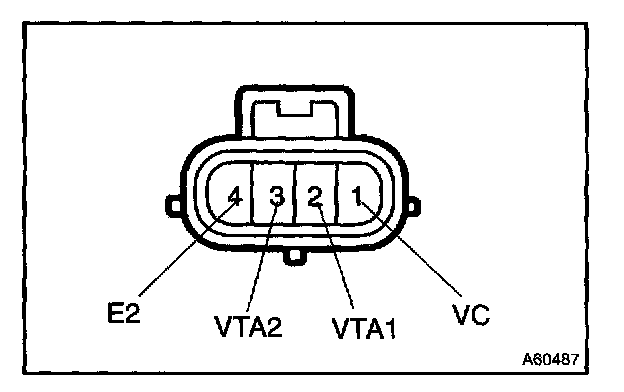

1. Using an ohmmeter, measure the resistance between terminals 1 (VC) and 4 (E2).

Resistance: 1.2 - 3.2 kOhms
