System Specifications

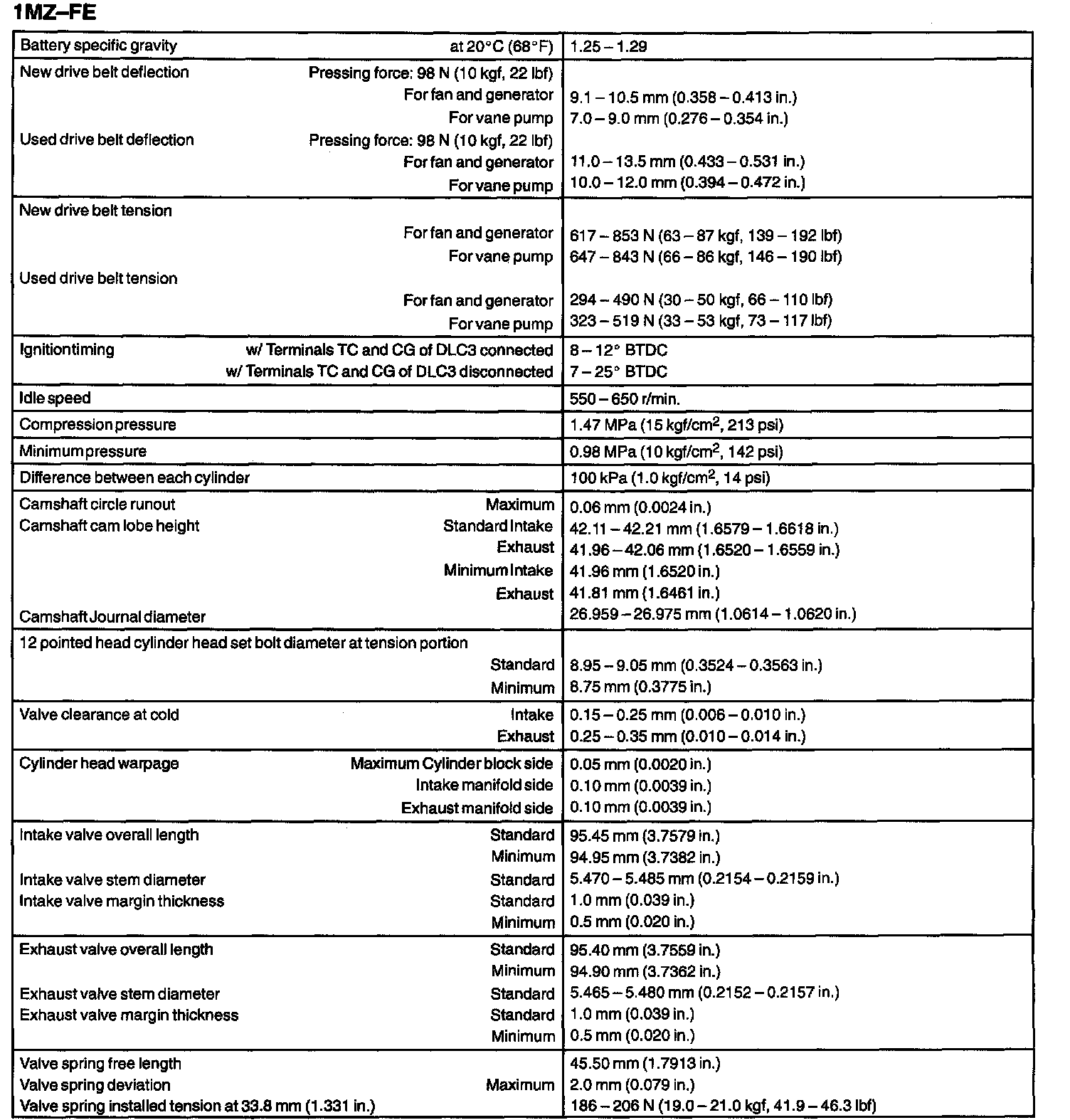

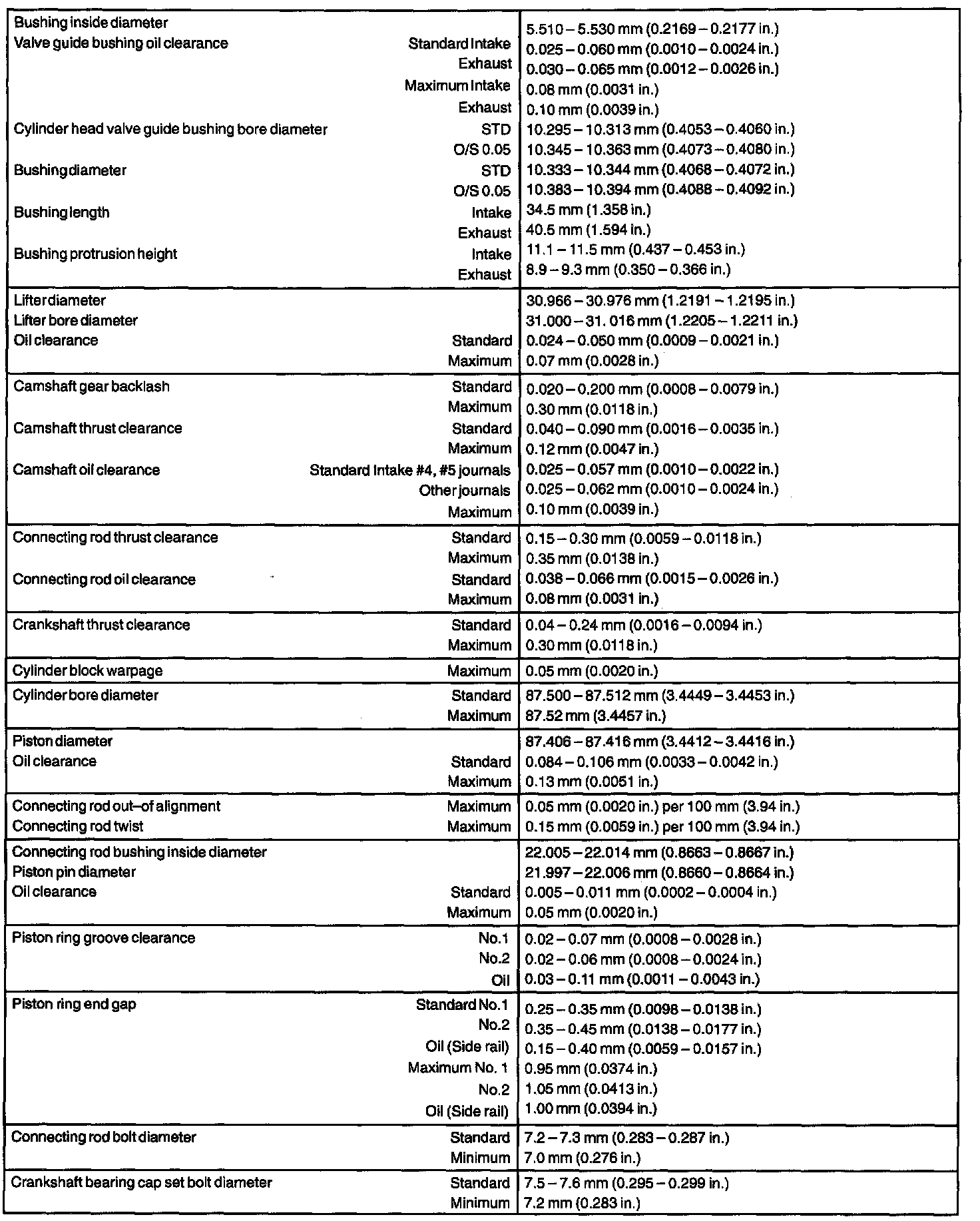

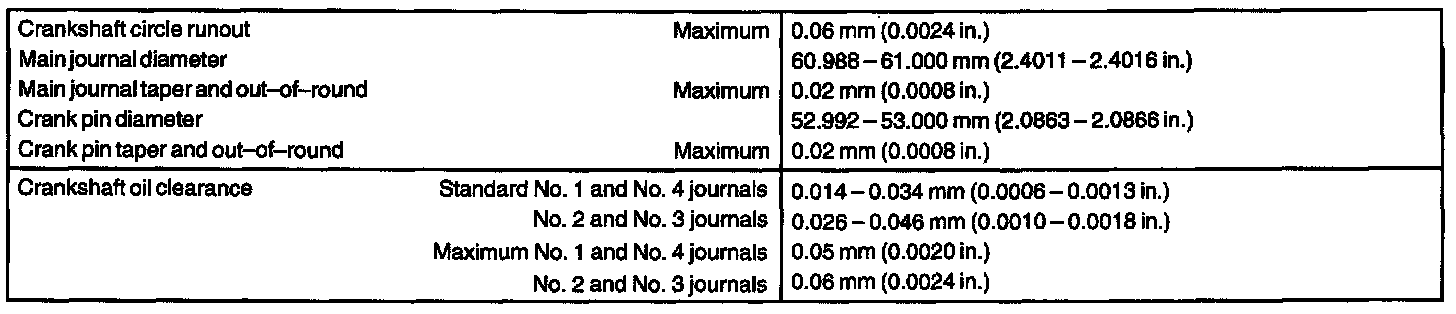

ENGINE MECHANICAL SERVICE DATA:




ENGINE MECHANICAL SERVICE DATA:




ENGINE MECHANICAL SERVICE DATA:

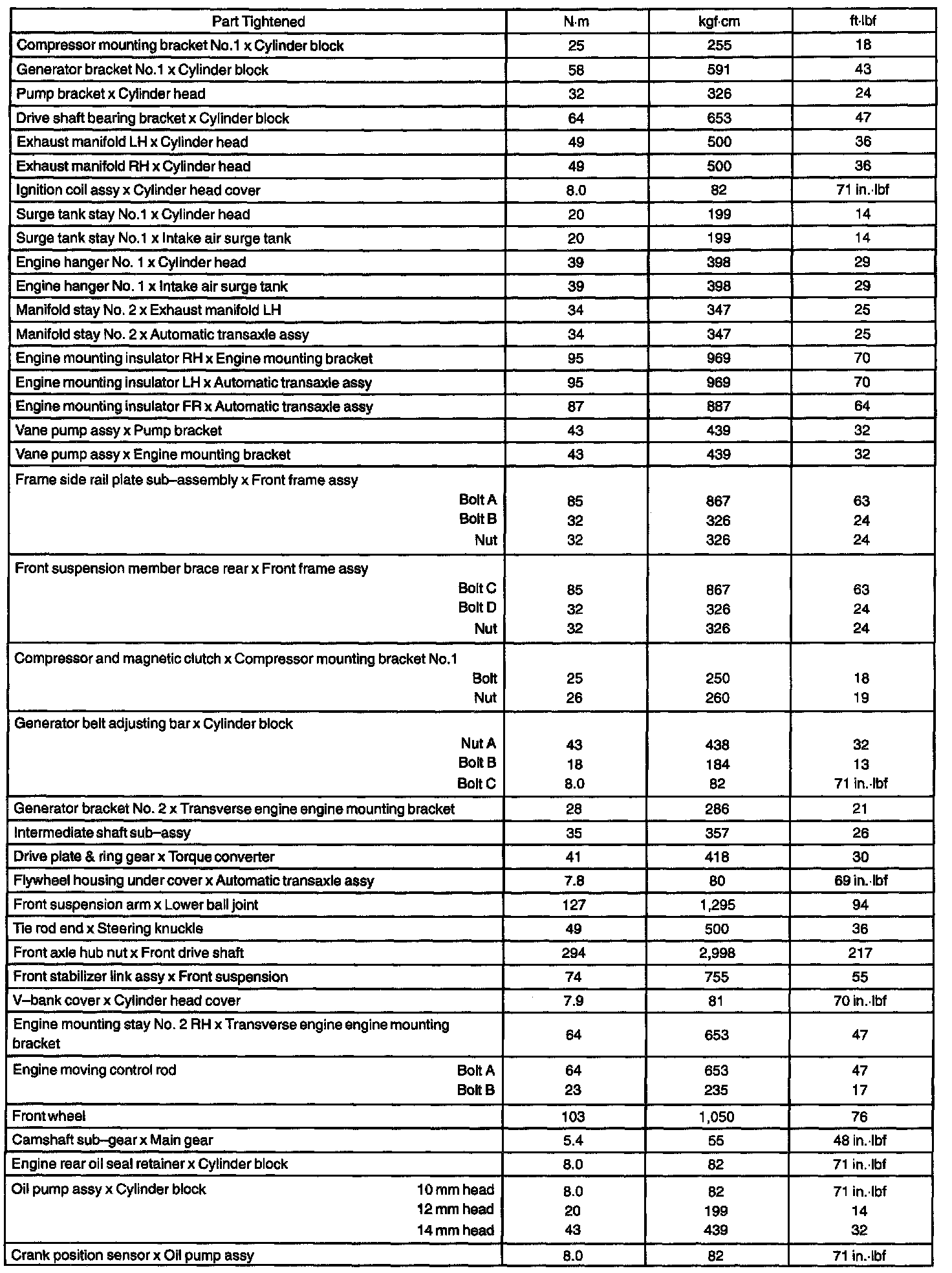

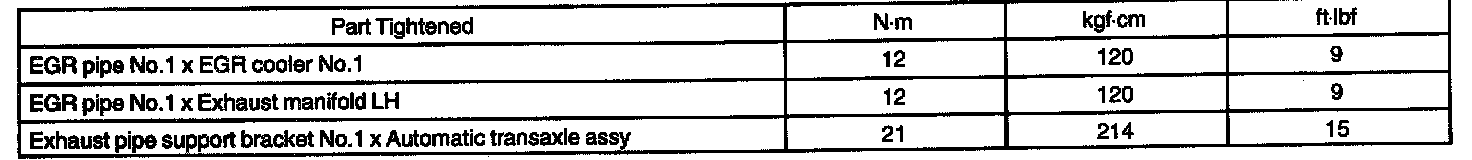

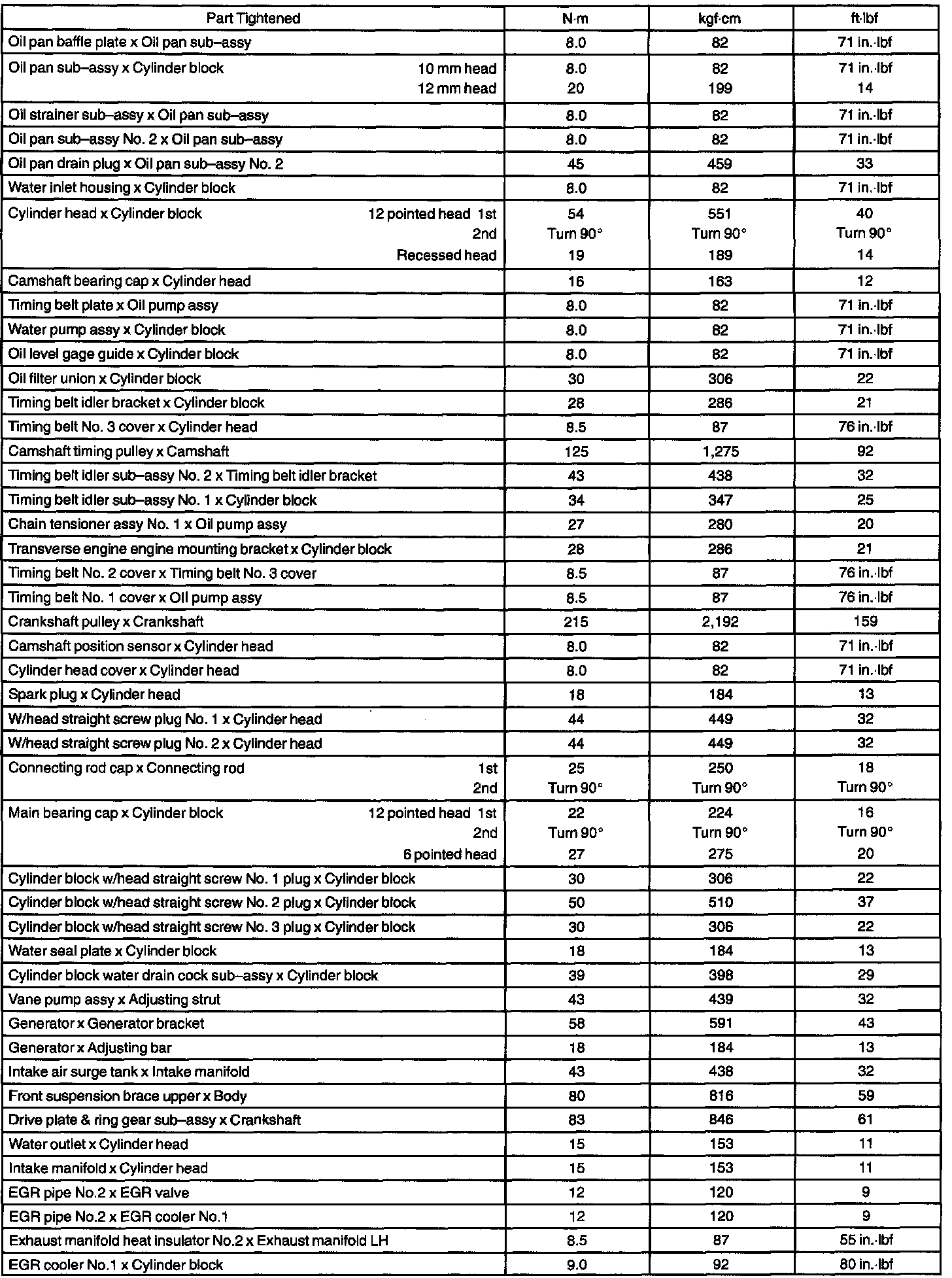

TORQUE SPECIFICATION:




TORQUE SPECIFICATION:




TORQUE SPECIFICATION:
