Power Steering

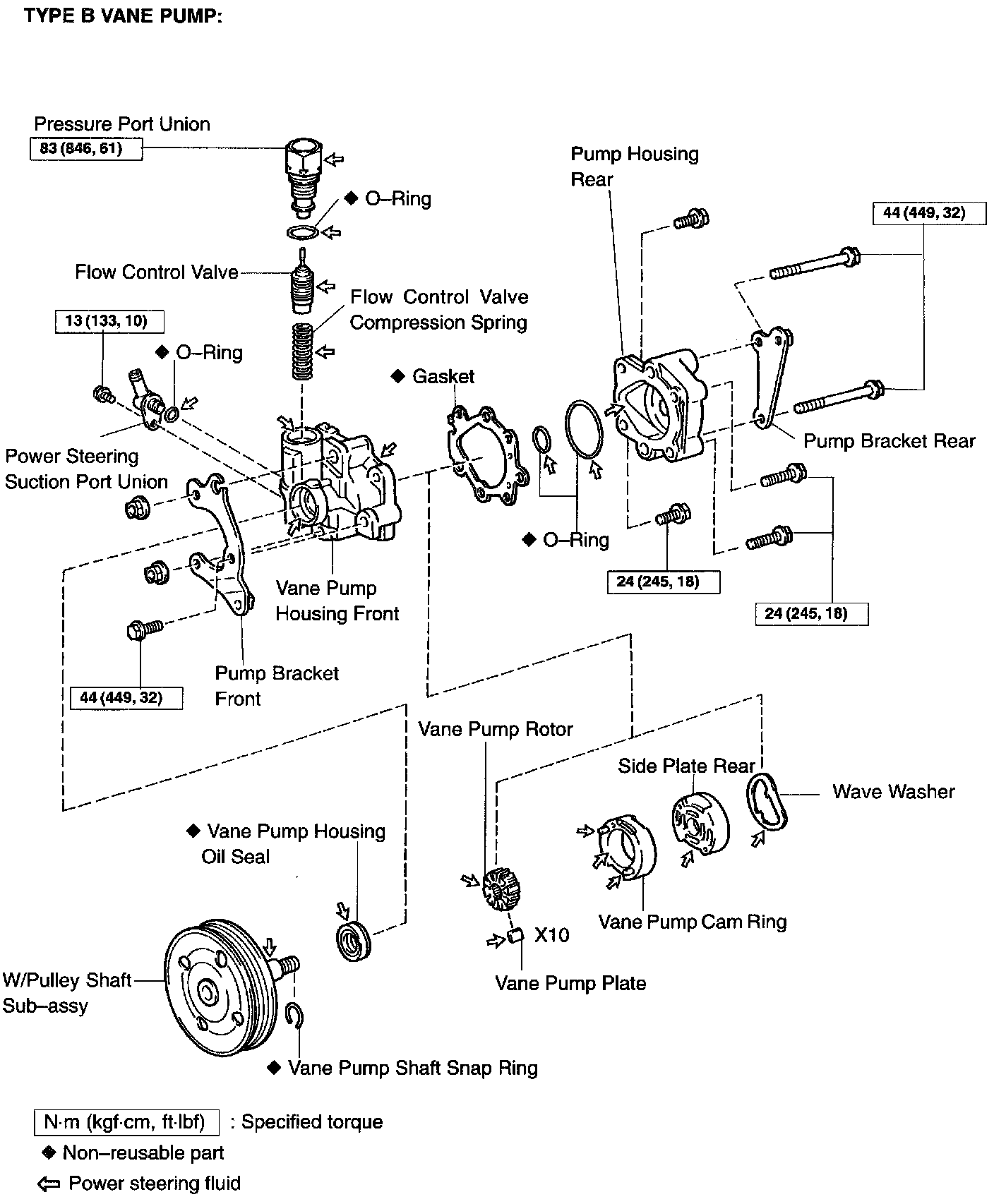

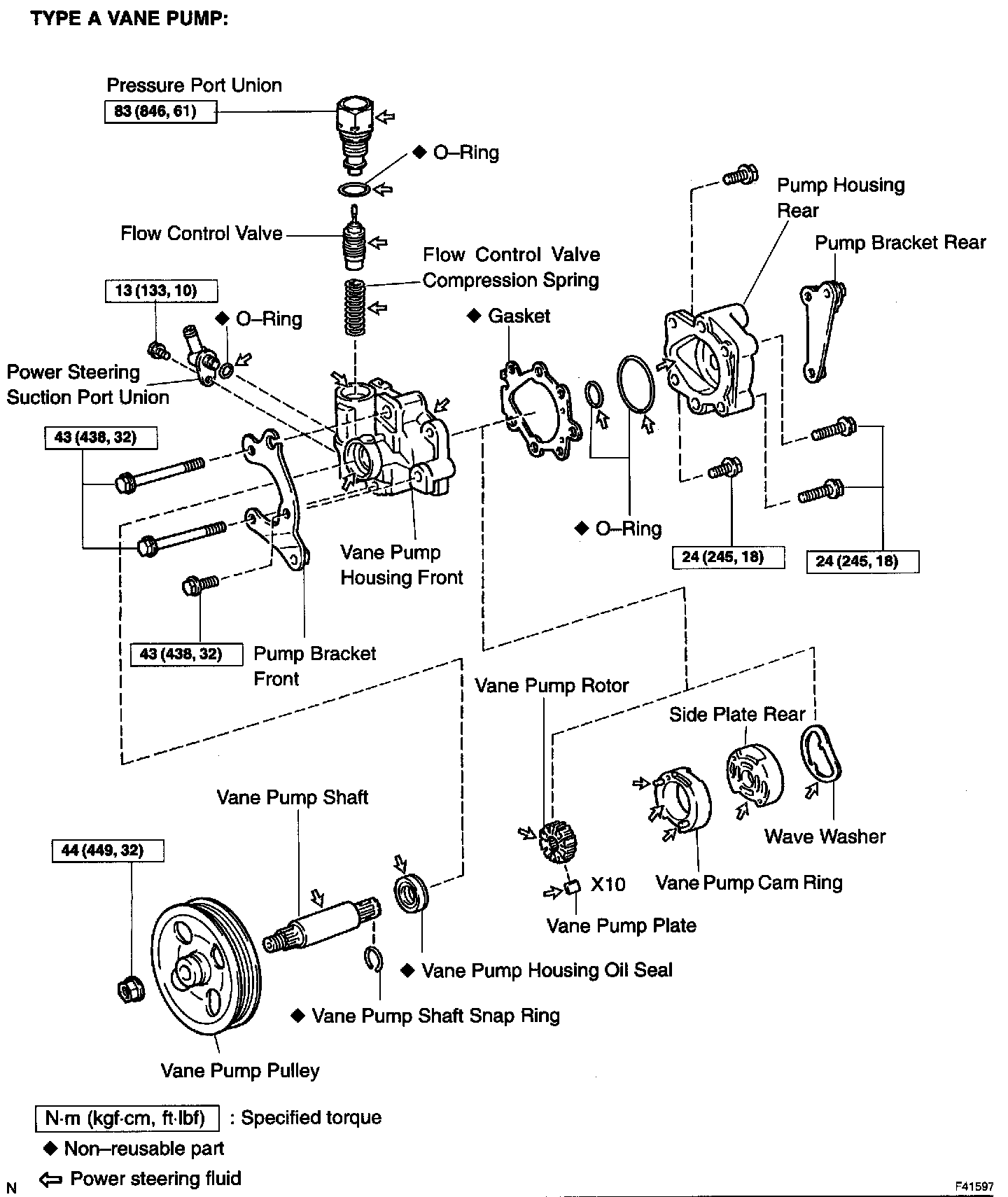

VANE PUMP ASSY





Part 1 of 2





Part 2 of 2

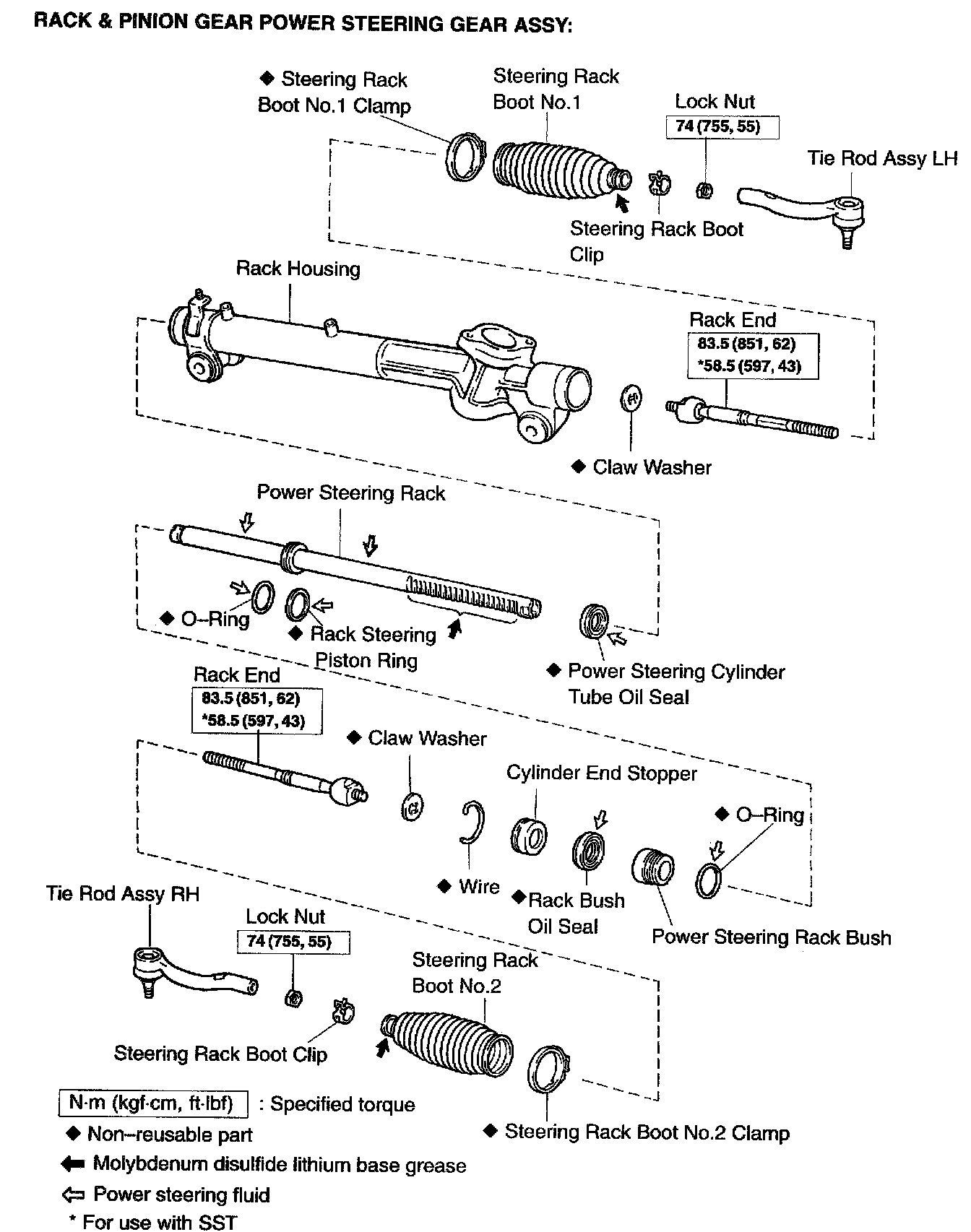

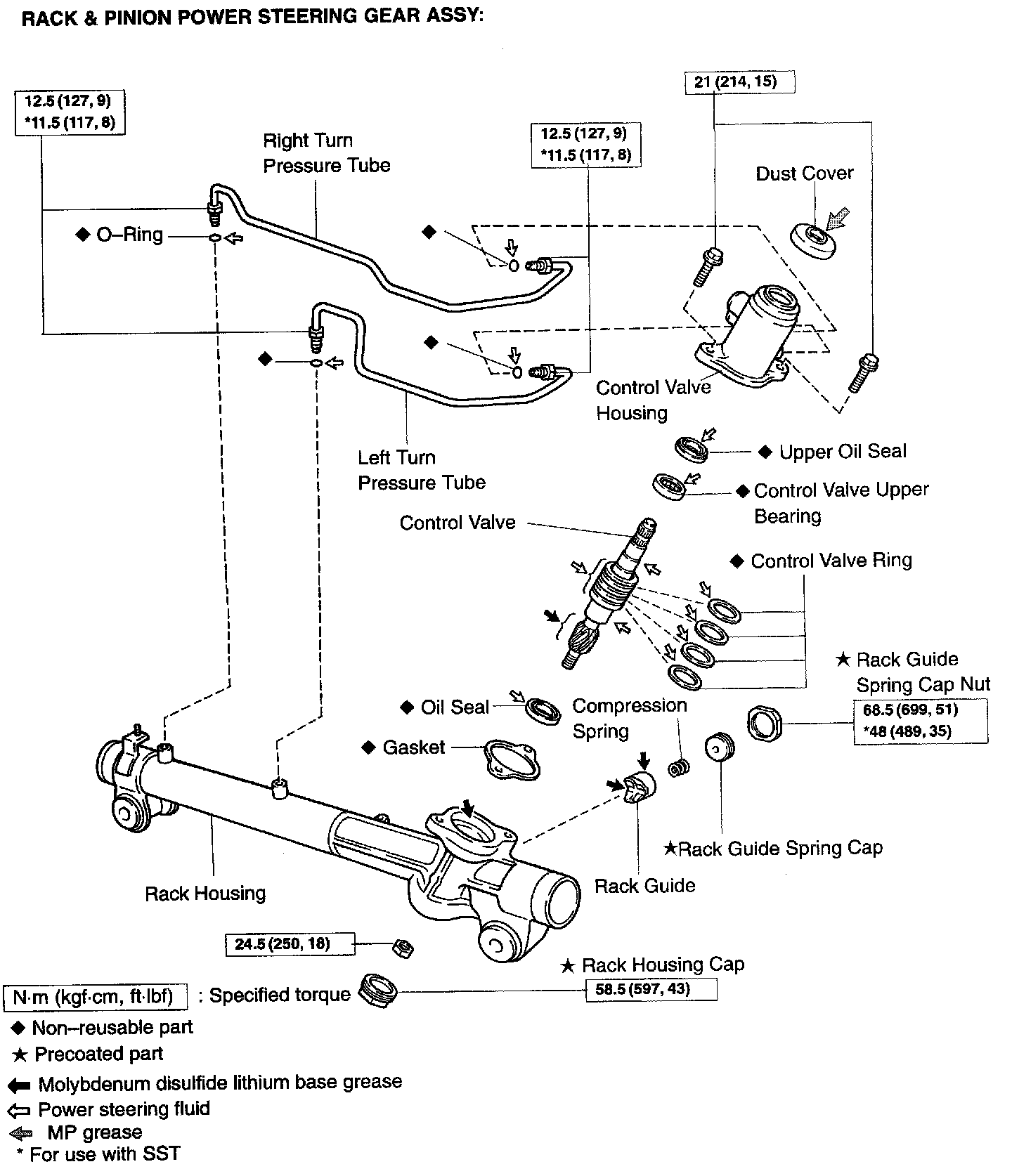

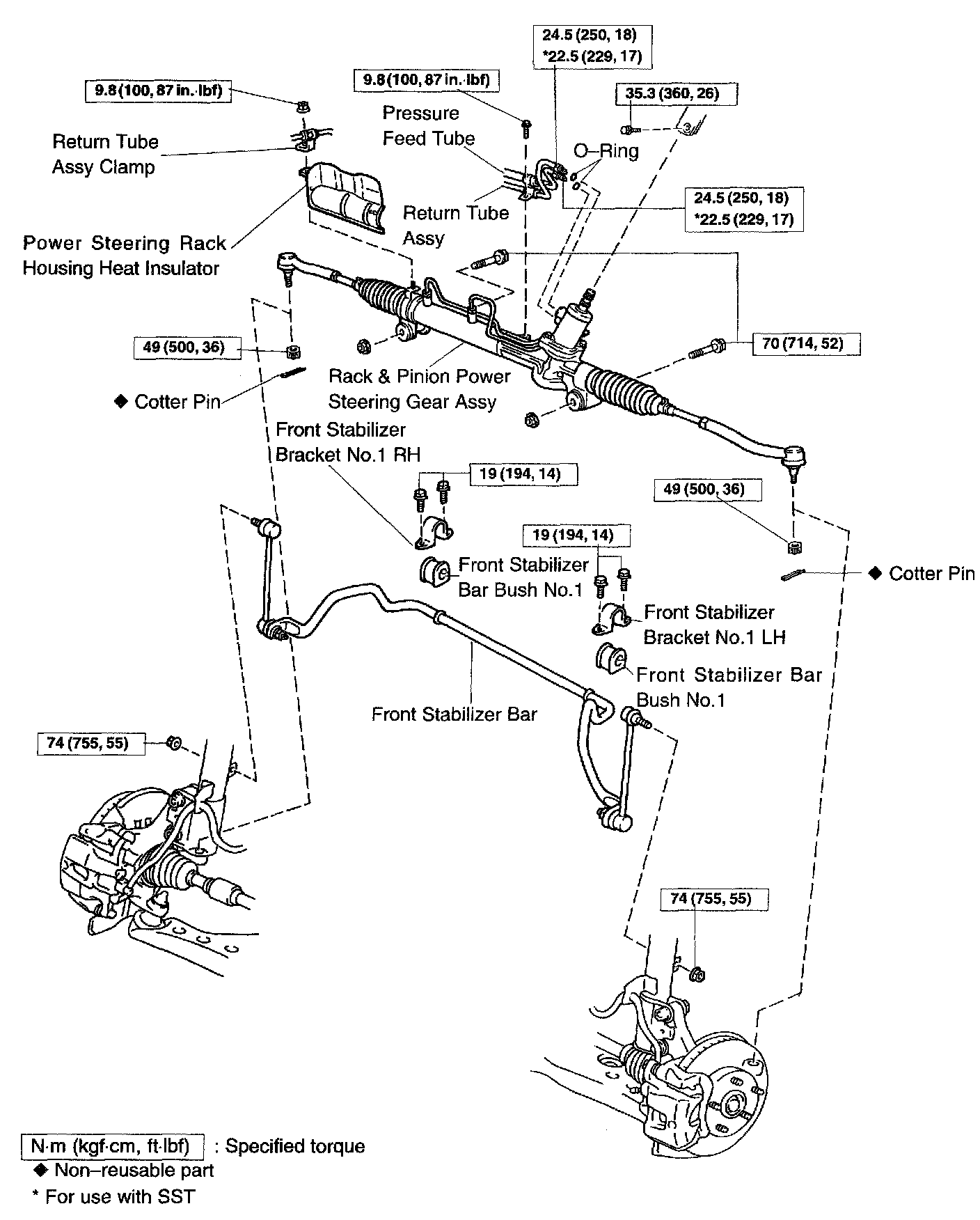

RACK & PINION POWER STEERING GEAR ASSY





Part 1 of 3





Part 2 of 3





Part 3 of 3
